Home > Lights & Lighting > LED Outdoor Lighting > LED Point Light > SJ-45-24V 45mm Point Light With 6pcs High Bright Smd5050 Led

SJ-45-24V 45mm Point Light With 6pcs High Bright Smd5050 Led

SJ-45-24V 45mm Point Light With 6pcs High Bright Smd5050 Led photo-1
US$ 1.3 - 1.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
epistar smd5050
Input Voltage(V):
24
Lamp Power:
1.44
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source epistar smd5050
Input Voltage(V) 24
Lamp Power 1.44
Color Temperature(CCT) Other, pixel
Working Temperature(℃) -30, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
IP Rating IP66
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / iPIXEL
Model Number SJ-45-24V

Specifications

1.6pcs smd5050 45mm
2.UCS2903IC
3.sd card control system and dmx madrix software
4.dc24v
5.t-1000s sd card controller

ucs1903 24v addressable led point light 45mm waterproof



description

RGB led pixel round module lights - 6 pcs SMD 5050 RGB 45mm pixel light

RGB Pixels are digitally-controllable lights you can set to any color, or animate

 Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

into a 45mm drill hole in any material up to 1.5mm/0.06" thick

They're typically used to make outdoor signs. Compared to our other  LED dots

The pixels are connected by a 3-conductor cable. Blue is +12VYellow is GroundGreen is Data

Data is shifted down from one pixel to the next so that you can easily

connect to  the strand or attach more onto the end.



 Specifications

Model NO.

SJ-45-24V

IC chip

UCS2903

Power Consumption

1.44W

Work Voltage

DC 24V

Beam Angle

120

LED Quantity

6 PCS SMD 5050

Color

Full color (ICRGB)

Dimension

45mm

Waterproof Grade

IP66

Work Temperature

-40-+60°C

Life-span

50,000H

Certificate

CE&RoHS

Warranty

2 years



 Control system:

1.wire signal:  DC+,CLK,GND

2.led controller: t-1000s sd card controller, t-200k,t-8000c, etc.

3.can work with DMX,Artnet,Arduino

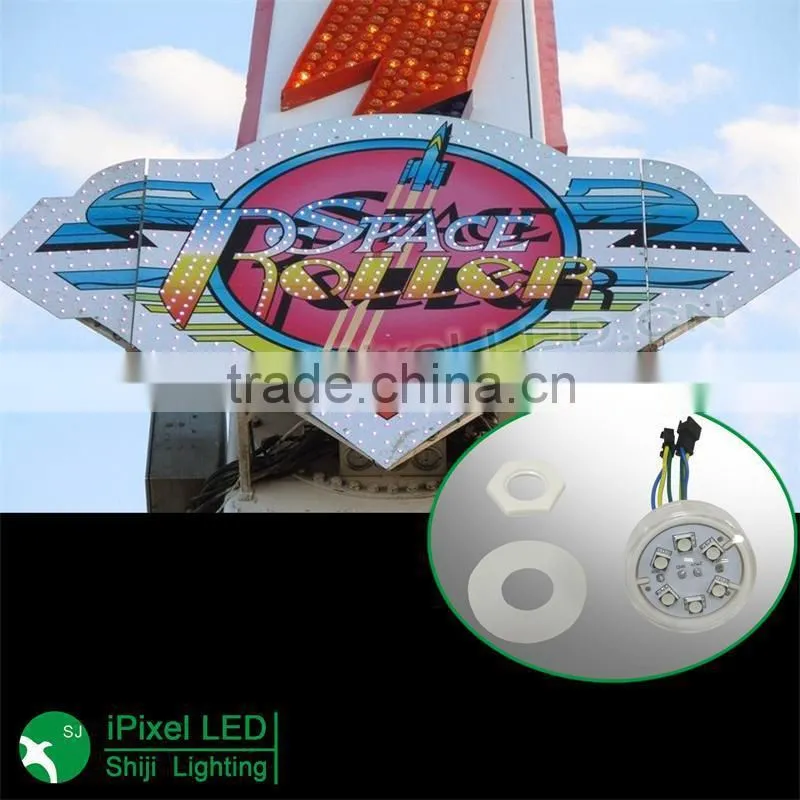

Application:

1. Channel Letters Back lighting;

2. Backlight of signage, channel letter, signs, light box

3. Advertisement signs Back lighting

4. Advertisement Light Boxes Back lighting

5. Decoration lights for bar, pub, club, disco



Picture details for 45mm pixel led:

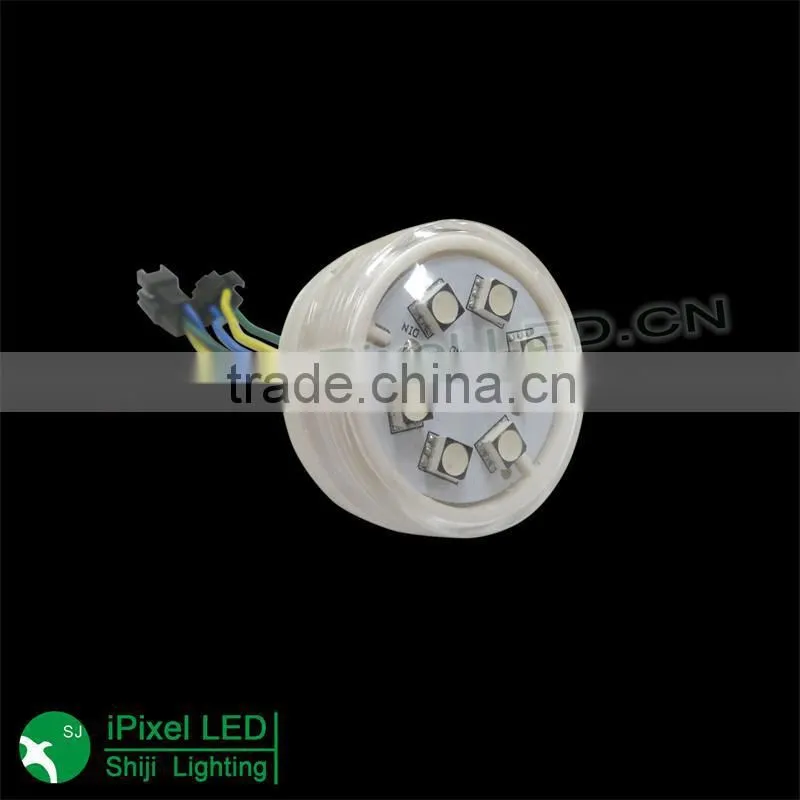

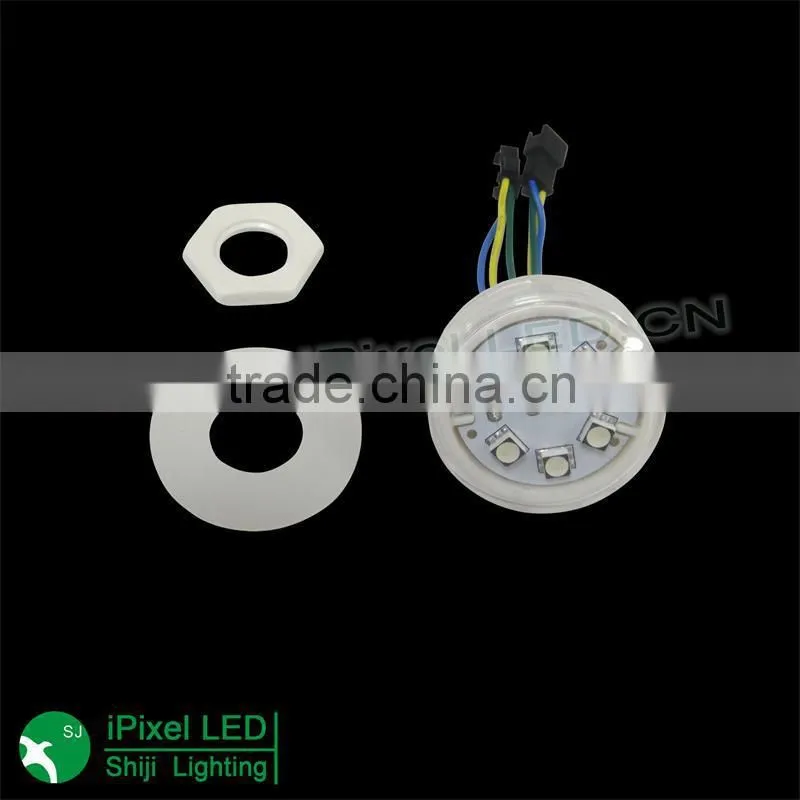

6pcs high light smd5050 in 45mm milky white cover waterproof ip66



SJ-45-24V 45mm point light with 6pcs high bright smd5050 led



SJ-45-24V 45mm point light with 6pcs high bright smd5050 led

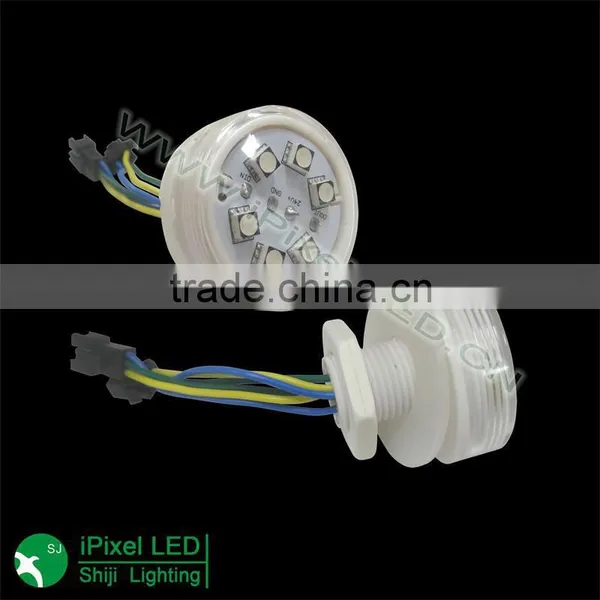

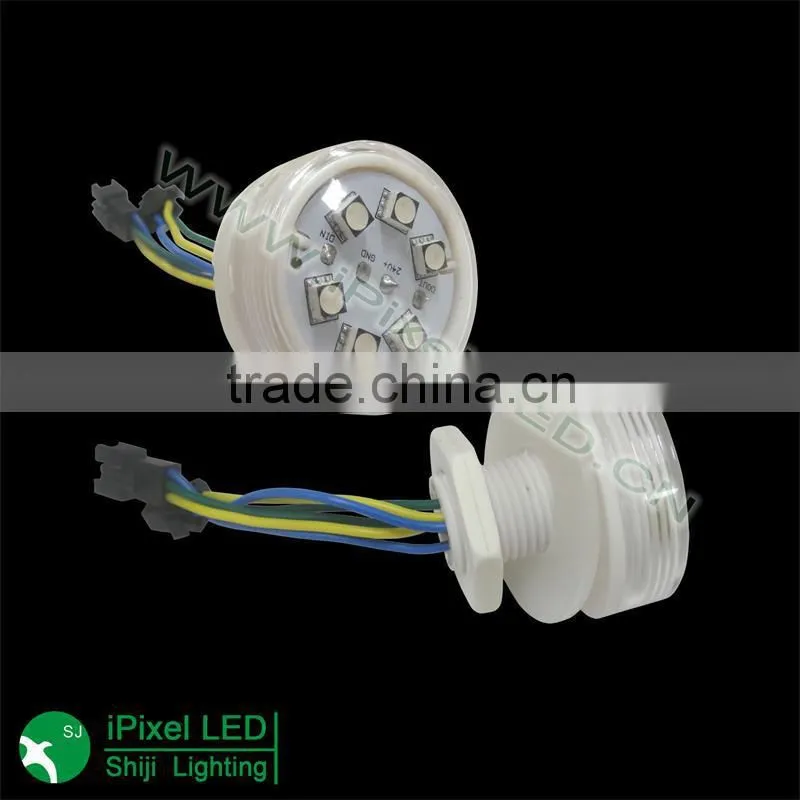

45mm pixel led with 2pcs 3pin connector of each led



SJ-45-24V 45mm point light with 6pcs high bright smd5050 led



SJ-45-24V 45mm point light with 6pcs high bright smd5050 led





Controller and effect:  DMX controller & decoder & SD controller & arduino controller,

 every pixel led with ucs1903 control, can change color individually.

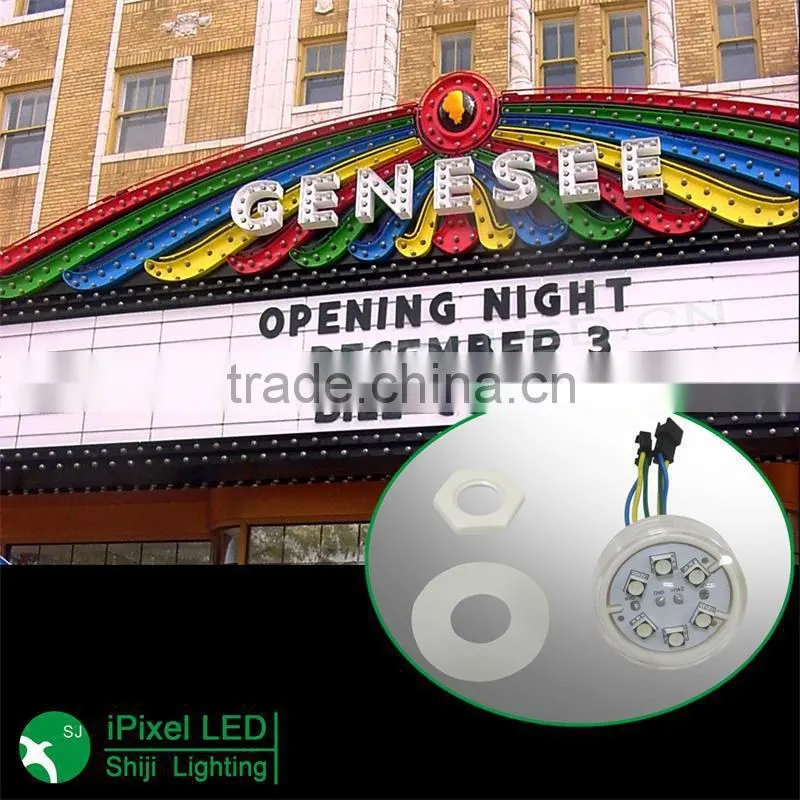

 Application:



 SJ-45-24V 45mm point light with 6pcs high bright smd5050 led



SJ-45-24V 45mm point light with 6pcs high bright smd5050 led
