Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > SJ-10048-DMX / SJ-DMX-100 Dmx512 Led Rigid Bar1m/pcs

SJ-10048-DMX / SJ-DMX-100 Dmx512 Led Rigid Bar1m/pcs

SJ-10048-DMX / SJ-DMX-100 Dmx512 Led Rigid Bar1m/pcs thumbnail-1
SJ-10048-DMX / SJ-DMX-100 Dmx512 Led Rigid Bar1m/pcs photo-1
US$ 15 - 30 MOQ: 10 Meters
Key Specifications
Get Latest Price
LED Light Source:
epistar smd5050
Type:
LED Bar Lights
Input Voltage(V):
12V / 24V
Contact Supplier Request Quote Chat Now
Shenzhen Shiji Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar smd5050
Type LED Bar Lights
Input Voltage(V) 12V / 24V
Lamp Power 11.52
Color Temperature(CCT) pixel
Working Temperature(℃) -30, 50
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name SJ / Ipixel
Model Number SJ-10048-DMX / SJ-DMX-100

Specifications

DMX IC rgb tube 48leds rigid bar
DMX led rigid bar
8pixels per meter,48pcs led/m
24V/11.52W
dmx, artnet, madrix control

SJ-10048-DMX  DMX IC rgb tube 48leds rigid bar



Description:

1.48LEDs/M, 8pcs dmx512 IC/M, dmx512 control led rigid bar.

2.3 chips SMD5050 RGB adapt as light source

3.IP65, IP66, IP67, IP68 Waterproof

4. DMX512 IC, 8pixels per meter (1IC control 6LEDs).

5.Aluminum case waterproof,

6.Compact size,

7.Aboundant color modes, up to thousands of color change modes can be put in the programs,

8.Work with LED DMX control system could get Jumping, fading, flashing, dimming mode,

9.Users can cut every 1 pixels, Continuous light connection, It can run 5 meters continuously

10.8pixels dmx512 ic black pcb aluminum housing led rigid light bar.



Features:

1.Good heat dissipation and high waterproof degree can be used to outdoors.

2.LED bars can be put row by row to build a screen to broadcast pictures, text and video.

3.High pixel, high brightness, and fast conversion speed.

4.Wired or wireless connected to controller or DMX console, to complete various effects.



Datasheet:



Product name

48LEDs 8Pixels DMX pixel LED Rigid Bar

Model no.

SJ-10048-DMX / SJ-DMX-100

Input voltage

DC12V/ 24V

Power consumption

11.52W

Led type

epistar SMD 5050 led lamp

Pixel

8pcs dmx512 IC pixels per meter

LED Qty

48 pcs smd5050 led per meter

Pixel pitch

12.5mm

Grayscale

256

Emitting color

full color, pixel, digital, magic, dream color, changeable.

Dimension

27*1000mm

Lifespan

50000Hrs

Material

Aluminum alloy, copper PCB

Working temperature

-40 - 60degree centigrade

Beam angle

140degree

IP degree

IP65, IP66, IP67, IP68

Certificate

CE & RoHS

Brand name

SJ/ iPixel

Control system

DMX console, Madrix, DMX controller, Artnet





APPLICATION:



lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.



Picture details:

SJ-10048-DMX / SJ-DMX-100 dmx512 led rigid bar1m/pcs

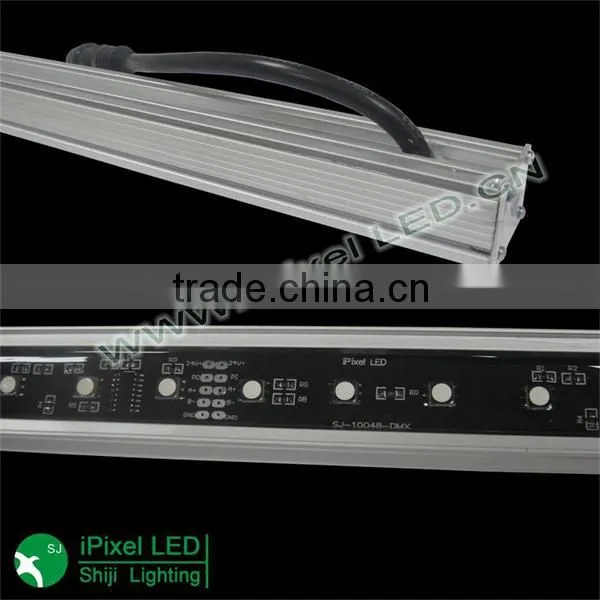

Aluminum case and black PCB, wires comes out from back. waterproof IP65,IP66,IP67.



SJ-10048-DMX / SJ-DMX-100 dmx512 led rigid bar1m/pcs

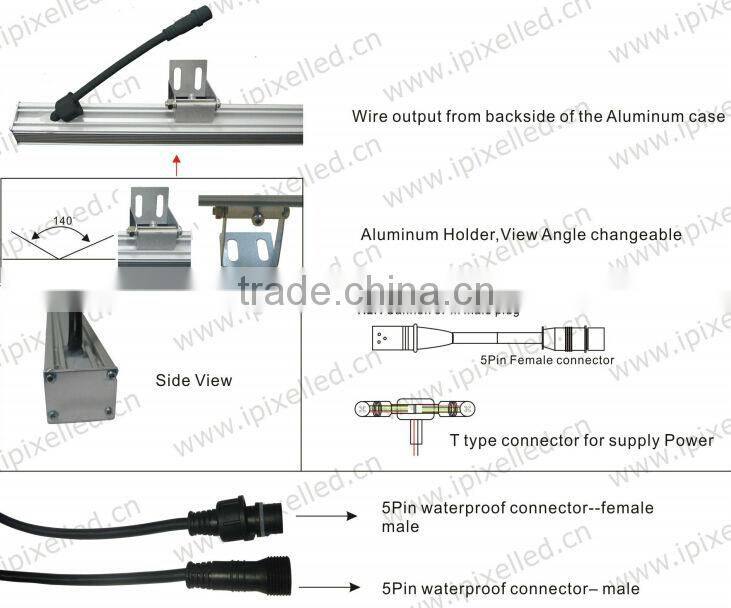

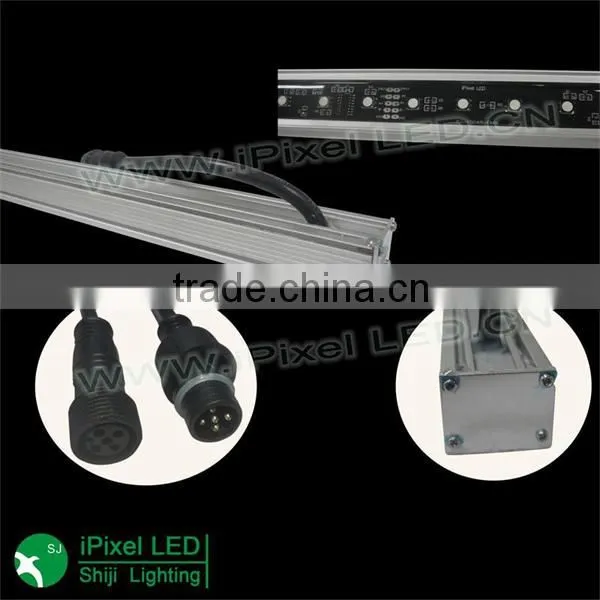

Install and mounting: 2 male and female 5pin waterproof connector on each end side,

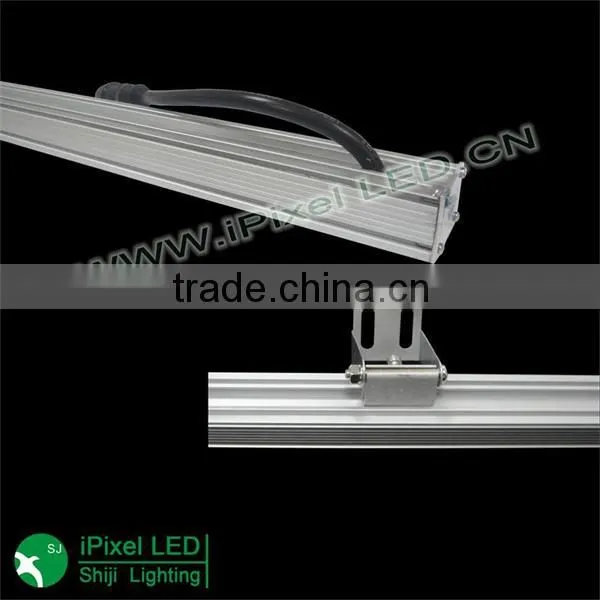

use a T-connector to connect bars, and the metal holder for mounting onto the wall.



SJ-10048-DMX / SJ-DMX-100 dmx512 led rigid bar1m/pcs



SJ-10048-DMX / SJ-DMX-100 dmx512 led rigid bar1m/pcs



Control and effect:  DMX controller & decoder & SD controller & arduino controller,

Each led change color individually and pixel addressable full color.

The DMX bar Also need a coder writer like T-1000D or T-8000D to address the pixels.



SJ-10048-DMX / SJ-DMX-100 dmx512 led rigid bar1m/pcs

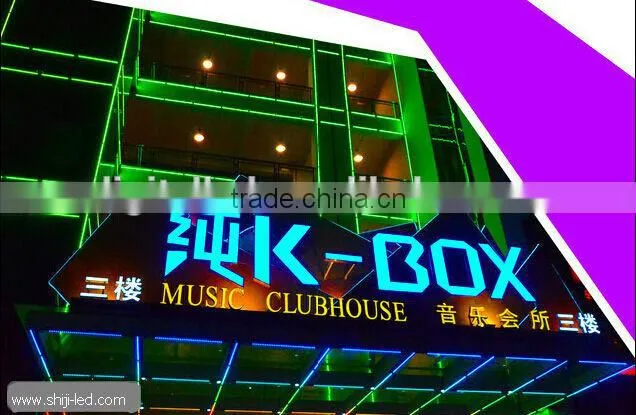

Application: Architectural decorative lighting, canopy and bridge edge lighting.
