Help CenterSJ-359ICRGB 35mm 9pcs Smd5050 Point Led
Related Products
-
26mm 35mm 45mm Pixel Led Point Dot LightUS$ 0.5 - 2MOQ: 50 Pieces -
SJ-10048-8806 Lpd8806 Addressable Led Flex StripUS$ 10 - 15MOQ: 10 Meters
-
SJ-3535-2801/ SJ-7515-2801 Metal Case Square 4 Led ModuleUS$ 0.5 - 0.8MOQ: 50 Pieces
-
SJ-45-24V 45mm Point Light With 6pcs High Bright Smd5050 LedUS$ 1.3 - 1.5MOQ: 100 Pieces
-
SJ-18-50/ SJ-38-20 Auto Color Change Rgb Led Ball StringUS$ 4 - 6.5MOQ: 500 Sets
Specifications
12v 9pcs SMD5050 RGB pixel LED9 leds 35mm pixel light with ucs 2903 IC
SD card & Ledwalker & DMX
CE & RoHS
2 years

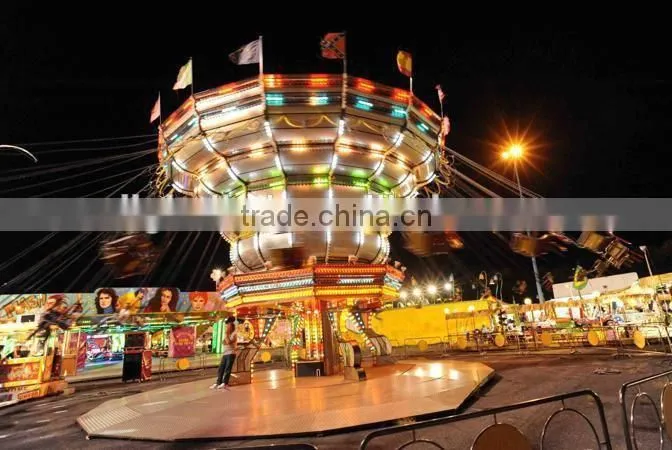

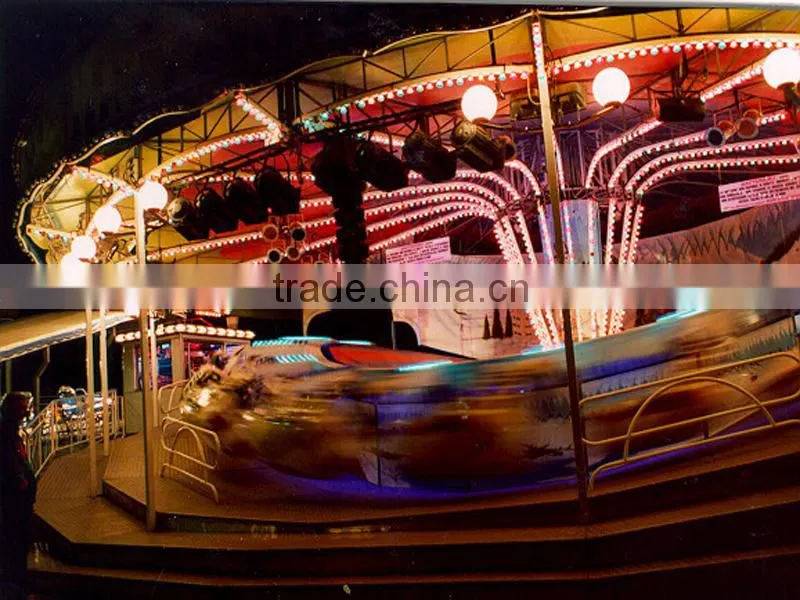

35mm led lights rgb used for funfair lunapark
Description:
12v / 24v 9 LEDs led Pixel Point RGB module lights -9 pcs SMD 5050 RGB
RGB Pixels are digitally-controllable lights you can set to any color, or animate
Each RGB camaleon led LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 35mm drill hole in any material up to 1.5mm/0.06" thick
They're typically used to make outdoor signs. Compared to our other LED dots
The pixels are connected by a 3-conductor cable. Blue is +12V / 24V, Yellow is GND, Green is DATA
Data is shifted down from one pixel to the next so that you can easily
connect to the strand or attach more onto the end.
Feature:
SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP66, Water-proof protection
Easy installation (punching 35mm hole on metal panel)
new product, 9pcs smd5050 35mm led pixel .
Specification:
Model NO. |
SJ-359ICRGB |
IC chip |
UCS2903 |
Power Consumption |
2.16W |
Work Voltage |
DC 12V / 24V |
Beam Angle |
≥120 |
LED Quantity |
9 PCS SMD 5050 |
Color |
Full color (ICRGB) |
Dimension |
35*40*43mm |
Waterproof Grade |
IP66 |
Work Temperature |
-40-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |

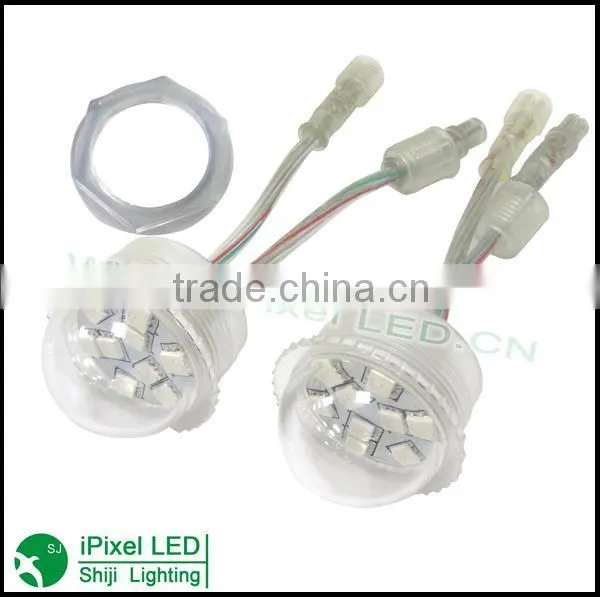

Picture: 9pcs smd5050 35mm pixel led waterproof IP66 used for indoor outdoor

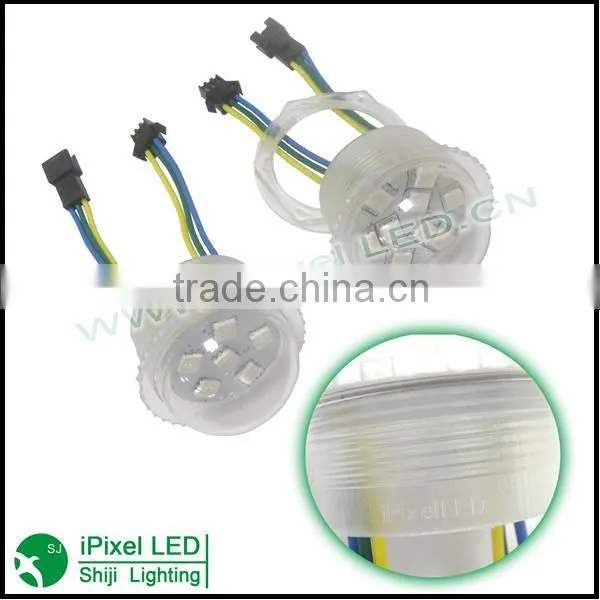

waterproof 35mm pixel led with male and female 3 pin connectors on each led
Controller: DMX controller & decoder & SD controller & arduino controller.
Effect: every pixel led with ucs2903 control, can change color individually.
Application:
Package: 20pcs/string 8cm lead in cable wire, 80pcs/An-ti static bag 640pcs/carton.
