Help CenterSJ-3535-2801/ SJ-7515-2801 Metal Case Square 4 Led Module
Related Products
-
SJ-45-24V 45mm Point Light With 6pcs High Bright Smd5050 LedUS$ 1.3 - 1.5MOQ: 100 Pieces -
SJ-18-50/ SJ-38-20 Auto Color Change Rgb Led Ball StringUS$ 4 - 6.5MOQ: 500 Sets
-
SJ-50-ICRGB 50mm Pixel LedUS$ 1 - 1.5MOQ: 50 Pieces
-
SJ-10048-DMX / SJ-DMX-100 Dmx512 Led Rigid Bar1m/pcsUS$ 15 - 30MOQ: 10 Meters
-
SJ-219 26mm Pixel LedUS$ 0.5 - 1MOQ: 50 Pieces
Specifications
Digital square 12V 2801 RGB LED Pixel waterproof module1.DC12V.0.96W/pcs
2.WS2801 IC
3.4pcs SMD5050
4.Waterproof IP66
Digital square 12V 2801 RGB LED Pixel waterproof module
Description
Its can be individually controlled, each containing 4 LEDs. The WS2801 even allows you to set the PWM Level for each color with an 8 Bit resolution. Each module has its own WS2801 IC, 4 LEDs and current limiting resistors
We also supply DMX IC type about this 4 leds square led module.
Specification:
Lighting sources:SMD5050
Constant current design
PCB output voltage: 12V DC
LED quantity:4pieces
IC chip:WS2801 IC
Color: Full color
IP66 Waterproof
Working/storage temperature: -20 to 40°C
Packing:20pieces per strand
Wire distance:8cm or customized
Notes:
Please make LED drivers compatible with Led pixel module
To use LED pixel module to make sure the wire connection to the controller
Before use, first check the power supply used in compliance with of the power requirements
Each string ask for independent power supply, not to use of multi-volume series us
Datasheet:
| Item Type | RGB Led pixel module |
| Model No. | SJ-3535ICRGB |
| IC Chip | WS2801 |
| IP Rate | IP66 |
| Size | 35*35*4mm |
| Controller | SD,DMX512,Arduino |
| Packing | 20pcs/string or customized |
Applications:
lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Project on Youtube:
Picture details:
Waterproof 4pcs rgb smd5050 pixel module with metal case, 20pcs/string
2 male and famale connectors on each end of the string.
Controller and effect: DMX controller & decoder & SD controller & arduino controller,
every pixel led with ucs1903 control, can change color individually.

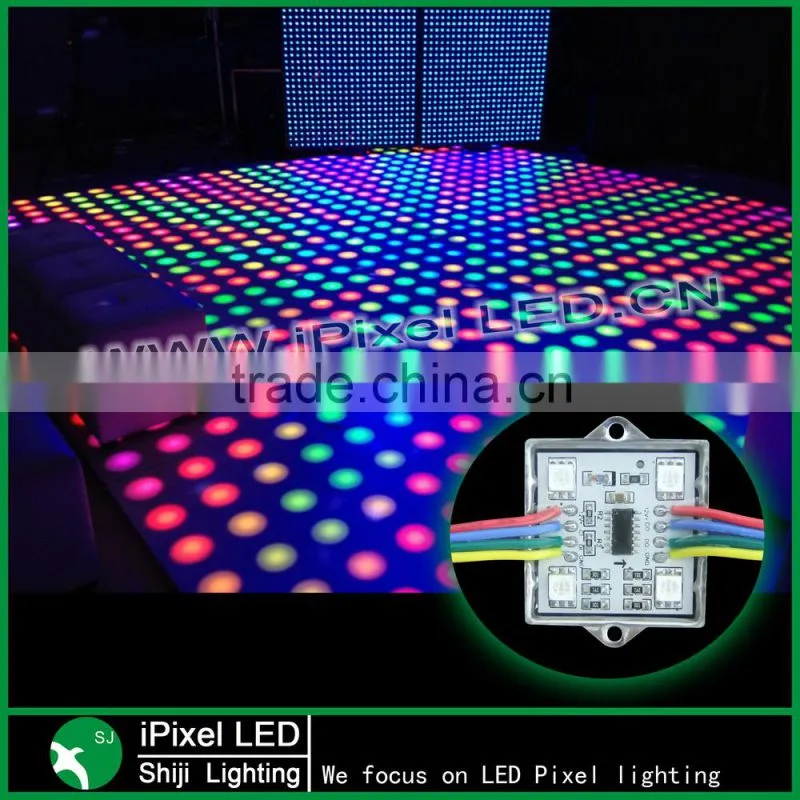

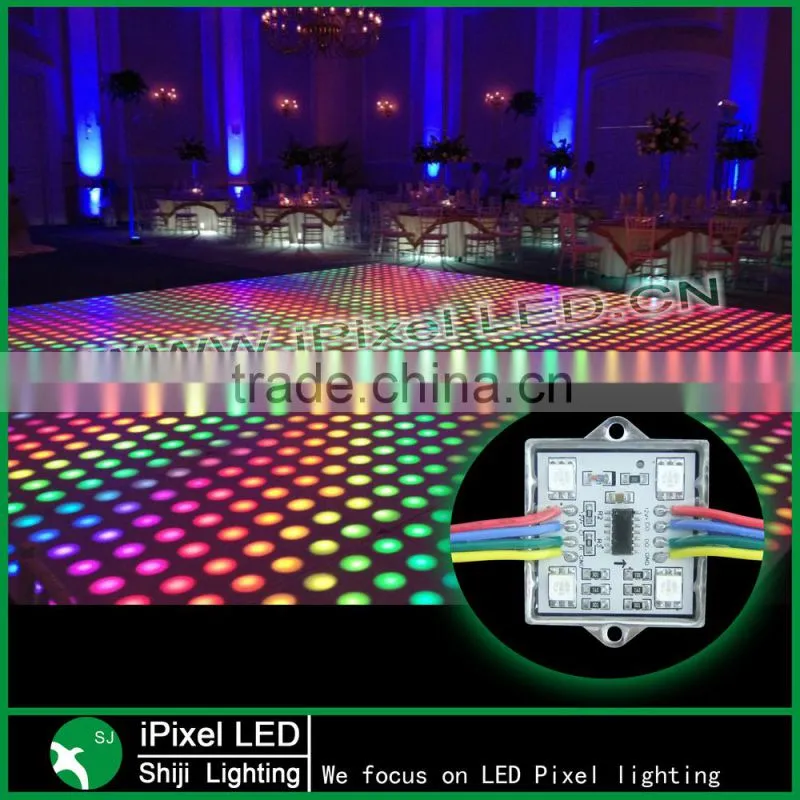

Application: dance floor, back light, cabinet lights, edge light etc.
