2014 Rgb Led Pixel Lights in China
US$ 0.1 - 1.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Input Voltage(V):
12
Lamp Power:
0.72
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Rgb Ucs1903 Light For Led Video WallUS$ 0.1 - 1.5MOQ: 1 Piece -
30mm WS2801 LED Pixel Light DC12V (RGB)US$ 0.1 - 1.5MOQ: 1 Piece
-
30mm LED Pixel Light DC12V (RGB)US$ 0.1 - 1.5MOQ: 1 Piece
-
Digital 45mm Dc5v Rgb Point Light WS2801 for Decorative ProjectUS$ 0.1 - 1.5MOQ: 1 Piece
-
Waterproof 45mm Rgb Dot Light Pixel for DecorationUS$ 0.1 - 1.5MOQ: 1 Piece
LED Light Source
Epistar
Input Voltage(V)
12
Lamp Power
0.72
Lamp Luminous Flux(lm)
30
Lamp Luminous Efficiency(lm/w)
40
Color Temperature(CCT)
Other, RGB
Working Temperature(℃)
-30, 40
Working Lifetime(Hour)
50000
Lamp Body Material
PC
IP Rating
IP65
Certification
CE
Emitting Color
Changeable
Place of Origin
Guangdong, China
Brand Name
iPixelLED
Model Number
SJ-30ICRGB
Specifications
2014 rgb led pixel lights in chinamilky Case
easy connection with 4Pin JST SM connector
programable
2014 rgb led pixel lights in china
Features
RGB Pixels are digitally-controllable lights (addressable)
you can set to any color, or animate by microcontroller
There are four flanges molded in so that you can 'push' them
into a 32mm drill hole in any material up to 1.5mm/0.06" thick
but it have to put some silicon glue on the back side of the ears makes it more strong
you may also install it on the wall and hold it by screw
They're typically used to make outdoor signs
The pixels are 20pcs per strand connected by 4Pin wire :
Data is shifted down from one pixel to the next so that you can easily
connect to the strand or attach more onto the end
(we also could do custom cable length )
| P/N | Size/mm | LED | IC/Qty | LED /Module | Luminous(MCD) | View Angle | Voltage | Wattage | IP Rate |
| SJ-30ICRGB | 30 | RGB5050 | WS2801 | 3 |
R:2100,G:5100 B:1800 |
140 | DC12V | 0.72W/PCS | 65 |
20 LED per string there are a pair of 4Pin JST SM connector
and each of them on end string,the connector is non-waterproof
there are 2 version different Body,frosted or Clear
and each of them on end string,the connector is non-waterproof
there are 2 version different Body,frosted or Clear

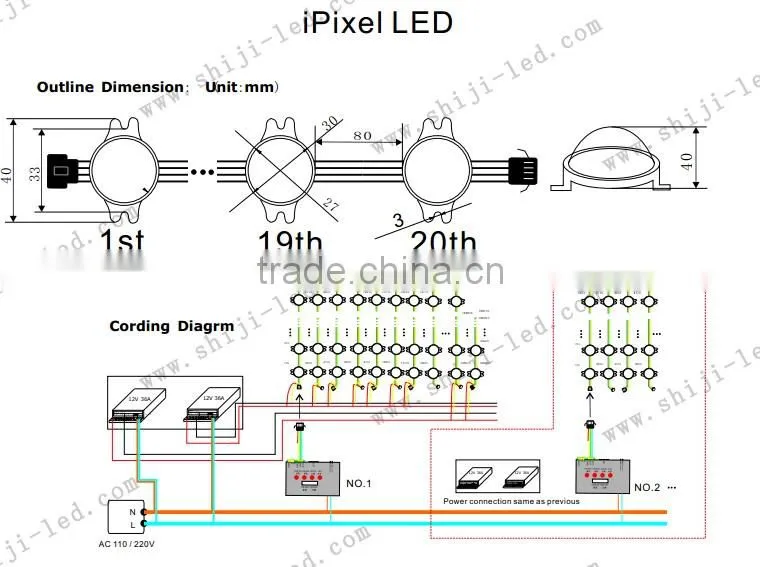

Size Drawing
