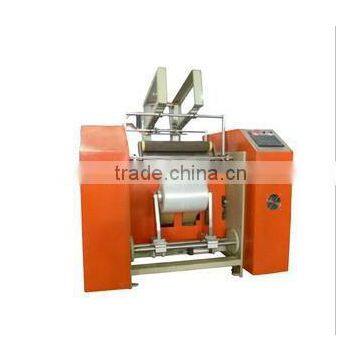

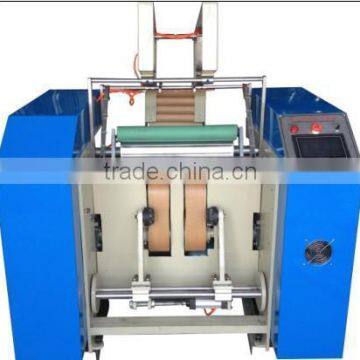

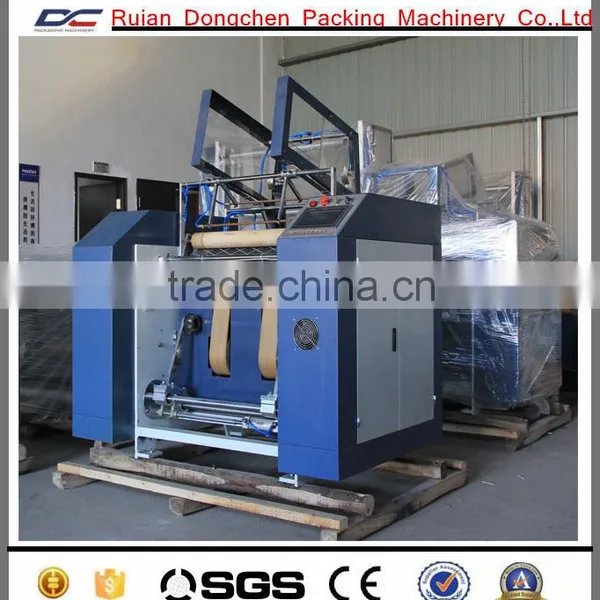

Help CenterFull Automatic Plastic Film Stretch Film Rewinding Machine
Related Products
-
Semi Automatic PVC Stretch Cling Film Rewinding MachineUS$ 5,000 - 10,000MOQ: 1 Set -
Horizontal Type Slitting Machine or Kraft Paper Slitting Machine Baking Paper Slitting MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
PP Plastic Film Slitting Machine PVC Slitting Rewinding Machine Wenzhou PriceUS$ 1,000 - 10,000MOQ: 1 Set
-
High Quality Silicon Paper Slitting Machine or Kraft Paper Slitting Machine Baking Paper Slitting MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
Horizontale Slitting Machine for Sale of Plastic Slitting Machine and BOPP Slitting MachineUS$ 1,000 - 20,000MOQ: 1 Set
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don’t send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
Control from material:
•All bolts and screws are of SS material
•Mild steel ERW rectangular tubes or sheets 1.2-2.0mm thickness, meet EU standard
•Plastic material is of ABS only. Durable and Sturdy. At least 10 years lifetime. Different colors for options.
Control from inspection:
•Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team
For machine services:
1.Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.We can train your staff to use new equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity in the condition of salary 80USD per day,also including the charge for transportation,accomodation,etc.
Contacted information:
Skype shiner1987
whatsApp/ viber 0086 13736900583
Specifications
1.Fully automatic
2.easy-operating
3.safe and energy-saving
4.stable rewinding
omth and evenness
6.Divide the big roll into small ones
7.Steady Stretch Film Rewinder
8.Rectify the mismatch layers
Features:
1 Automation: this is auto machine. It can count the meter automatically.
2 Multi-function: the machine combine rewind and slitter together.
3 The machine is easy to operate, flexible to adjust, small noise, is a ideal cost performance one.
4 The unit adopts flat bell transmission leak, reduce the production of secondary membrane over-stretching.
5 The Unit can couter the meter and stop at right time automatically.
6 The unit can rewind / slitter stretch film and cling film.
|
AXAU-500 |
Width of finished product(mm) |
200-500 |
Thickness |
0.15-0.05mm |
|
Power of motor(kw) |
2.2KW |
CONTROL BY INVETER |
2.2KW |
Liner speed of machinery(m/min) |
500 |
Roll Laying Mode(mm) |
(By hand) |
Diameter of parent roll(max)(mm) |
400 |
Width of parent roll(max)(mm) |
200-500 |
Core specification of parent roll |
3”2’’ |
Width of sub-roll(max)(mm) |
200-500 |
Diameter of sub-roll(max)(mm) |
90-250 |
Core specification of sub-roll |
3”2’’ |
Overall dimensions(L×W×H)(m) |
1.4×1.0×1.1 |
Weight(kg) |
500 |
CONTROL BY PLC brand china hollysys |
|
MATCH DOUCH SCREEN WITH METER COUNTER |
|
For free spare parts |
|
|
heating wire 5 m switch 2pcs contactor 2 pcs Indicator 1pc Bearing 4 pcs |
|
CAN BE ADJUST SPEED |
|
paper cores fits the container |
200PCS |
JUMBO ROLLER MAX WEIGHT |
75KG |
