Economic Type plasric film jumbo roll slitting machine
Uses:
The machine is suitable for slitting BOPP, PET, CPP, CPE, PVC, PE aluminum foil, paper and other roll materials in the production process of the material according to the different needs trimming, slitting.
Performance and features:
This machine is a vertical slitting machine, the independent total control screen, the operation more flexible, convenient, automatic correction of unwinding, photoelectric eye is suitable for tracking the edge and color of transparent material, and rewinding tension magnetic powder brake control, winding adopts magnetic clutch control , has a the edge material air delivery or take-up device (select when ordering), automatic meter material moving length, winding pressure roller so that the membrane formation, double gas rose to close reel.
Technical parameters:
| models | GX-L700A | GX-L1100A | GX-L1300A |
| points cut sheet width | 700 mm | 1100 mm | 1300 mm |
| points the maximum diameter of the cut sheet | φ600mm | φ600mm | φ600mm |
| slitting the coil width | 30-600 mm | 30-1000 mm | 30-1200 mm |
| slitting speed | 5-160m/min | 5-160m/min | 5-160m/min |
| corrective error | <± 0.5 | <± 0.5 | <± 0.5 |
| total power | 2.9KW | 3.7KW | 3.7KW |
| whole weight | 1200 kg | 1500 kg | 1800 kg |
| Dimensions | 2000*1470*1400mm | 2400*1470*1400mm | 2600*1470*1400mm |

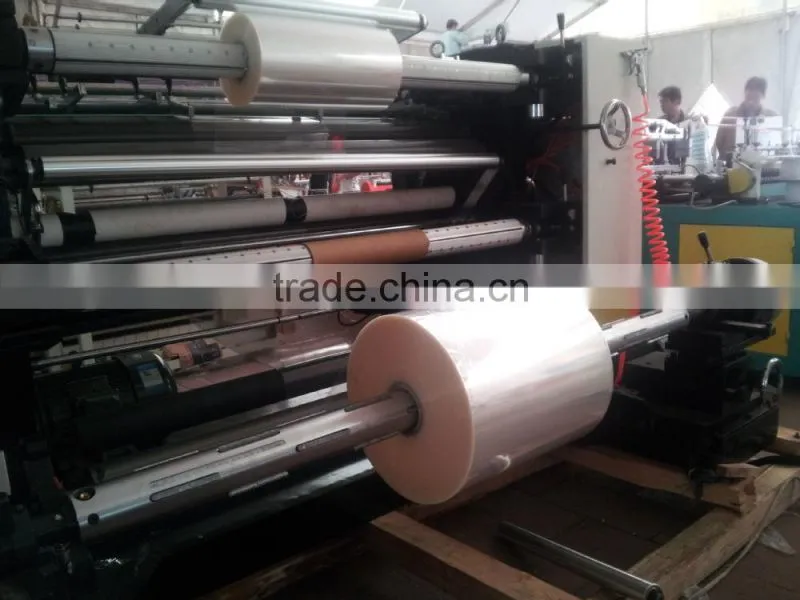

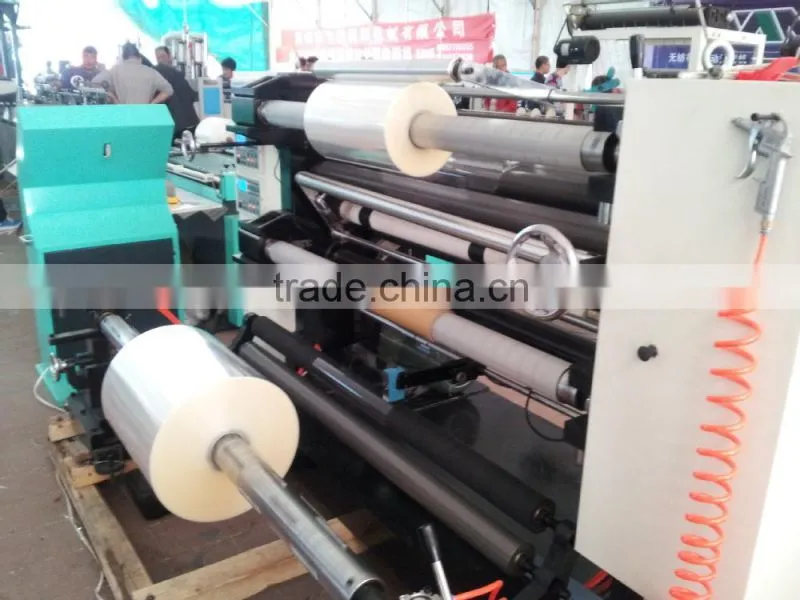

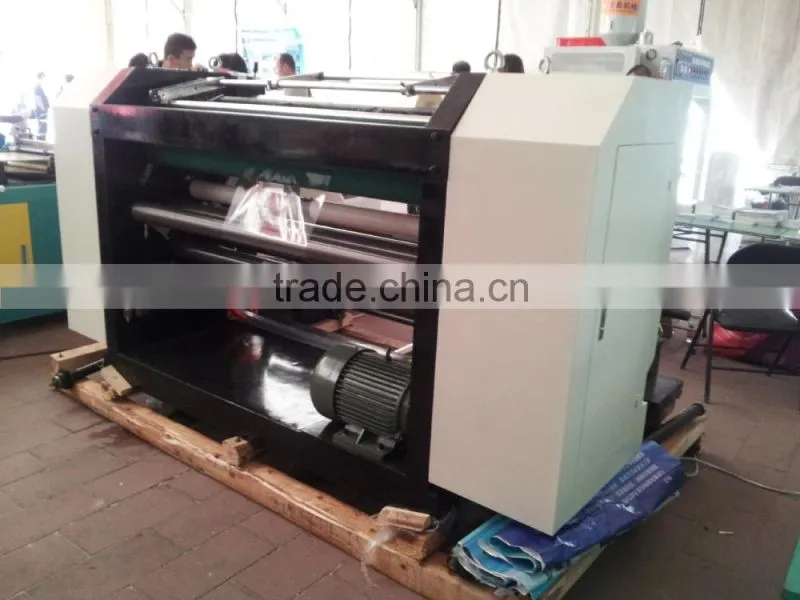

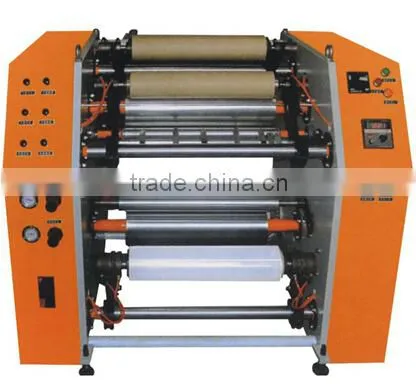

Machine pictures display
