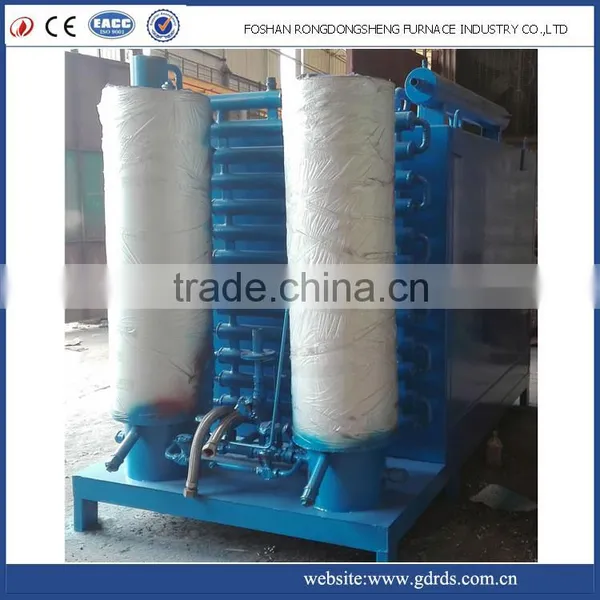

Ammonia gas cracker for controlled gas of electric furnaces
- 5 Set / Sets per Month
- Foshan
- T/T Credit Card
Product Details
Condition: | New | Type: | Resistance Furnace | Usage: | Heat Treatment Furnace |
Place of Origin: | Guangdong, China | Brand Name: | RongDongSheng | Model Number: | RDS-10 |
Voltage: | 380V | Power(W): | 12KW | Dimension(L*W*H): | / |
Weight: | / | Certification: | ISO,CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Ammonia gas cracker for controlled gas of electric furnaces
Ammonia Generator Technology:

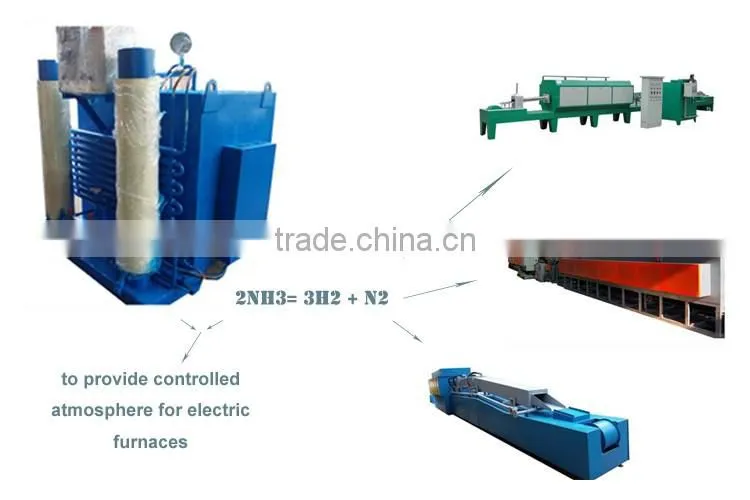

The ammonia decomposition furnace is composed of liquid ammonia as raw materials, through catalytic pyrolysis to get 75% hydrogen and 25%nitrogen mixture gas. The chemical equation as below :
Characteristics of Ammonia Cracker:
1, This series of ammonia cracker has simple structure, convenient operation, less investment, high efficiency, etc.
2, Gas circuit with good sealing, without ammonia smell when production , will not affect the operating environment.
3, high purity of decomposition gases can be used to the demand is higher condition, the additional purification device can obtain more satisfactory protective gas.
4, The catalyst activity is higher, decomposition effect is good, the life of not less than two yearsunder normal working condition.
Application of Ammonia Cracker :
1.Mainly used in steel and non-ferrous metals of bright annealing and tempering
2. Metal powder restore sintering and brazing protection,
3. Also can be used as other metal heat treatmentelectronics, chemical industry, ceramic production process of protective gas.
Model Type | Power (KW) | Voltage (V) | Rated gas production rate (M3/h) | Liquid Ammonia Consumption (kg/h) | Working Temperature(℃) | Catalyst | cooling water consumption (T/h) |
RDS-5 | 5 | 380 | 5 | 2 | 600~650 | Nickel catalyst | / |
RDS-10 | 12 | 380 | 10 | 4 | 800~850 | Nickel catalyst | 0.5 |
RDS-20 | 24 | 380 | 20 | 8 | 800~850 | Nickel catalyst | 1 |
RDS-30 | 36 | 380 | 30 | 12 | 800~850 | Nickel catalyst | 1 |
RDS-50 | 60 | 380 | 50 | 20 | 800~850 | Nickel catalyst | 2 |
RDS-100 | 110 | 380 | 100 | 39 | 800~850 | Nickel catalyst | 4 |
RDS-200 | 210 | 380 | 200 | 77 | 800~850 | Nickel catalyst | 6 |
RDS-300 | 390 | 380 | 300 | 116 | 800~850 | Nickel catalyst | 9 |
RDS-400 | 470 | 380 | 400 | 154 | 800~850 | Nickel catalyst | 12 |
RDS-500 | 550 | 380 | 500 | 193 | 800~850 | Nickel catalyst | 15 |
Foshan RongDongSheng Furnace Industry Co.,Ltd was founded in 1997,located in Foshan City,Guangdong Province,China.The factory is covering more than 10000 square meters which is close to Guangzhou City.
Our products have passed ISO9001 international management system certification and European CE certificate.
With many years experiences in R&D and manufacturing, wide learning and absorbing from others, continuous summarization and innovation, as well as advanced manufacturing equipments and first-class technicians, we set up our branch company at Shun de City of Guan dong province in 1999.
