Home > Computer Products > Network Hardware & Parts > Network Card > EDNSE PRO Gigabit ET Dual Port Adapter Card for Server Gigabit Switch 2 Port

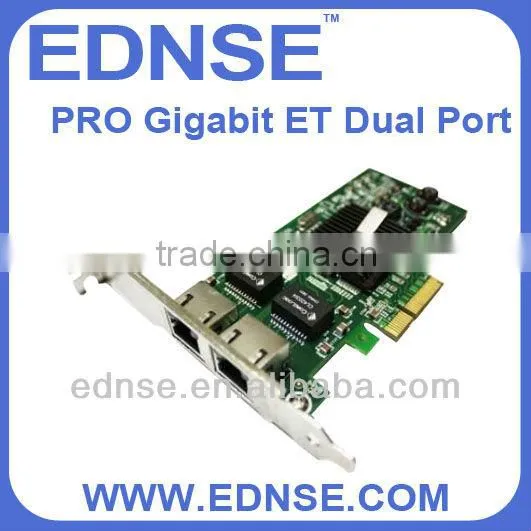

EDNSE PRO Gigabit ET Dual Port Adapter Card for Server Gigabit Switch 2 Port
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EDNSE pc Adapter PRO Gigabit EF Dual Port Card Server Adapter Card Network CardNegotiableMOQ: 200 Sets -
EDNSE Adapter Card ED-10004PF Network Card Network Card for ServerNegotiableMOQ: 200 Sets
-
EDNSE pc Adapter Card Gigabit PF Single Port for ServerNegotiableMOQ: 200 Sets
-
EDNSE pc Adapter Cards Gigabit PF Single Port Server/pcNegotiableMOQ: 200 Sets
-
EDNSE pc Adapter PRO Gigabit EF Dual Port Card Server Adapter CardsNegotiableMOQ: 200 Sets
Products Status
Stock
Application
Server
Type
Wired
Kind
Internal
Transmission Rate
10/100/1000Mbps
Interface Type
Other, SFP
Certification
FCC B, UL, CE, VCI, BSMI, CTICK, MIC
Brand Name
EDNSE
Model Number
PRO Gigabit ET Dual Port
Place of Origin
Guangdong, China
Specifications
EDNSE PRO Gigabit ET Dual Port1.Based on gigabit Ethernet copper connection
General and Technical Features | ||||
Manufacturer Product Name |
EDNSE PRO/1000 ET Dual Port Server Adapter |
|||
Product Code |
10002ET |
|||
Form Factor |
Internal-connected with servers ,Workstations and Others |
|||
Controller-Processor |
Intel 82576EB *1 |
|||
Bus Type |
PCI Express 2.0(2.5GT/s)
|
|||
Bus Width |
x4 lane PCI Express operable in x4, x8, x16 slots |
|||
Network Interface Type |
Dual-Port ,RJ-45 Slots *2 |
|||
Data Rate(s) Supported |
10, 100, and 1000 Mbps per port |
|||
Connection Parts |
RJ-45 *2, UTP-5 cables which is required for EMI compliance |
|||
IEEE Network Standards |
IEEE 802.3(10BASE-T,100BASE-TX,1000BASE-T) |
|||
Typical Power Consumption |
2.9 W (3.3 V & 0.88A) |
|||
Hardware Certifications |
FCC B, UL, CE, VCI, BSMI, CTICK, MIC |
|||
LEDs |
4 (2/port,) solid and blinking |
|||
Brackets *2 |
Includes a full-height bracket and a low profile bracket. |
|||
Environment Standard |
Physical Dimensions |
|||
Operating Temperature |
0°C~55°C
|
Length |
13.2 cm (5.20 in)
|
|
Operating Humidity |
90% |
Width |
6.8cm (2.68 in)
|
|
Stoke Temperature |
-40°C~70°C
|
Height of Brackets |
12.0cm/8cm (4.72 in/3.15in)
|
|
Stoke Humidity |
90% |
Packing Standard
Size (Unit)
|
20cm*15cm*4.5cm
(7.87in*5.91in*1.77in)
|
|
Manageability Features | ||||
On-board microcontroller |
· Implements pass through manageability via a sideband interface to a Board
Management Controller (BMC) via SMBus
|
|||
Advanced filtering capabilities |
· Supports extended L2, L3, and L4 filtering for traffic routing to BMC
· Supports MAC address, VLAN, ARP, IPv4, IPv6, RMCP UDP ports, and UDP/TCP
ports filtering
· Supports flexible header filtering
· Enables the BMC to share the MAC address with the host OS
|
|||
|
Preboot eXecution
Environment (PXE) Support
|
· Enables system boot up via the LAN (32-bit and 64-bit)
· Flash interface for PXE image
|
|||
|
SNMP and RMON Statistic
Counters
|
· Easy system monitoring with industry-standard consoles Simple Network
Management Protocol (SNMP) ,Remote Network Monitoring (RMON)
|
|||
Wake-on-LAN support |
· Packet recognition and wake-up for LAN on motherboard applications without
software configuration
|
|||
iSCSI boot |
· Enables system boot up via iSCSI
· Provides additional network management capability
|
|||
Watchdog timer |
· Used to give an indication to the manageability firmware or external devices that the
chip or the driver is not functioning
|
|||
Features and Benefits of PRO/1000 ET Dual Port Server Adapter
Features |
Benefits |
|
Two Gigabit Ethernet RJ-45
Ports
|
Apply two Gigabit RJ-45 connections in a single PCI Express * slot |
|
Apply Intel 82576 EB Gigabit
Controller
|
Enables two Gigabit connections in a single adapter, industry-leading,
energy-efficient design for next-generation Gigabit performance and multi-core
processors.
|
Low profile |
Enables higher bandwidth and throughput from standard and low profile PCIe slots
and servers.
|
iSCSI remote boot support |
Provides centralized storage area network (SAN) management at a lower cost than
competing iSCSI solutions.
|
|
Load balancing on multiple
CPUs
|
Increases performance on multi-processor systems by efficiently balancing network
loads across CPU cores when used with Receive-Side Scaling from Microsoft or
Scalable I/O on Linux*
|
Interrupt moderation |
Delivers increased performance while significantly reducing CPU utilization |
|
Compatible with x4, x8, and
x16 full-height 2 PCI
Express* slots
|
Allows dual-port operation in almost any PCI Express server slot, except x1 slots,
and allows each port to operate without interfering with the other
|
|
Support for most network
operating systems (NOS)
|
Enables widespread deployment |
|
Remote management
support
|
Reduces support costs with remote management based on industry-wide standards |
|
PROSet Utility for Microsoft*
Device Manager
|
Provides point-and-click power over individual adapters, advanced adapter features,
connection teaming, and virtual local area network (VLAN) configuration
|
|
RoHS compliant3,
Lead-free1 technology
|
Compliant with the new European Union directive 2002/95/EC to reduce the use of
hazardous materials
|
Product backing |
Backed by EDNSE limited lifetime warranty, 3-months replacement guarantee, and
3-years global services warranty, and worldwide support.
|
Single Unit : 10002ET
Companion Products
EDNSE Ethernet server adapter has been tested for compatibility, available from 10/100 Mbps to 1000Mbps and 10 Gbps, optical fiber or copper, gigabit SFP transceivers SM or MM ,10 gigabit Ethernet SFP+ transceivers , can be adaptive plug replacement, extensive using PCI Express * and single to dual to quad ports configurations.

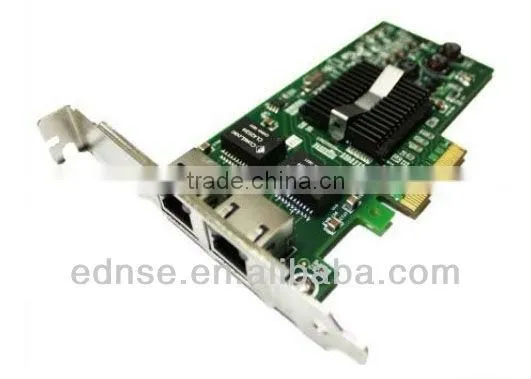

whole rendering
