EDNSE pc Adapter Card Gigabit PF Single Port for Server

EDNSE pc Adapter Card Gigabit PF Single Port for Server thumbnail-1
EDNSE pc Adapter Card Gigabit PF Single Port for Server photo-1
Negotiable MOQ: 200 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Contact Supplier Request Quote Chat Now
DENESE (Dongguan) Computer Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wired
Kind Internal
Transmission Rate 10/100/1000Mbps
Interface Type Other, SFP
Certification FCCB,UL,CE,VCI,BSMI,CTICK,MIC
Brand Name EDNSE
Model Number PRO Gigabit PF Single Port

Specifications

EDNSE server adapter casrd PRO Gigabit PF Single Port
1.Wired for Management (WfM) baseline v2.0 enabled for
servers

General and Technical Features
Manufacturer Product Name
EDNSE PRO/1000 PF Single Port Server Adapter
Product Code
10001PF
Form Factor
Internal-connected with servers ,Workstations and Others
Controller-Processor
Intel 82571EB *1
Bus Type
PCI Express 1.0a
Bus Width
x4 lane PCI Express operable in x4, x8, x16 slots
Bus Speed (x4, encoded rate)
10 Gbps uni-directional; 20 Gbps bi-directional
Network Interface Type
Single-Port ,SFP Slots *1
Data Rate(s) Supported
10, 100, and 1000 Mbps per port
Optional Connection Parts
SFP Transceiver *1, (1000BASE-SX,1000BASE-LX,1000BASE-ZX). LC
fiber optical cables.
IEEE Network Standards
IEEE 802.3(1000BASE-SX, 1000BASE-LX, 1000BASE-ZX).
Typical Power Consumption
3.3 W (3.3 V & 1 A)
Hardware Certifications
FCC B, UL, CE, VCI, BSMI, CTICK, MIC
LEDs
1 (color) solid and blinking
Brackets *2
Includes a full-height bracket and a low profile bracket.
Environment Standard
Physical Dimensions
Operating Temperature
0°C~55°C
Length
13.7 cm (5.39 in)
Operating Humidity
85%
Width
6.8cm (2.68 in)
Stoke Temperature
-20°C~65°C
Height of Brackets
12.0cm/8cm (4.72 in/3.15in)
Stoke Humidity
85%
Packing Standard Size
(Unit)
20cm*15cm*4.5cm
(7.87in*5.91in*1.77in)
NOS Software Support
Network Management
Microsoft Windows* Server 2003, Enterprise,
Datacenter (32- and 64-bit)
Wired for Management (WfM) baseline v2.0 enabled for
servers
Microsoft Windows 2000
DMI 2.0 support,
Windows Management Instrumentation (WMI) SNMP
manageable SM Bus support
Red Hat Linux* 2.4x or later (32- and 64-bit)
Remote Installation Services (RIS)
FreeBSD 4.x or later
Diagnostics (loopback, testability, PHY register access)
Novell Netware* 5.x, 6.x
Advanced configuration and power interface (ACPI) 1.0
power management
Sun Solaris* x86, OS 8 and later
Wake on LAN* support over PCI Express*
SCO Open Server 5, Open Unix 8*
PXE 2.0 enabled through boot read-only memory (ROM)


Features and Benefits of PRO/1000 PF Single Port Server Adapter
Features
Benefits
Gigabit Ethernet SFP Port
Apply Gigabit Fiber SFP connection in a single PCI Express * slot, you can apply
high-performance PCI Express * SFP Transceiver (1000BASE-SX, 1000BASE-LX
or 1000BASE-ZX) connection adapters in limited server slot .and with the advanced
server features to achieve multi-gigabit scalability and uptime.
Apply with SFP Slots, install
the fiber optic module
according to demand
Compatible with all single-mode or multimode Gigabit SFP optical modules, You can
configure the module based on your operating requirements, to achieve meeting
your needs and the optimal allocation of resources.
Apply Intel 82571EB Gigabit
Controller
Enables two Gigabit connections in a single adapter, delivering increased bandwidth
for slot-constrained servers and providing high performance, reliability, and low
power use in a single, integrated, dual port PCI Express Gigabit Ethernet controller
chip
Load balancing on multiple
CPUs
Increases performance on multi-processor systems by efficiently balancing network
loads across CPU cores when used with Receive-Side Scaling from Microsoft or
Scalable I/O on Linux*
Interrupt moderation
Delivers increased performance while significantly reducing CPU utilization
Compatible with x4, x8, and
x16 full-height 2 PCI
Express* slots
Allows dual-port operation in almost any PCI Express server slot, except x1 slots,
and allows each port to operate without interfering with the other
Support for most network
operating systems (NOS)
Enables widespread deployment
Remote management
support
Reduces support costs with remote management based on industry-wide standards
PROSet Utility for Microsoft*
Device Manager
Provides point-and-click power over individual adapters, advanced adapter features,
connection teaming, and virtual local area network (VLAN) configuration
LC connectors
Small connector design is compatible with the latest fiber-optic cabling standard
1000BASE-SX,1000BASE-LX or 1000BASE-ZX, multi-mode or single-mode cables
which lengths up to 120km meters distance.
RoHS compliant3,
Lead-free1 technology
Compliant with the new European Union directive (effective July 2006) to reduce the
use of hazardous materials
Product backing
Backed by EDNSE limited lifetime warranty, 3-months replacement guarantee, and
3-years global services warranty, and worldwide support.




Ordering Information:

Single Unit : 10001PF
Companion Products

EDNSE Ethernet server adapter has been tested for compatibility, available from 10/100 Mbps to 1000Mbps and 10 Gbps, optical fiber or copper, gigabit SFP transceivers SM or MM ,10 gigabit Ethernet SFP+ transceivers , can be adaptive plug replacement, extensive using PCI Express * and single to dualto quad ports configurations.

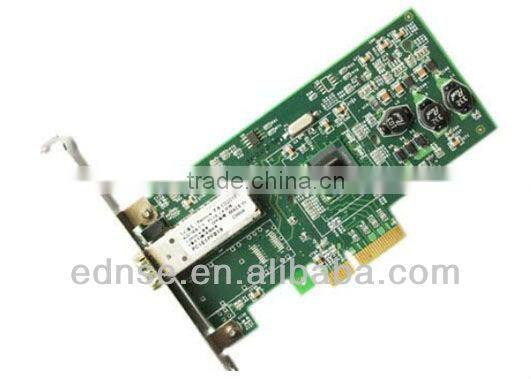

Whole rendering
EDNSE pc adapter card Gigabit PF Single Port for server
