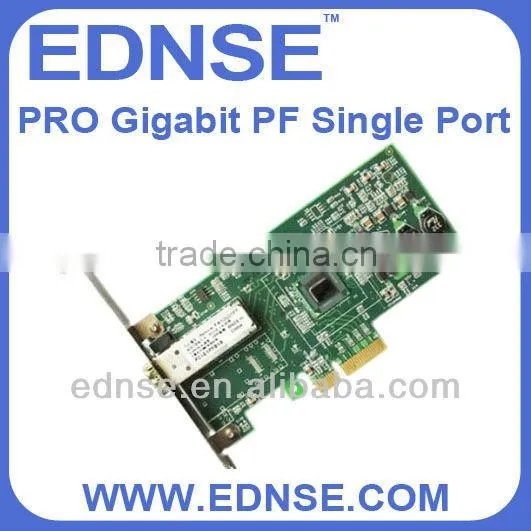

EDNSE pc adapter cards Gigabit PF Single Port server/pc

Name: EDNSE pc adapter cards Gigabit PF Single Port server/pc
Brand: EDNSE
Price: Negotiable

FOB Price

Negotiable / Set

200 Sets(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port FOB SHENZHEN
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Stock	Application:	Server	Type:	Wired
Kind:	Internal	Transmission Rate:	10/100/1000Mbps	Interface Type:	Other, SFP
Certification:	FCCB,UL,CE,VCI,BSMI,CTICK,MIC	Brand Name:	EDNSE	Model Number:	PRO Gigabit PF Single Port

Product Description

Specifications

EDNSE server adapter casrd PRO Gigabit PF Single Port
1.Wired for Management (WfM) baseline v2.0 enabled for
servers

General and Technical Features
Manufacturer Product Name		EDNSE PRO/1000 PF Single Port Server Adapter
Product Code		10001PF
Form Factor		Internal-connected with servers ,Workstations and Others
Controller-Processor		Intel 82571EB *1
Bus Type		PCI Express 1.0a
Bus Width		x4 lane PCI Express operable in x4, x8, x16 slots
Bus Speed (x4, encoded rate)		10 Gbps uni-directional; 20 Gbps bi-directional
Network Interface Type		Single-Port ,SFP Slots *1
Data Rate(s) Supported		10, 100, and 1000 Mbps per port
Optional Connection Parts		SFP Transceiver *1, (1000BASE-SX,1000BASE-LX,1000BASE-ZX). LC fiber optical cables.
IEEE Network Standards		IEEE 802.3(1000BASE-SX, 1000BASE-LX, 1000BASE-ZX).
Typical Power Consumption		3.3 W (3.3 V & 1 A)
Hardware Certifications		FCC B, UL, CE, VCI, BSMI, CTICK, MIC
LEDs		1 (color) solid and blinking
*Brackets 2**		Includes a full-height bracket and a low profile bracket.
Environment Standard			Physical Dimensions
Operating Temperature	0°C~55°C		Length	13.7 cm (5.39 in)
Operating Humidity	85%		Width	6.8cm (2.68 in)
Stoke Temperature	-20°C~65°C		Height of Brackets	12.0cm/8cm (4.72 in/3.15in)
Stoke Humidity	85%		Packing Standard Size (Unit)	20cm15cm4.5cm (7.87in5.91in1.77in)
NOS Software Support			Network Management
*Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit)**			Wired for Management (WfM) baseline v2.0 enabled for servers
Microsoft Windows 2000			DMI 2.0 support, Windows Management Instrumentation (WMI) SNMP manageable SM Bus support
*Red Hat Linux 2.4x or later (32- and 64-bit)**			Remote Installation Services (RIS)
FreeBSD 4.x or later			Diagnostics (loopback, testability, PHY register access)
*Novell Netware 5.x, 6.x**			Advanced configuration and power interface (ACPI) 1.0 power management
*Sun Solaris x86, OS 8 and later**			Wake on LAN* support over PCI Express*
SCO Open Server 5, Open Unix 8*			PXE 2.0 enabled through boot read-only memory (ROM)

Features and Benefits of PRO/1000 PF Single Port Server Adapter

Features	Benefits
Gigabit Ethernet SFP Port	Apply Gigabit Fiber SFP connection in a single PCI Express * slot, you can apply high-performance PCI Express * SFP Transceiver (1000BASE-SX, 1000BASE-LX or 1000BASE-ZX) connection adapters in limited server slot .and with the advanced server features to achieve multi-gigabit scalability and uptime.
Apply with SFP Slots, install the fiber optic module according to demand	Compatible with all single-mode or multimode Gigabit SFP optical modules, You can configure the module based on your operating requirements, to achieve meeting your needs and the optimal allocation of resources.
Apply Intel 82571EB Gigabit Controller	Enables two Gigabit connections in a single adapter, delivering increased bandwidth for slot-constrained servers and providing high performance, reliability, and low power use in a single, integrated, dual port PCI Express Gigabit Ethernet controller chip
Load balancing on multiple CPUs	Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux*
Interrupt moderation	Delivers increased performance while significantly reducing CPU utilization
Compatible with x4, x8, and x16 full-height 2 PCI *Express slots**	Allows dual-port operation in almost any PCI Express server slot, except x1 slots, and allows each port to operate without interfering with the other
Support for most network operating systems (NOS)	Enables widespread deployment
Remote management support	Reduces support costs with remote management based on industry-wide standards
PROSet Utility for Microsoft* Device Manager	Provides point-and-click power over individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration
LC connectors	Small connector design is compatible with the latest fiber-optic cabling standard 1000BASE-SX,1000BASE-LX or 1000BASE-ZX, multi-mode or single-mode cables which lengths up to 120km meters distance.
RoHS compliant3, Lead-free1 technology	Compliant with the new European Union directive (effective July 2006) to reduce the use of hazardous materials
Product backing	Backed by EDNSE limited lifetime warranty, 3-months replacement guarantee, and 3-years global services warranty, and worldwide support.

Ordering Information:

Single Unit : 10001PF

Companion Products

EDNSE Ethernet server adapter has been tested for compatibility, available from 10/100 Mbps to 1000Mbps and 10 Gbps, optical fiber or copper, gigabit SFP transceivers SM or MM ,10 gigabit Ethernet SFP+ transceivers , can be adaptive plug replacement, extensive using PCI Express * and single to dualto quad ports configurations.

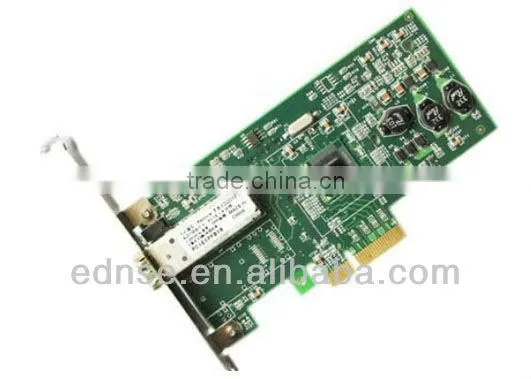

Whole rendering
