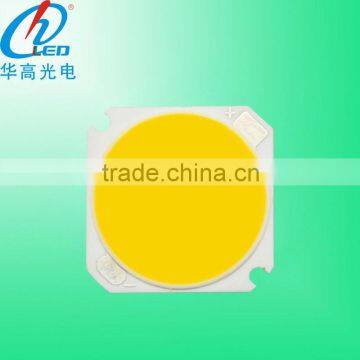

High Brightness High power ceramic 3w COB LED source
USD $0.3 - $0.6
/ Piece
100 Pieces(Min.Order)
- 50000000 Piece / Pieces per Month
- SHENZHEN
- T/T Credit Card
You May Like
- 12V-COB-3000K-01M Inspired LED LED Lighting Bars and Strips White 3000K, 12 volt 1 Meter Strip
- Flexible COB LED Strip Light Dv12v 420leds/m Color Pink
- Dv12v 420leds/m Pink Cob Led Strip Flexible COB LED Strip Light
- Cob Yellow Light Strip Led Led Chip Customize Logo DC24v 12v flexible yellow color led cob strip blue cob led strip light
- Numeric Display with 7 Segments
- Numeric Display
Product Details
Model Number: | HGCT3W63-6N30 | Chip Material: | InGaN | Emitting Color: | Warm White |
Luminous Flux(lm): | 300 | Optical Attenuation(%): | 2 | Power: | 3W |
Power Dissipation: | 3 | Color Rendering Index(Ra): | 100 | Color Temperature: | 2800~3200k |
Operating Temperature(℃): | -30, 70 | Storage Temperature(℃): | -40, 80 | Place of Origin: | Guangdong, China |
Brand Name: | HG | Certification: | CE |
Product Description
Specifications
1.high power 3W COB ledfessional manufacturer
3.high CRI
4.perfect heat dissipation
Features:
1.High quality chip, phosphor, glue etc,
2.each led is the same color.
3.leakage current <5uA
4.High reliability : 1000 hours no light decay,3000 hours light decay less than 3%.
5.life span: more than 50,000 hours
Applications
These high quality COB LED were used widely in the LED street lighting and LED high Bay light
LED downligh and Led Flashlight etc
Specifications
Model | Power | CCT | IF | VF | LM |
HGCT3W*3-6* | 3W | 2800-3200K | 150MA | 12-21V | 240-330 |
HGCT3W*6-6* | 3W | 5500-6500K | 150MA | 18-21V | 240-330 |
HGCT5W*3-6* | 5W | 2800-3200K | 280MA | 18-21V | 400-600 |
HGCT5W*6-6* | 5W | 5500-6500K | 280MA | 18-21V | 400-600 |
HGCT6W*3-6* | 6W | 2800-3200K | 320MA | 18-21V | 500-700 |
HGCT6W*6-6* | 6W | 5500-6500K | 320MA | 18-21V | 500-700 |
HGCT12W*3-6* | 12W | 2800-3200K | 320MA | 36-39V | 800-1400 |
HGCT12W*6-6* | 12W | 5500-6500K | 320MA | 36-39V | 800-1400 |
Dimension:
