Home > Lights & Lighting > LED Encapsulation Series > COB LED > High Brightness High Power Ceramic COB LED Source
High Brightness High Power Ceramic COB LED Source
US$ 0.3 - 0.6
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Model Number:
HGCT3W68-6N30
Chip Material:
InGaN
Emitting Color:
Natural White
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Model Number
HGCT3W68-6N30
Chip Material
InGaN
Emitting Color
Natural White
Luminous Flux(lm)
300
Power
3W
Power Dissipation
3
Color Rendering Index(Ra)
100
Color Temperature
5500~6500k
Operating Temperature(℃)
-30, 70
Storage Temperature(℃)
-40, 80
Place of Origin
Guangdong, China
Brand Name
HG
Certification
CE
Specifications
1.high power COB ledfessional manufacturer
3.high CRI
4.perfect heat dissipation
Features:
1.High quality chip, phosphor, glue etc,
2.each led is the same color.
3.leakage current <5uA
4.High reliability : 1000 hours no light decay,3000 hours light decay less than 3%.
5.life span: more than 50,000 hours
Applications
These high quality COB LED were used widely in the LED street lighting and LED high Bay light
LED downligh and Led Flashlight etc
Specifications
| Model | Power | CCT | IF | VF | LM |
| HGCT3W*3-6* | 3W | 2800-3200K | 150MA | 12-21V | 240-330 |
| HGCT3W*6-6* | 3W | 5500-6500K | 150MA | 18-21V | 240-330 |
| HGCT5W*3-6* | 5W | 2800-3200K | 280MA | 18-21V | 400-600 |
| HGCT5W*6-6* | 5W | 5500-6500K | 280MA | 18-21V | 400-600 |
| HGCT6W*3-6* | 6W | 2800-3200K | 320MA | 18-21V | 500-700 |
| HGCT6W*6-6* | 6W | 5500-6500K | 320MA | 18-21V | 500-700 |
| HGCT12W*3-6* | 12W | 2800-3200K | 320MA | 36-39V | 800-1400 |
| HGCT12W*6-6* | 12W | 5500-6500K | 320MA | 36-39V | 800-1400 |

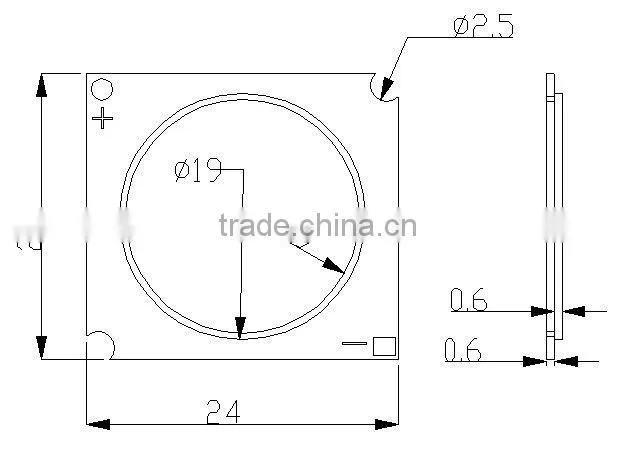

Dimension:
