Linear Juice Washing/filling/capping Machine

Specifications

Linear juice washing/filling/capping machine

Usage: The line is mainly used for washing, filling sealing non carbon dioxide drink such as juice, mineral water, pure water, non-gas wine drink and so on.

Characteristics: It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

This water filling line with good quality stainless steel,working steable, suitable for bottle 250ml-3000ml PET or Glass bottle.

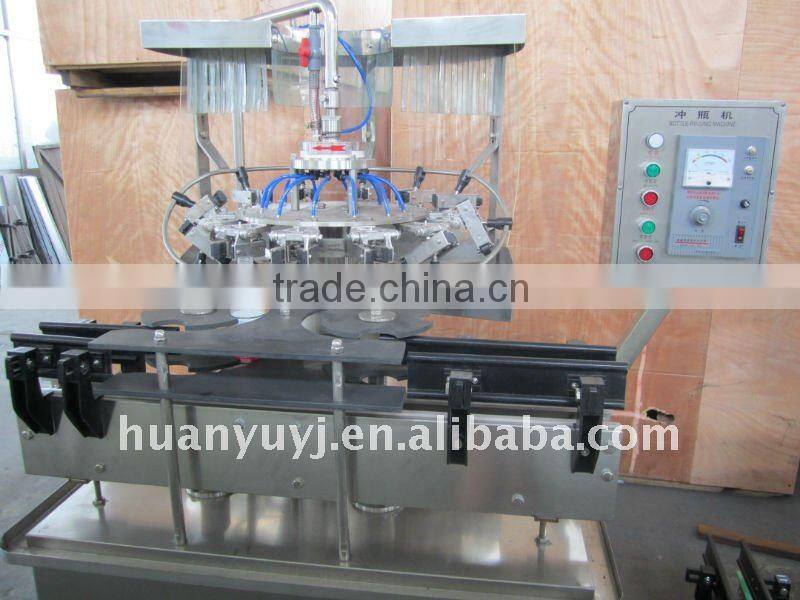

 ZCP series  Rinsing Machine

(1). Rinsing Capacity                       2000bottles / hour

(2). Fitting Bottle Size                      Height: 150-300mm

                                                      Diameter: 50-90mm

(3). Running Method                         Continuous Gyration Running

(4). Number of Rinsing Position         12 Pieces

(5). Power of the Machine                 1.5 kw

(6). Overall Weight of the Machine     700kg

(7). Overall Dimensions                    1400×1200×1800mm

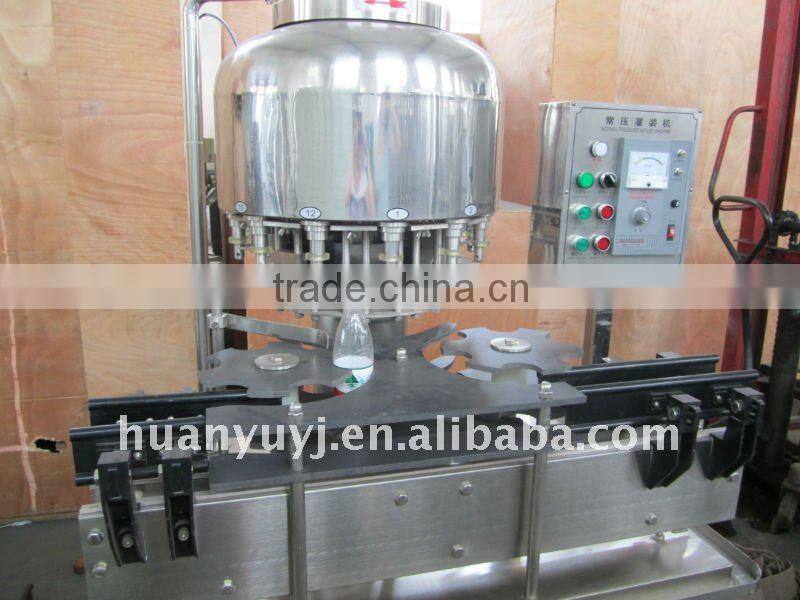

GFP Series Filling Machine

This machine is ideal auto-filling device at present

(1). Range of bottle volume                   250-2000ml PET bottles or PET bottles

(2). Range of bottle size

a. Diameter of bottle                               50-90mm

b. Height of bottle                                  200-330mm

c. Inner-diameter of bottle                      ≥17mm

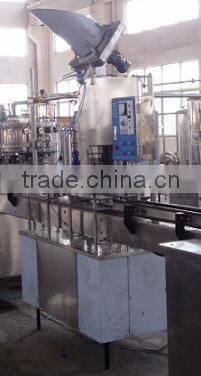

YQX series Capping Machine

Capacity:                                                             1500-2000bottles / hour

Power of the main motor                                     1.2Kw

Overall dimension                                               920X800X1940mm

Total weight:                                                        500Kg

This water filling line fill all kind of NON-carbonated beverage and low thickness beverage and carbonated drinks. All parts of this machine is made of stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life.

This machine working steable and with good quality 304,  and with 15monthes quality guarantee.

washing machine

filling machine

 plastic screw capping machine
