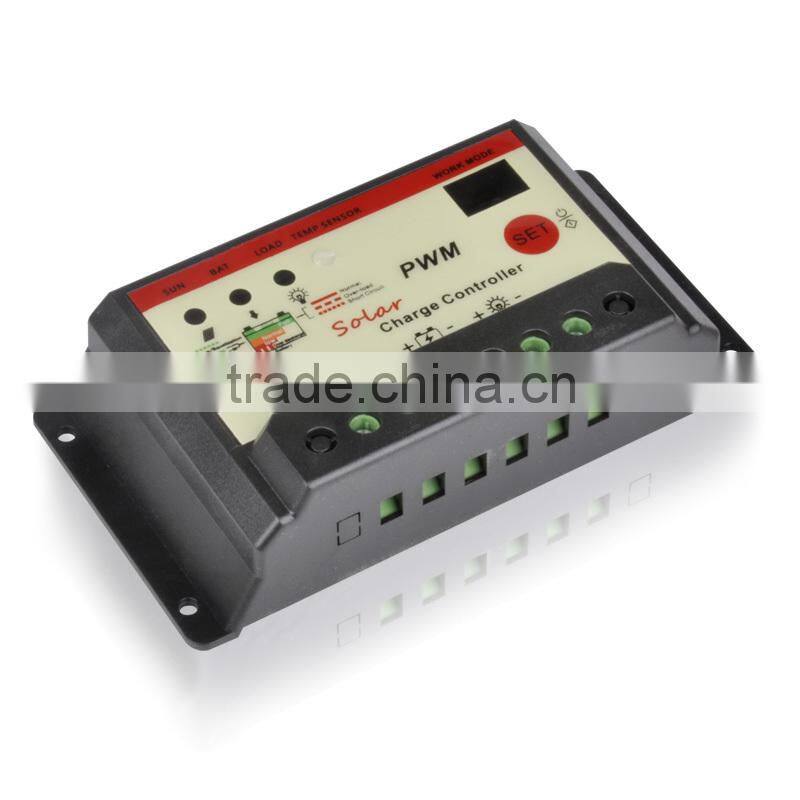

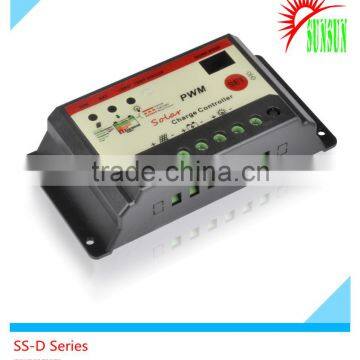

SS-D Series Good quality Voltage Auto adpat 12V 24V PWM Solar charger
MODEL |
SS1205D |
SS1210D |
SS1215D |
SS1220D |
SS1230D |
Batt voltage |
12V/24V auto adapt |
||||
Charge current |
5A |
10A |
15A |
20A |
30A |
Discharge current |
5A |
10A |
15A |
20A |
30A |
Max Solar input |
41V |
||||
Charge drop |
<0.2V |
||||
Discharge drop |
<0.25V |
||||
Equalization |
14.8V |
||||
Bulk |
14.5V |
||||
Acceptance |
14.2V PWM |
||||
Float |
13.8V |
||||
Charge reconnect |
13.0V |
||||
Discharge stop |
11.2V |
||||
Discharge reconnect |
12.6V |
||||
Self-consume |
<10mA |
||||
Voltage of open light |
Solar panel 8V(delay 10s) |
||||
Voltage of close light |
Solar panel 8V(delay 60s) |
||||
Temperature compensation |
N/C |
||||
Operating temperature |
-35~+60 ℃ |
||||

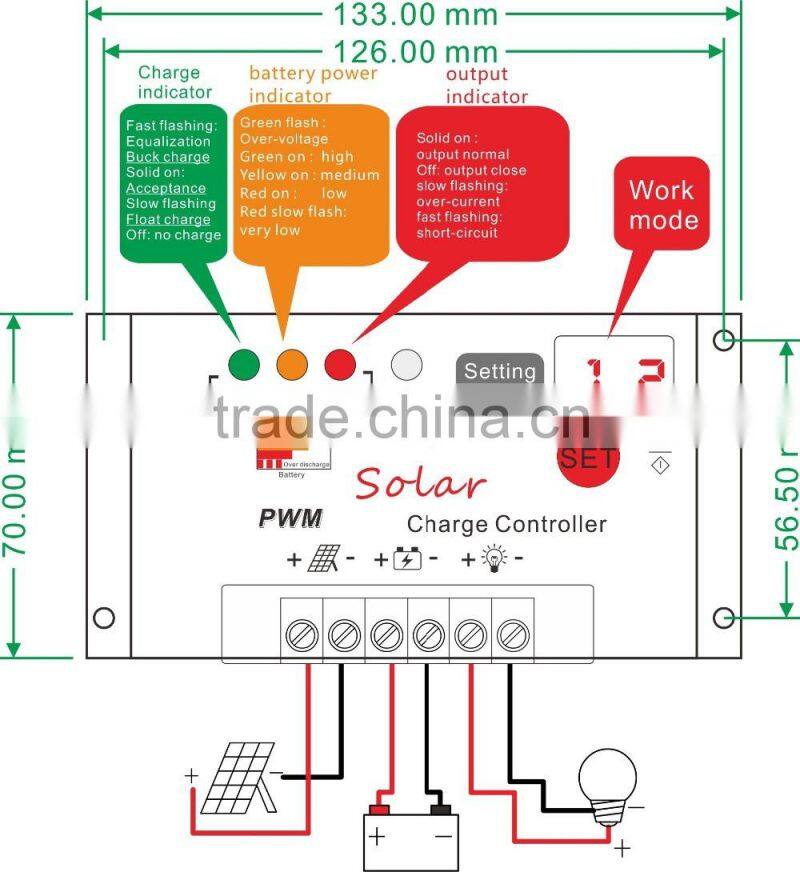

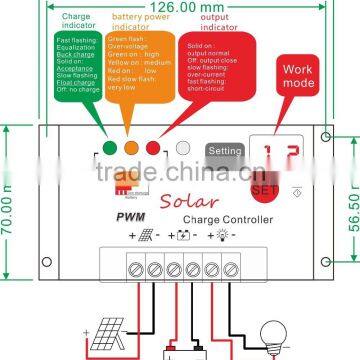

Size/Weight |
133*70*35mm /150g |
||||
*all red color voltage X2 while using 24V system
*Product specifications are subject to change without prior notice
Paper box;Pallet
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
OEM Available;
System configuration service;
Technical support.
PLEASE CONTACT US FOR MORE PRODUCT DETAILS!
