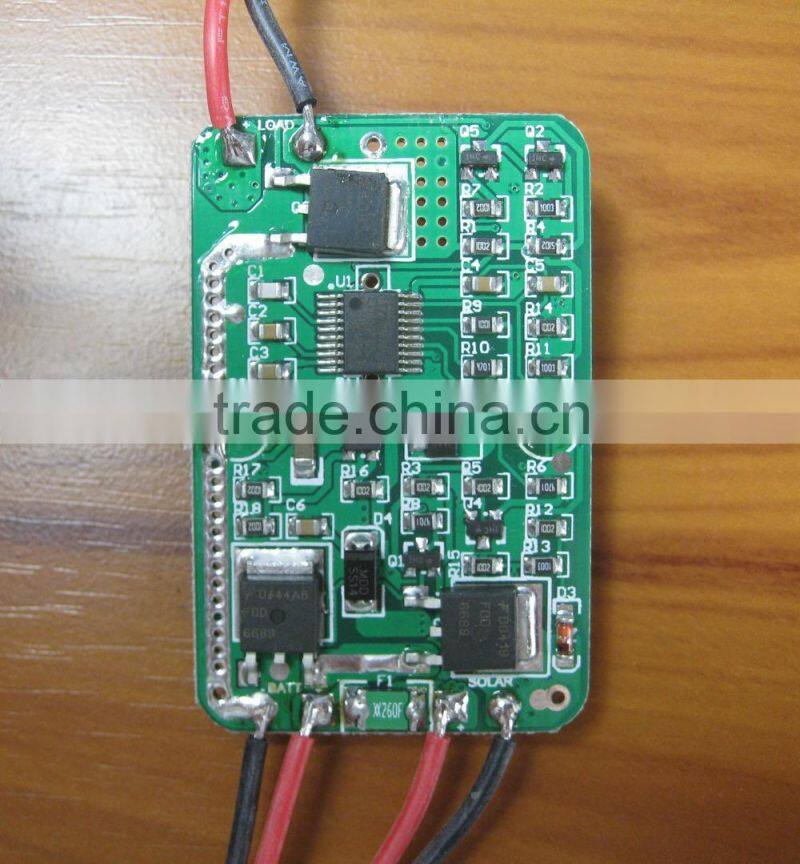

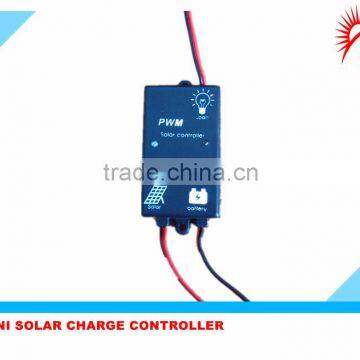

6V 12V 6A solar charge controller mini
1.Build-in industrial micro controller.
2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Model |
SC601 |
SC603 |
SC605 |
Max charge current |
1A |
3A |
5A |
Max discharge current |
1A |
3A |
5A |
Over load |
About 2A |
About 4A |
About 6A |
Rated battery voltage |
6V |
||
Max solar panel input voltage |
10.8V |
||
Equalize voltage |
7.4V |
||
Constant voltage |
7.1V |
||
Float voltage |
6.9V |
||
LVD |
5.6V |
||
Discharge return |
6.3V |
||
Charging control |
PWM 3 stage |
||
Standby lost |
2.8mA@6V |
||
Min start voltage |
4.5V |
||
wire |
20AWG*10cm |
||
Size/weight |
60x25x18mm/50g |
||
Paper box;Pallet
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
Q:I want to start solar business,but i don't know what product is hot sale!
A:Leave it to us,we will recommed the most fasion hot sale products to you!
Q:I want to use solar system for electical application,but i don't know what components i need!
A:Leave it to use,we will configuration the solar system base on your requirements!
Q:What is the solar charge controller warranty?
A:Solar charge controller 1 year.
