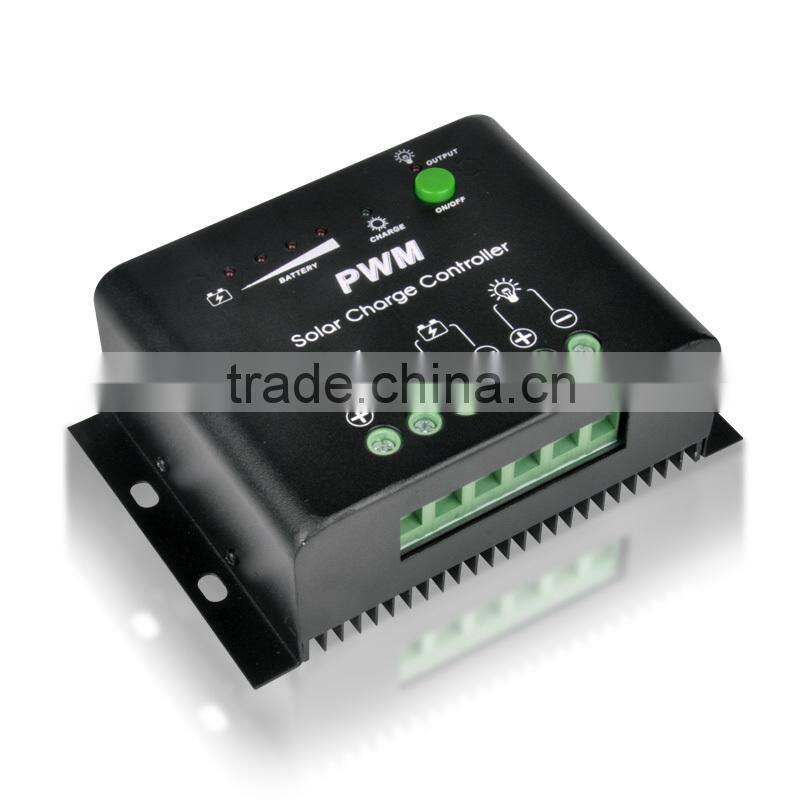

48 volt 50 amp PWM Solar Charge Controller
1.Build-in industrial micro controller.
2.One-key setting,digital display,auto memory function.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
MODEL/SS |
1250DP |
1260DP |
4850DP |
4860DP |
Batt voltage |
12V/24V auto |
48V |
||
Charge current |
50A |
60A |
50A |
60A |
Discharge current |
50A |
60A |
50A |
60A |
Max Solar input |
<50V |
<100V |
||
Charge drop |
<0.2V |
|||
Discharge drop |
<0.25V |
|||
Equalization |
14.8V |
|||
Bulk |
14.5V |
|||
Acceptance |
14.2V PWM |
|||
Float |
13.8V |
|||
Charge reconnect |
13.0V |
|||
Discharge stop |
11.2V |
|||
Discharge reconnect |
12.6V |
|||
Self-consume |
<10mA |
|||
Voltage of open light |
Solar panel 8V(delay 10s) |
|||
Voltage of close light |
Solar panel 8V(delay 60s) |
|||
Temperature compensation |
N/C |
|||
Operating temperature |
-35~+60 ℃ |
|||

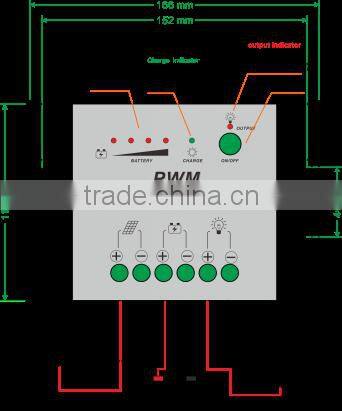

Size/Weight |
166*113*355mm /645g |
|||
*all red color voltage X2 while using 24V system,X4 for 48V system.
*Product specifications are subject to change without prior notice.
Paper box;Pallet
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
OEM Available;
System configuration service;
Technical support.
PLEASE CONTACT US FOR MORE PRODUCT DETAILS!
