Specifications
Pulverized Coal Burner For Asphalt Plantoil burner5.5-7kg/t
20-320T/H
ISO9001, ISO14001 CE,Gost
Pulverized Coal Burner
Pulverized Coal Burner For Asphalt Plant
Introduction:
RM First Choise Pulverized Coal Burner with a specially designed multi-stage air-driven structure to speak out of turn, can produce in a short time so that high-temperature pulverized coal swirl with burning completely, heat utilization high, smoke dust, efficient energy saving, improvement of working conditions, reducing labor intensity, etc.,RM pulverized coal burners are ideal for energy saving and environmental protection products.
Features------ First Choise Pulverized Coal Burner :
1. Adopt innovative design structure, no visible stack emmissions
2. High flame temperature, compact flame shape, energy saving;
3. Adopt high performance refractory brick, prolong service life;
4. 24 hours continuous production, no need do slag removal work everyday;
5. Low production cost, which is only about 1/5 of the oil burner .
6. Coal Burner suppliers for other chinese famous brand boilers and asphalt plant.
Requirements of fuel
1. Use 0 # diesel for oil burning igniter
2. Requirements for the quality of coal using for burning:
1) Mark of coal: bituminous coal
2) Calorific value: ≥25kJ
- gross calorific value 7000 kcal/kg
- net calorific value 5000 kcal/kg
3) Yield of volatile matter: ≥25%
4) Permissible ash 8~10%
5) Total moisture 3~4%
6) Total sulphur ≤1%
7) Particle size: ≤20mm
Note: These indexes are the lowest requirements for the coal, the better coal will be better at practice.
3. Environment friendly:
Combustion completeness ≥95%,
Air black: Ringelmann 0-I grade, no harm to environment
FMJ series coal crusher
used for producing and supplying coal powder for coal burner.
Powder particle size: R90<20% (0.09mm)
General parameters------ Top 1 Pulverized Coal Burner :
Model |
RM500 |
RM1000 |
RM1500 |
RM2000 |
RM3000 |
RM4000 |
Power |
31.25 kw |
41.25 kw |
73.75 kw |
97.25 kw |
138.45 kw |
202.95 kw |
Rated coal consumption |
450 kg/h |
1000 kg/h |
1500 kg/h |
2000 kg/h |
2860 kg/h |
3660 kg/h |
Mixture temperature control |
130-180°C |
130-180°C |
130-180°C |
130-180°C |
130-180°C |
130-180°C |
Main machine |
LTZ40 |
LTZ80 |
LTZ120 |
LTZ160 |
LTZ240 |
LTZ320 |
Coal crusher |
FMJ40 |
FMJ80 |
FMJ120 |
FMJ120+ FMJ40 |
2*FMJ120 |
3*FMJ120 |
Oil burning igniter |
RYDH |
RYDH |
RYDH |
RYDH |
RYDH |
RYDH |
Distribution cabinet |
PD40 |
PD80 |
PD120 |
PD160 |
PD240 |
PD320 |
Combustion completeness |
≥95% |
≥95% |
≥95% |
≥95% |
≥95% |
≥95% |
Matching asphalt plant output |
25-40 t/h |
70-85 t/h |
100-125 t/h |
140-170 t/h |
200-250 t/h |
280-320 t/h |

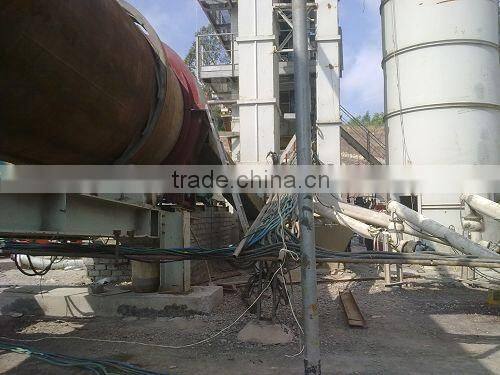

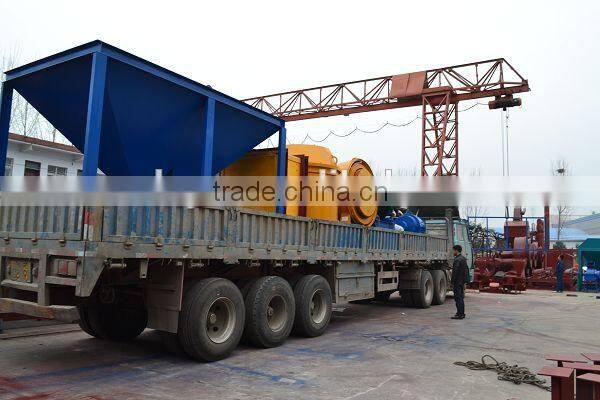

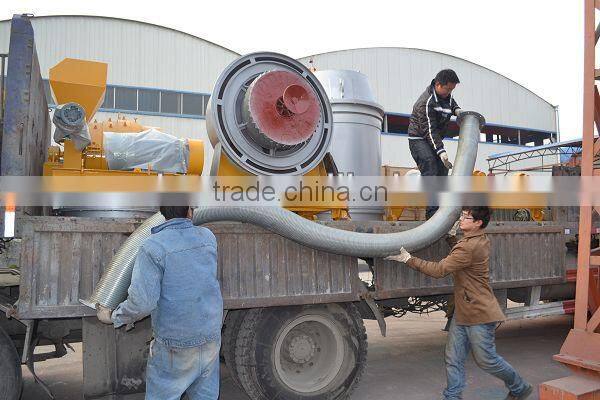

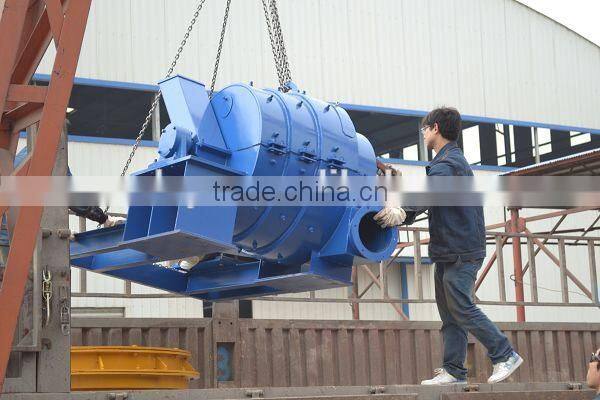

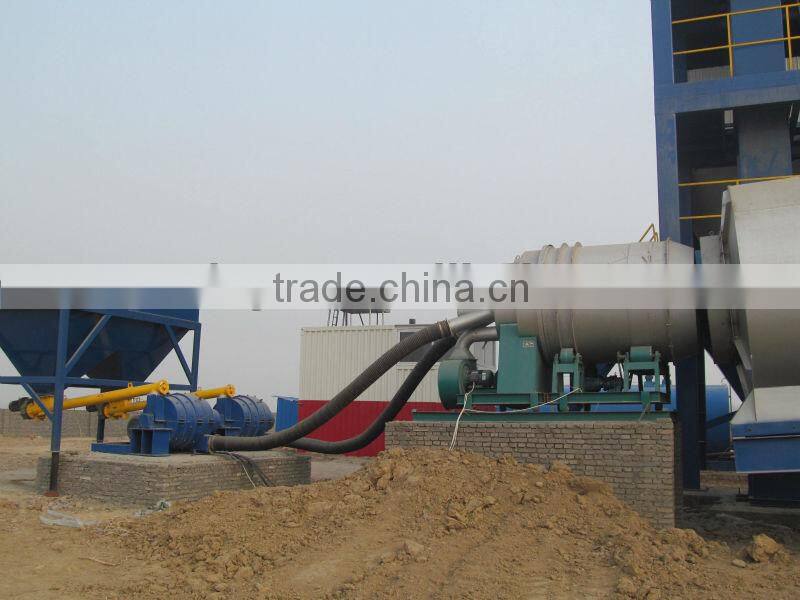

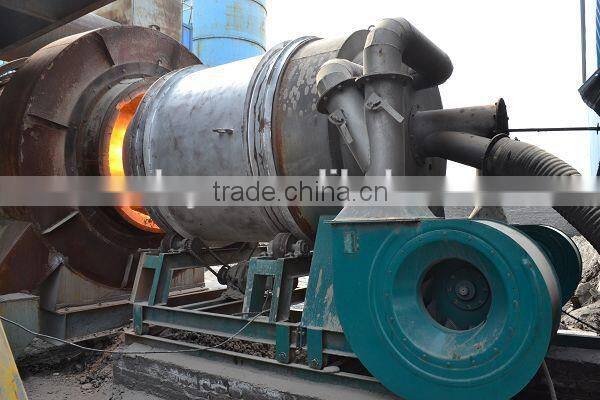

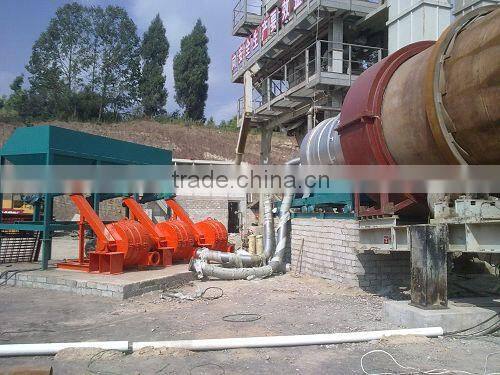

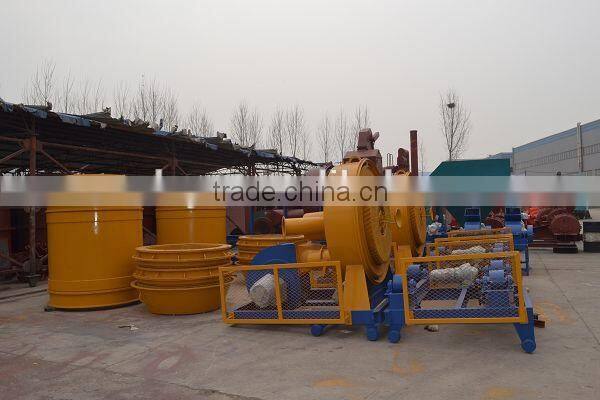

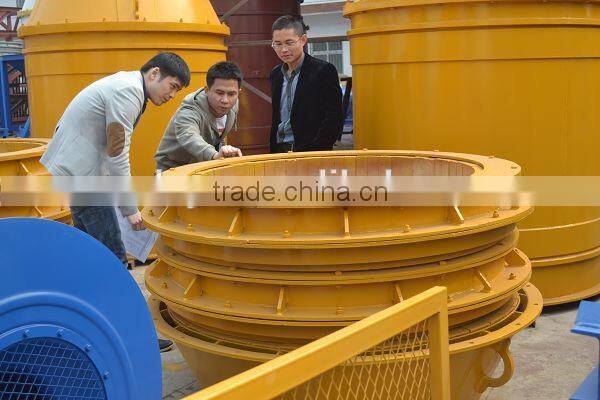

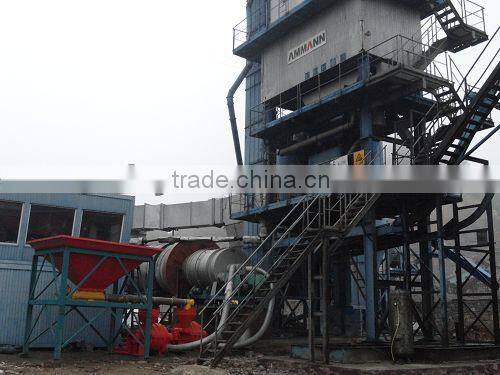

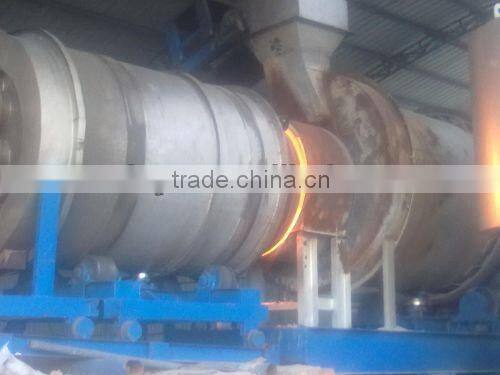

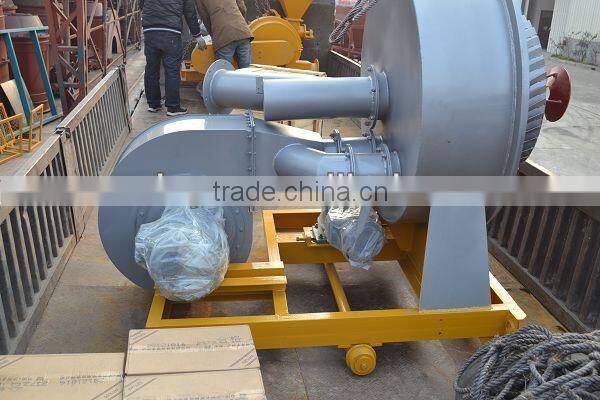

Pictures----- Top 1 Pulverized Coal Burner :
Quality Control (QC):
Third Control
ISO9001:2000 Certificate
European CE Certificate
Environment Protection Design
Commercial Term:
Delivery Time : 30~40 Working Days
Payment Term : T/T or L/C
Transportation : by sea or railway in container.
After Sale Service:
Turn-Key Solutions
Erection & Commissioning Service
Operation Training Service
Spare Parts Supply (all working life)
Our Commitment:
1. Provide technical consultation service for customer, do well technical follow-up.
2. Installation, debug, and provide relevant technical training.
3. Strictly carry out three guarantees (guaranteed quality, guaranteed quantity and guaranteed repair).
4. Ensure spare parts and components available adequately and timely for all working life
Warranty Period : 18 months after install the plant.
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd
