Specifications
20-100t/h Drum Asphalt Mixer5.5-7kg/t
ISO9001, ISO14001, CE,Gost
Drum Asphalt Mixer over 20 years
high tech

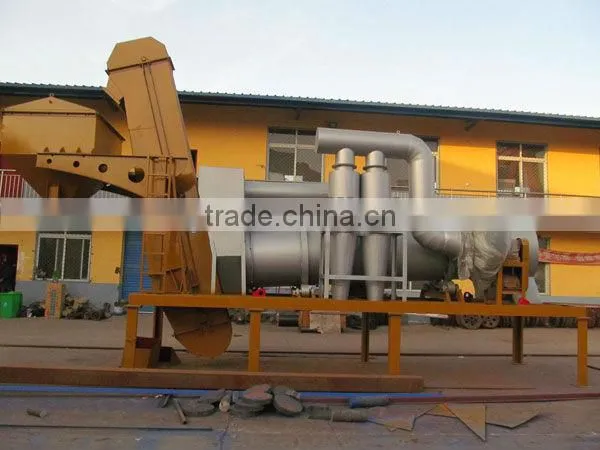

20-100t/h Drum Asphalt Mixer
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for 20-100t/h Asphalt Mixer over 20 years.
Dayu 20-100t/h Asphalt Mixer have three main groups

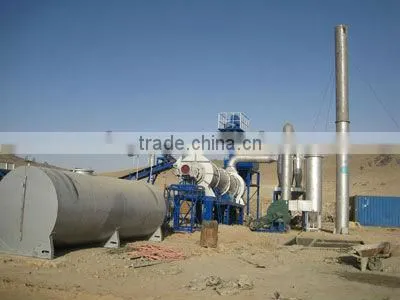

Drum Asphalt Mixer
Batch Asphalt Mixer

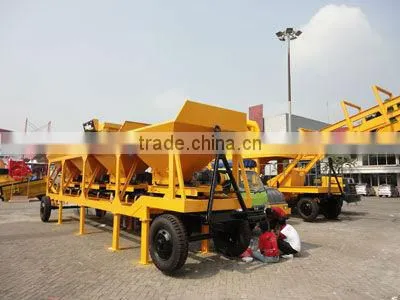

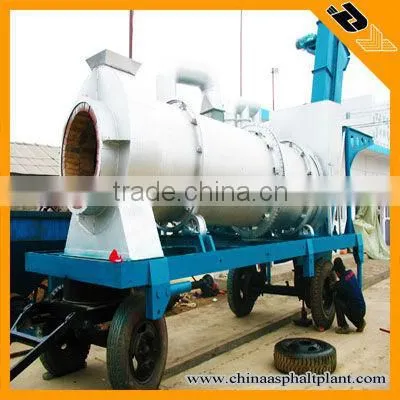

Mobile Asphalt Mixer
The Components of 20-100t/h Drum Asphalt Mixer including Four Bin Feeder, Vibrating Screen System, Slinger Conveyor, Dryer Drum, Bitumen Tanks, Multicylone Exhaust, Load Out Conveyor, Mineral Filler, Control Cabin and Ldo Tank, which can working with good quality and high efficiency.
Main Parameters of 20-100t/h Drum Asphalt Mixer DHB Series
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |

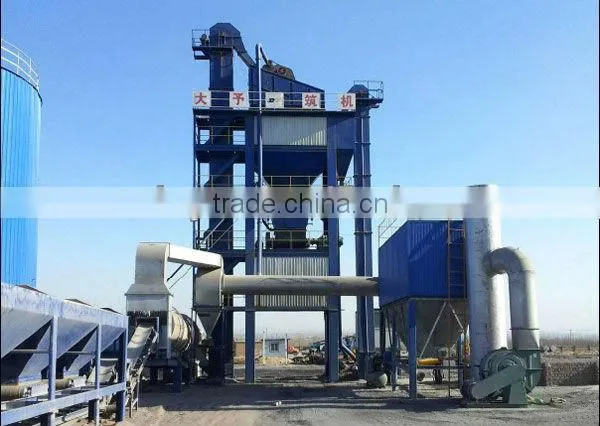

Batch Asphalt Mixer mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Batch Asphalt Mixer is one of the most popular products of Dayu for the high efficiency and excellent quality.
Main Parameters of Batch Asphalt Mixer
| Type | Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
Warranty Period : 12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd
