Mobile Phone NFC / Magnetic Card Reader ACR35

Mobile Phone NFC / Magnetic Card Reader ACR35 photo-1

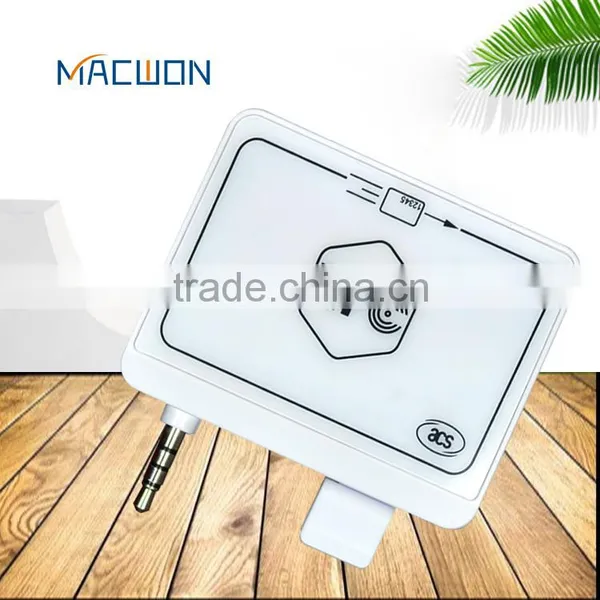

Mobile Phone NFC / Magnetic Card Reader ACR35 photo-2
Mobile Phone NFC / Magnetic Card Reader ACR35 photo-3
US$ 35 - 65 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
NFC reader
Model Number:
ACR_35
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name NFC reader
Model Number ACR_35
Product Description

Mobile Phone NFC/Magnetic Card Reader ACR35

ACR35 NFC MobileMate Card Reader is the perfect tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost.

With a rechargeable Lithium-ion battery and standard 3.5 mm audio jack interface, the ACR35 NFC MobileMate can seamlessly extend the usefulness of any mobile device. It delivers NFC reader functionality and mobility, which allows you to use NFC and contactless applications, even for mobile readers without built-in NFC functionality.

ACR35 NFC MobileMate uses AES-128 encryption algorithm and DUKPT Key Management system to secure your data.

Portable. Modern. Versatile. Compact. ACR35 NFC MobileaMate Card Reader is a handy and lightweight card reader that is perfect for users who wish to transact securely while on the go.

Features

3.5mm Audio Jack Interface
Powered by a Lithium-ion battery (rechargeable through PC-linked mode)
Smart Card Reader:
      Built-in antenna for contactless tag access, with reading distance of up to 50mm (depending on tag type)
      Supports ISO 14443 Part 4 Type A and B cards
      Supports MIFARE
      Supports FeliCa
      Supports ISO 18092 Tags (NFC Tags)*
      Built-in anti-collision feature
      NFC Support:
            Card reader/writer mode
Magnetic Stripe Card Reader:
      Reads up to two tracks of card data (Track 1 / Track 2)
      Capable of bidirectional reading
      Supports AES128 encryption algorithm
      Supports DUKPT Key Management System
      Supports ISO 7810 / 7811 magnetic cards
      Supports Hi-Coercivity and Low-Coercivity magnetic cards
      Support JIS1 and JIS2

specifications
Mode
ACR_35
Dimensions
60.0mm (L) x 45.0mm (W) x 13.3mm (H)
Weight
20 g
Interface
3.5mm 4-pole audio jack
Operating Distance
Up TO 50mm(depends on the tage type)
Supply Voltage
Regulated 5V DC
Supply Current
200 mA(operating);50mA(standby);100mA(normal)
Operating Temperature
0 - 50℃
Operating Frequency
13.56Mhz
Smart Card Interface Support
ISO14443 Type A&B;Mifare;Felica;4 types of NFC(ISO/IEC18092)tags
Compliance / Certifications
ISO 18092,ISO14443,CE,FCC,KC,RoHS 2
Operating System Support
Windows®
Linux®
