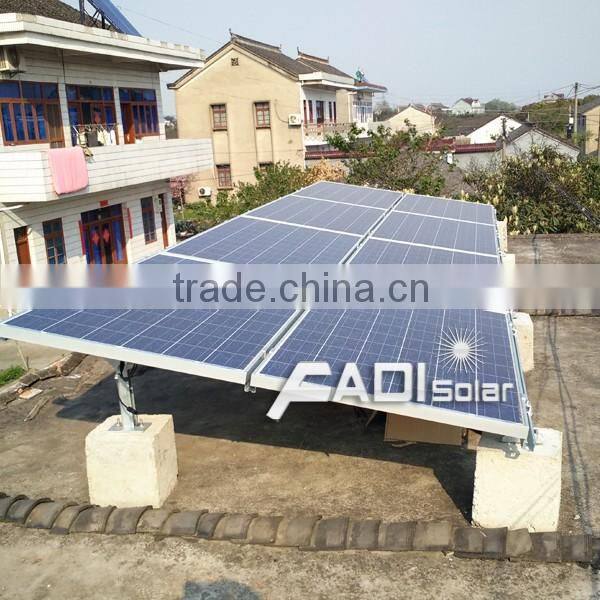

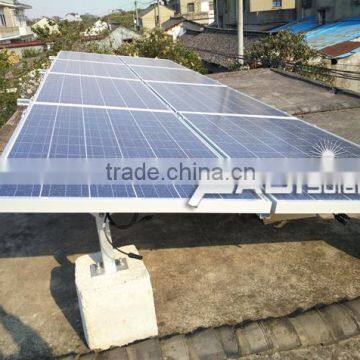

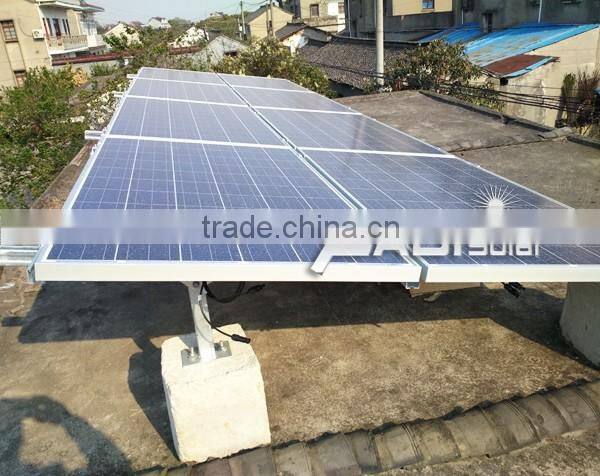

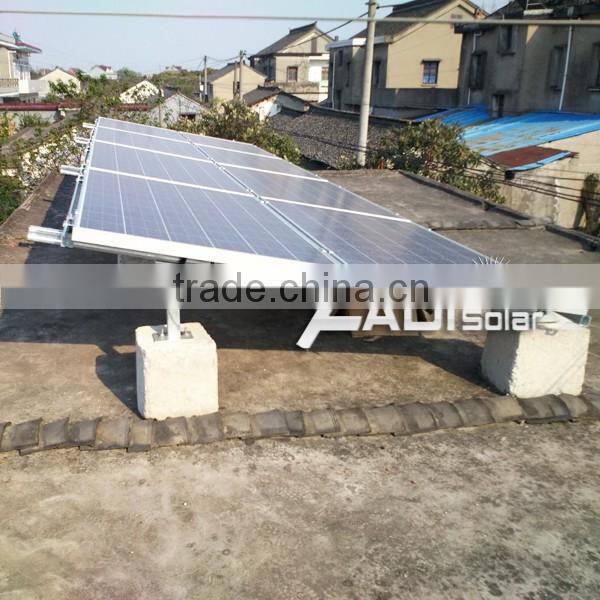

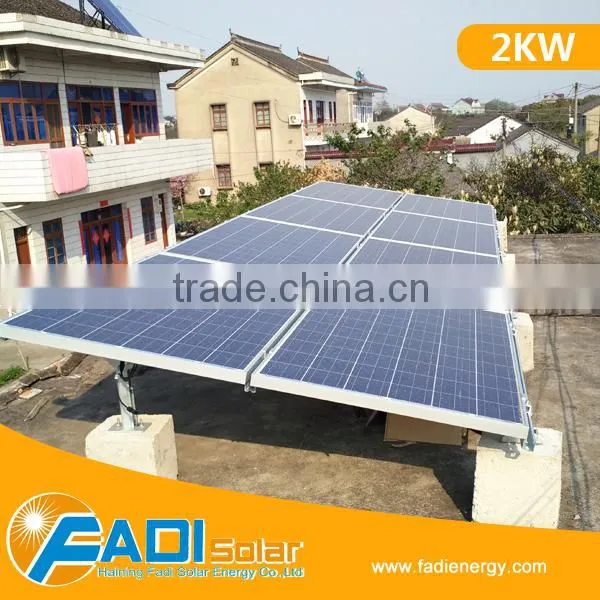

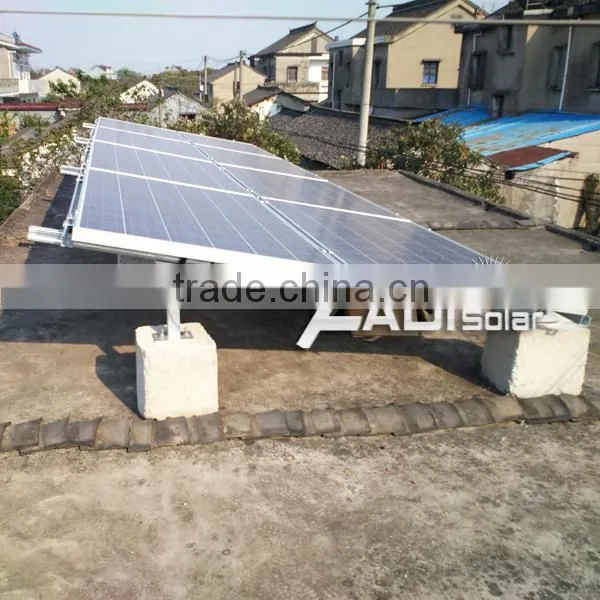

Help Center2KW On Grid Solar Power System for Household (FD-ON/PSP-2000W)
Related Products
-
6KW On Grid Tie Solar Power System Home, Solar Kit System (FD-ON/PSS-6KW)US$ 13,000 - 23,000MOQ: 1 Set -
5KW On Grid Solar Power System for Household (FD-ON/PSP-5000W)US$ 6,000 - 7,000MOQ: 1 Set
-
A Grade Quality Poly Home Solar Systems (FD-60-P260)US$ 118 - 124.8MOQ: 10 Pieces
-
A Grade Quality Mono Crystalline Solar Panel (FD-60-M260)US$ 127.5 - 135MOQ: 10 Pieces
-
4.5KW Off Grid Home Solar Power System, Solar Kit System (FD-OFF/PSP-4.5KW)US$ 6,000 - 10,000MOQ: 1 Set
Off gird solar power system for household
Model: FD-OFF/PSP-2000W
Solar power system working princile:
1. This is an off-grid energy system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power.
2. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply.
3. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply
On Gird Solar power system feature:
1.On Grid Solar Power System is composed of solar panels, inverter, solar panel mounting racks, and other accessories required for a complete system.
2.The solar panels generate electricity at daytime and provide power from DC to AC to the appliances directly through the inverter.
5.The inverter gives an intelligent control of whole system process and provides various protections.
On Grid Solar power system applications:
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
On Grid Solar power system details:
Item No |
FD-ON/PSP-2000W |
System Basic Information | |
Solar Panel Rated Output Power: |
2.0KW |
Suitable for Max Daily Power Consumption: |
8KWH |
Rated Output AC Capacity: |
2.0KW |
Solar Panel | |
Type |
Poly Crystalline Silicon PV Module |
Max Power: |
250W*8pcs |
Vmp: |
30.6V |
Size: |
1637×992×40mm |
Weight: |
18.5kg/pc |
25 years power output guarantee | |
(Note: 10pcs panels in series as a string,2 strings in parallel) | |
Inverter (On Grid) | |
MPPT Voltage range |
125-500V |
Max DC Power |
2000W |
Nominal DC Power(W) |
2600W |
Starting voltage |
80V |
Max DC Current |
10A |
Number of Connectors |
2 |
Number of MPPTs |
2 (can parallel) |
Norminal AC Power |
2KW |
Max AC Power |
2KW |
Max AC Current |
10A |
Norminal AC Output |
50/60Hz:230ac |
AC Output range |
45~55Hz/55~65Hz; 180~270Vac |
THDi |
<1.5% |
Power Factor |
0.8 leading~0.8lagging |
Grid Connector |
Single Phase |
Type |
Off grid type, automatic power tracking, |
Efficiency |
97.6% |
Dimensions |
344*274.5*128mm |
Weight |
7.5KGS |
Mounting |
Wall bracket |
Ambient temperature range |
-25~60°C |
Relative humidity |
0~95% |
Max. operating altitude |
4000m(>3000m derating) |
Protection degree |
IP65 |
Night power consumption(W) |
<1 |
Noise emision(dB) |
<25 |
Display |
LCD |
Communication |
USB2.0; RS485 or WiFi |
Warranty |
5years |
Solar panel rack | |
Ground or flat type mounting rack, including complete fittings; galvanized steel material | |
(Other types of racks can be customized as per client's requirement) | |
Cables |
4mm2 size cable |
Certifications |
CE RoHS |
Our solar power system production line:
