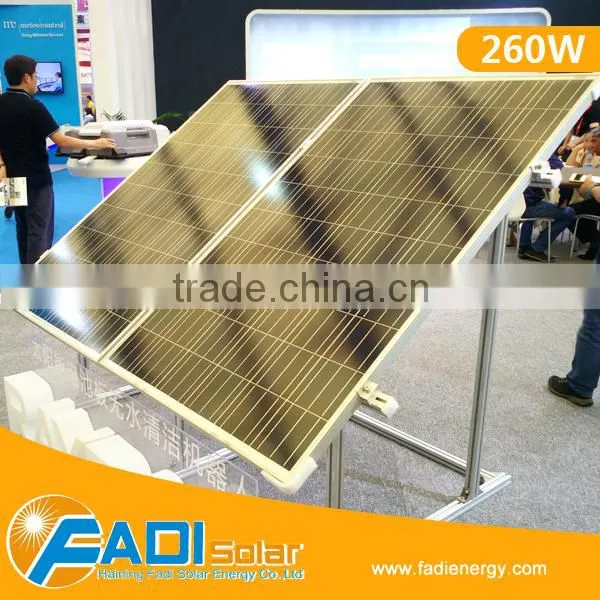

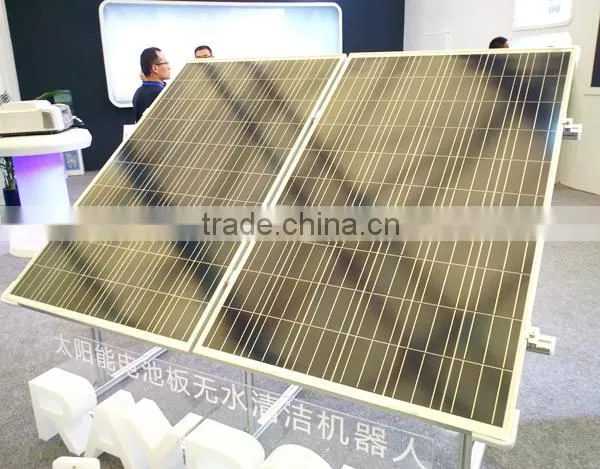

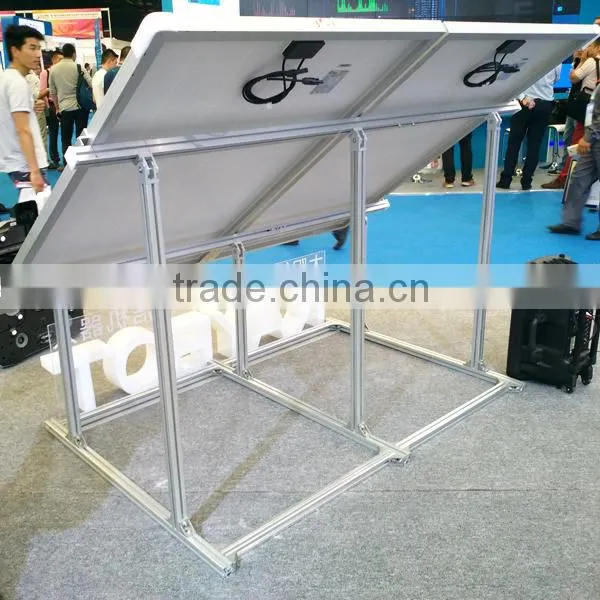

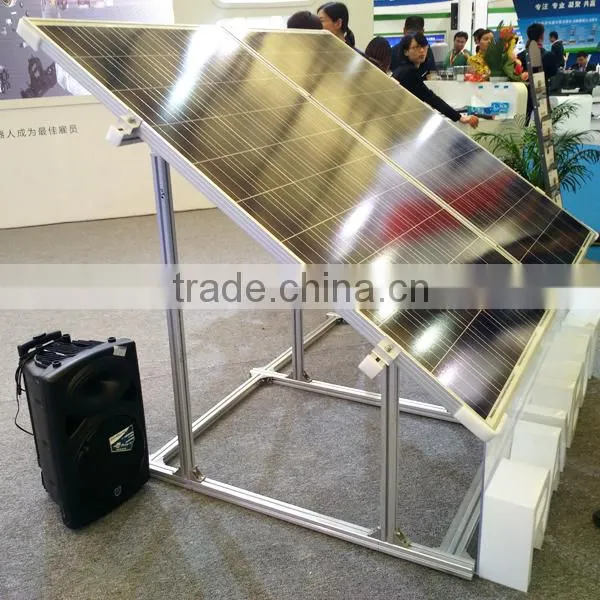

A Grade Quality Poly Home Solar Systems (FD-60-P260)

Name: A Grade Quality Poly Home Solar Systems (FD-60-P260)
Brand: home solar systems,FADI,OEM
SKU: 134510033

US$ 118 - 124.8 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

home solar systems,FADI,OEM

Model Number:

FD-60-P260

Haining Fadi Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name home solar systems,FADI,OEM

Model Number FD-60-P260

Material Monocrystalline Silicon

Size 1640*992*40mm

Number of Cells 60(6*10)pcs

Max. Power 260W

Home Solar Systems details:

Model:FD-60-P260

Home solar system technical data:

STC	FD-60-P230	FD-60-P235	FD-60-P240	FD-60-P245	FD-60-P250	FD-60-P230	FD-60-P260
Maximum Power	230W	235W	240W	245W	250W	255W	260W
Module Efficiency	14.10%	14.35%	14.66%	14.96%	15.30%	15.60%	16.00%
Maxi Power Current	7.62A	7.72A	7.895A	8.033A	8.23A	8.31A	8.47A
Maxi Power Voltage	29.5V	30.2V	30.4V	30.5V	30.4V	30.6V	30.7V
Short Circuit Current	8.31A	8.59A	8.718A	8.781A	8.81A	8.84A	8.93A
Open Circuit Voltage	36.8V	36.8V	37.2V	37.2V	37.6V	37.7V	37.8V
Power Tolerance	0~+5W
Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃)
Mechanical Characteristics
Cell Type			Polycrystalline 156x156mm,60(6x10)pcs in series
Glass			High Transmission,Low Iron,Tempered Glass
Frame			Anodized Aluminium Alloy
Junction box			IP65/IP67 rated,with bypass diodes

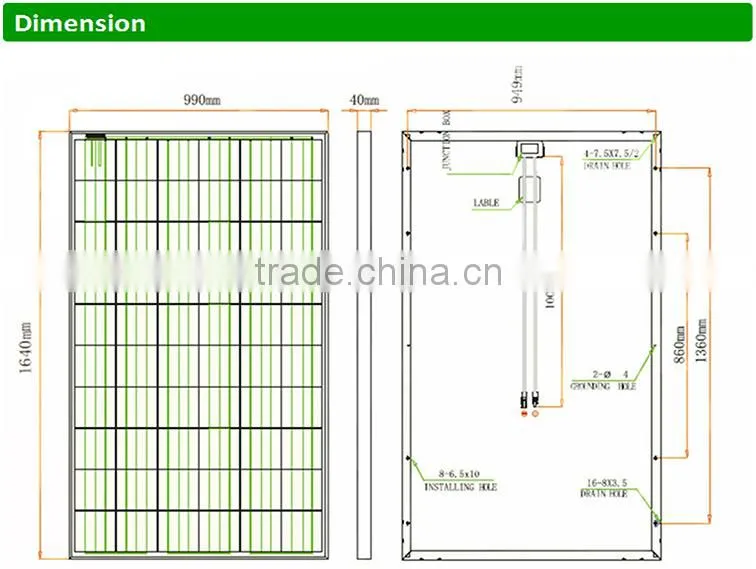

Dimension			1640x990x35/40mm
Output Cable			4mm2(EU)/12AWG(US),1000mm²
Weight			19Kg
Installation Hole Location			See Drawing Above
No.of Bypass Diodes			3/6
