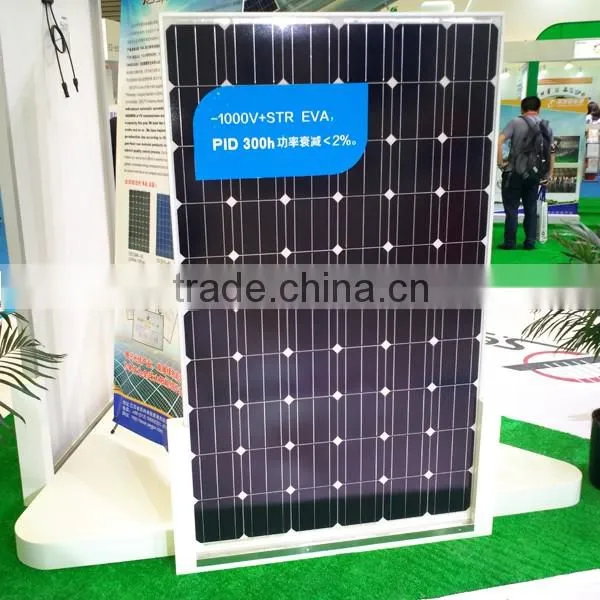

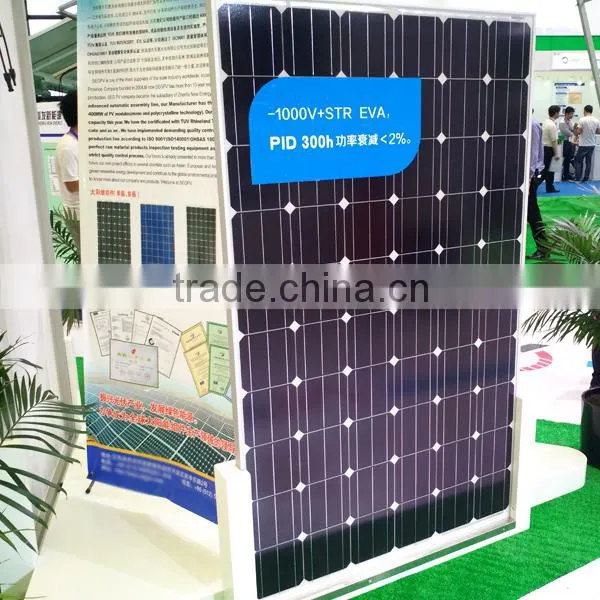

A Grade Quality Mono Crystalline Solar Panel (FD-60-M260)
US$ 127.5 - 135
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
solar panel,FADI,OEM
Model Number:
FD-60-M260
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.5KW Off Grid Home Solar Power System, Solar Kit System (FD-OFF/PSP-4.5KW)US$ 6,000 - 10,000MOQ: 1 Set -
3KW Off Grid Solar Energy System,Solar Portable Generator System (FD-OFF/MSS-3KW)US$ 3,000 - 5,000MOQ: 1 Set
-
2KW Off Grid Solar Power System, Solar Kit System (FD-OFF/MSS-2KW)US$ 3,000 - 6,000MOQ: 1 Set
-
2KW Off Grid Solar System, Solar Power System ,Solar Generator System for Farm (FD-OFF/PSSB-2KW)US$ 1,000 - 2,000MOQ: 1 Set
-
30KW Off Grid Wind Solar System, Wind Solar Hybrid System (FD-OFF/WSS-30KW)US$ 20,000 - 50,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
solar panel,FADI,OEM
Model Number
FD-60-M260
Material
Monocrystalline Silicon
Size

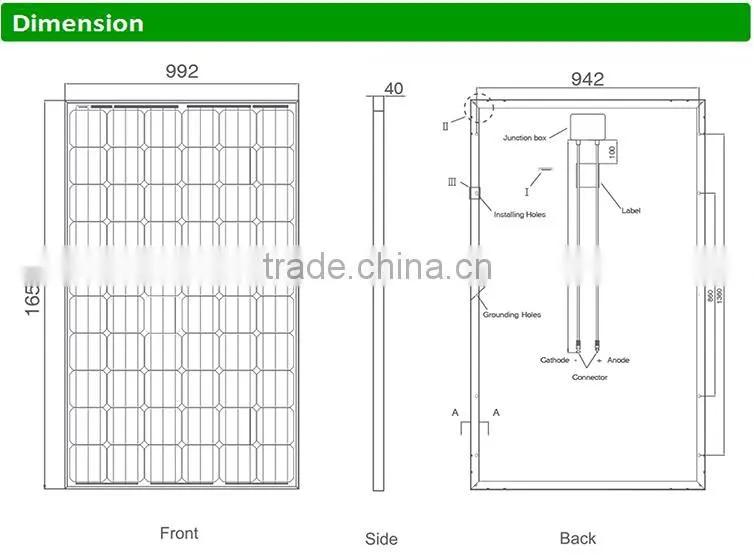

1640*992*40mm
Number of Cells
60(6*10)pcs
Max. Power
260W
Solar panel details:
Model:FD-60-M260
Solar panel technical data:
| Model No | FD-60-M255 | FD-60- M260 | FD-60-M265 | FD-60-M270 | FD-60-M275 | FD-60-M280 |
| Type of cell | Mono | Mono | Mono | Mono | Mono | Mono |
| Maximum power (Wp) | 255W | 260W | 265W | 270W | 275W | 280W |
| Maximum power voltage (V) | 30.1V | 30.3V | 30.5V | 30.8V | 30.9V | 31.0V |
| Maximum power current (A) | 8.48A | 8.58A | 8.69A | 8.78A | 8.71A | 9.02A |
| Open circuit voltage (V) | 37.8V | 37.9V | 38.2V | 38.4V | 38.5V | 38.7V |
| Short circuit current (A) | 8.96A | 9.10A | 9.15A | 9.27A | 9.36A | 9.47A |
| Number of cells (Pcs) | 60pcs 156x156mm A grade quality mono crystalline cell | |||||
| Size of module (mm) | 1640*992*40mm | |||||
| Maximum system voltage (V) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Temperature coefficients of Isc (%) | + 0.1/ °C | + 0.1/ °C | + 0.1/ °C | + 0.1/ °C | + 0.1/ °C | + 0.1/ °C |
| Temperature coefficients of Voc (%) | -0.38/ °C | -0.38/ °C | -0.38/ °C | -0.38/ °C | -0.38/ °C | -0.38/ °C |
| Temperature coefficients of Pm (%) | -0.47/ °C | -0.47/ °C | -0.47/ °C | -0.47/ °C | -0.47/ °C | -0.47/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C | +0.1/ °C | +0.1/ °C | +0.1/ °C | +0.1/ °C | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C | -0.38/ °C | -0.38/ °C | -0.38/ °C | -0.38/ °C | -0.38/ °C |
| Temperature Range | -40°C~+80°C | |||||
| Tolerance Wattage (e.g. +/-3%) | +/-5% | |||||
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | |||||
| Weight per piece (kg) | 19kg | 19kg | 19kg | 19kg | 19kg | 19kg |
| Junction Box Type | ( TUV ) | ( TUV ) | ( TUV ) | ( TUV ) | ( TUV ) | ( TUV ) |
| Connectors and Cables Type | (TUV) | (TUV) | (TUV) | (TUV) | (TUV) | (TUV) |
| Length of Cables (mm) | 900m | 900m | 900m | 900m | 900m | 900m |
| Cell Efficiency (%) | 16% | 16% | 16% | 16% | 16% | 16% |
| Output tolerance (%) | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
| Frame (Material, Corners, etc.) | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Warranty | 10 Years products warranty and 25 years 80% of power | |||||
| Standard Test Conditions | AM1.5 1000W/m2 25°C | |||||
| Module Efficiency | 15.69% | 16.00% | 16.30% | 16.61% | 16.92% | 17.23% |
Solar panel production line:
