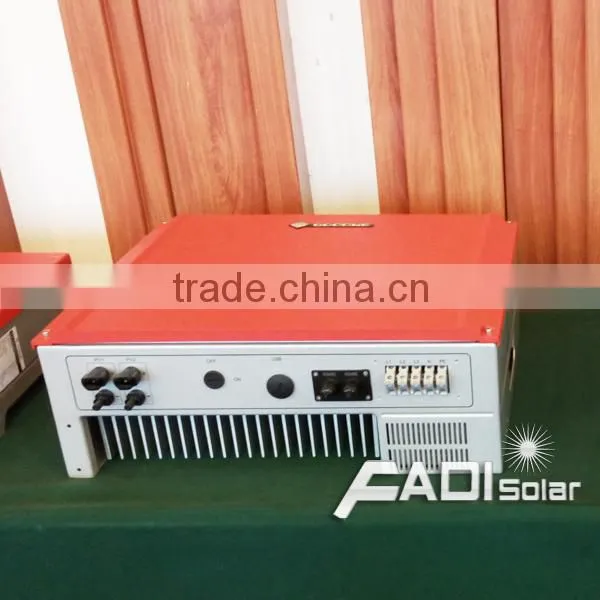

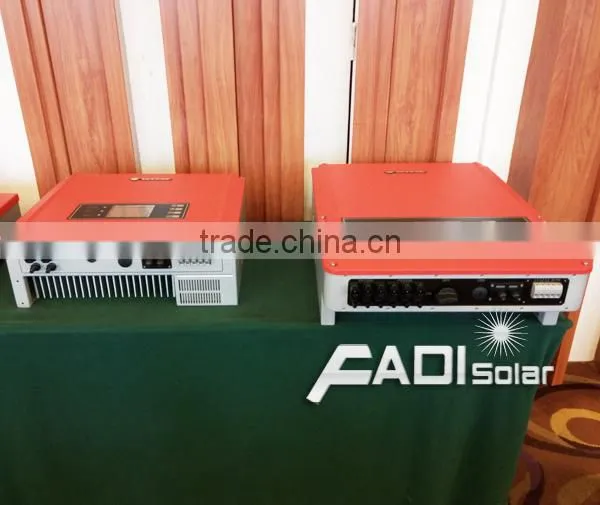

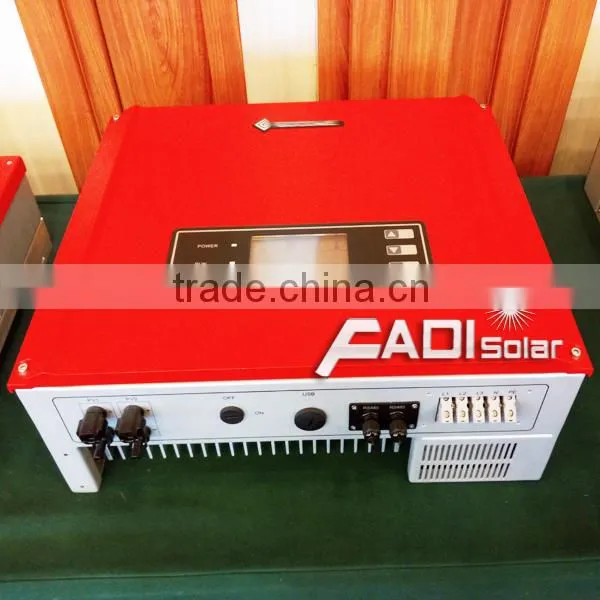

6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT)

6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) thumbnail-1
6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) thumbnail-2
6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) thumbnail-3
6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) thumbnail-4
6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) photo-1

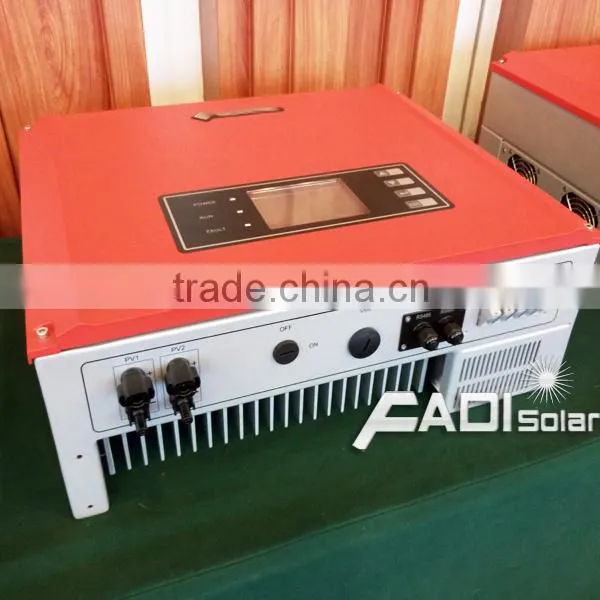

6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) photo-2
6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) photo-3
6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT) photo-4
US$ 1,030 - 1,031 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Solar Inverter ,OEM,FADI
Model Number:
FD-6000-DT
Contact Supplier Request Quote Chat Now
Haining Fadi Solar Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Solar Inverter ,OEM,FADI
Model Number FD-6000-DT
Specification Normal
Application Commercial
Output Voltage (V) AC 380V
Load Power (W) Depend
Solar Power (W) 6KW
Work Time (h) 24 Hours

Solar Inverter :

Model: FD-6000-DT



Fadi smart DT series grid tie solar inverter is typically designed for the home solar systems, covering 4kW/5kW/6kW.By adopting cutting-edge technology of photovoltaic field, it provides three phase AC output, making home system connection well balanced.



Solar inverter features:

1.Maximum Efficiency up to 97.8%

2.European Efficiency up to 96.7%
3.MPPT Efficiency up to 99.9%

4.DC switch
5.IP65 dust-proof and water-proof
6.45°C full-load output

7.Super large 5-inch LCD
8.Lighter than similar products
9.Multiple monitoring and communication
10.Up to 80 pieces can be integrated in one system



Grid Tie Solar inverter specification:

Model No

FD-4000-DT

FD-5000-DT

FD-6000-DT

FD-4000L-DT

FD-5000L-DT

FD-6000L-DT

DC Input Data

Max. DC  power(W)

4200

5200

6200

4200

5200

6200

Max. DC voltage (V)

1000

600

MPPT voltage range (V)

200~800

200~550

Starting  voltage (V)

180

180

Max. DC current (A)

11/11

11/11

No. of  DC connectors

2

2

No. of  MPPTs

2(can parallel)

2(can parallel)

DC connector

AMPHENOL/ MC4 (Optional)

AMPHENOL/ MC4 (Optional)

AC Output Data

Norminal AC power(W)

4000

5000

6000

4000

5000

6000

Max. AC power(W)

4000

5000

6000

4000

5000

6000

Max. AC current(A)

7

8.5

10

7

8.5

10

Norminal AC output

50/60Hz; 400Vac

50/60Hz; 400Vac

AC output range

45~55Hz/55~65Hz; 310~480Vac

45~55Hz/55~65Hz; 310~480Vac

THDi

<1.5%

<1.5%

Power factor

0.90leading…0.90lagging

0.90leading…0.90lagging

Grid connection

3W/N/PE

3W/N/PE

Efficiency

Max. efficiency

97.80%

96.80%

Euro efficiency

>96.7%

>95.5%

MPPT adaptation efficiency

99.90%

99.90%

Protection

Residual current monitoring unit

Integrated

Integrated

Anti-islanding protection

Integrated

Integrated

DC switch

Integrated(optional)

Integrated(optional)

AC over current protection

Integrated

Integrated

Insulation monitoring

Integrated

Integrated

Certification & Standards

Grid regulation

VDE-AR-N 4105,   AS4777.2/.3, ERDF-NOI-RES_13E;VDE0126-1-1, EN50438 ,G83/2

VDE-AR-N 4105,   AS4777.2/.3, ERDF-NOI-RES_13E;VDE0126-1-1, EN50438 ,G83/2

Safety

IEC62109-1&-2, AS3100

IEC62109-1&-2, AS3100

EMC

EN 61000-6-1,EN 61000-6-2,EN 61000-6-3,EN 61000-6-4, EN 61000-3-2, EN 61000-3-3

EN 61000-6-1,EN 61000-6-2,EN 61000-6-3,EN 61000-6-4, EN 61000-3-2, EN 61000-3-3

General Data

Dimensions (WxHxD)

516*474*192mm

516*474*192mm

Weight (kg)

24

24

Mounting

Wall bracket

Wall bracket

Ambient temperature range

-25~60°C (>45°C derating)

-25~60°C (>45°C derating)

Relative humidity

0~95%

0~95%

Max. operating altitude

2000m

2000m

Protection degree

IP65

IP65

Topology

Transformerless

Transformerless

Night power consumption(W)

<1

<1

Cooling

Nature Convection

Nature Convection

Noise emision(dB)

<30

<30

Display

5.0'' LCD

5.0'' LCD

Communication

USB2.0; RS485 or WiFi

USB2.0; RS485 or WiFi

Standard warranty(years)

5/10/15/20/25( optional)

5/10/15/20/25( optional)



6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT)



6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT)



6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT)



6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT)

Solar on-grid Inverter workshop:

6KW DC to AC PV On Grid Solar Inverter /Grid Tie Solar Inverter (FD-6000-DT)
