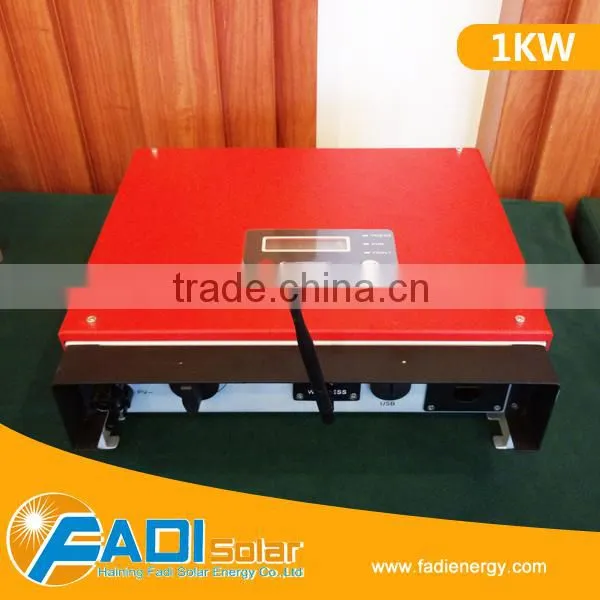

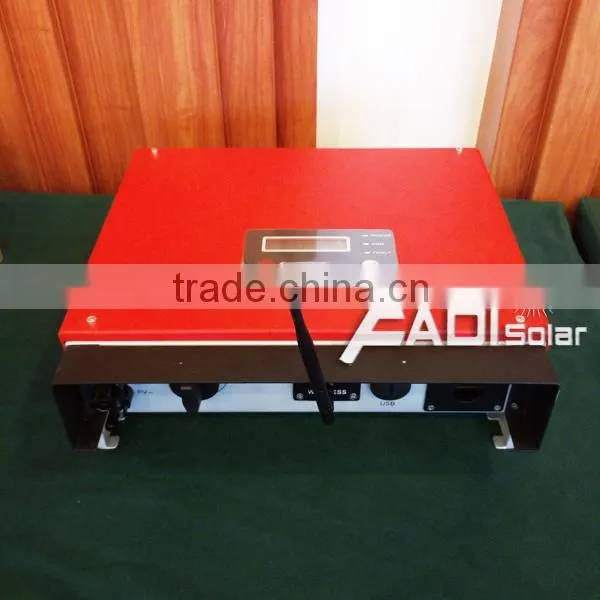

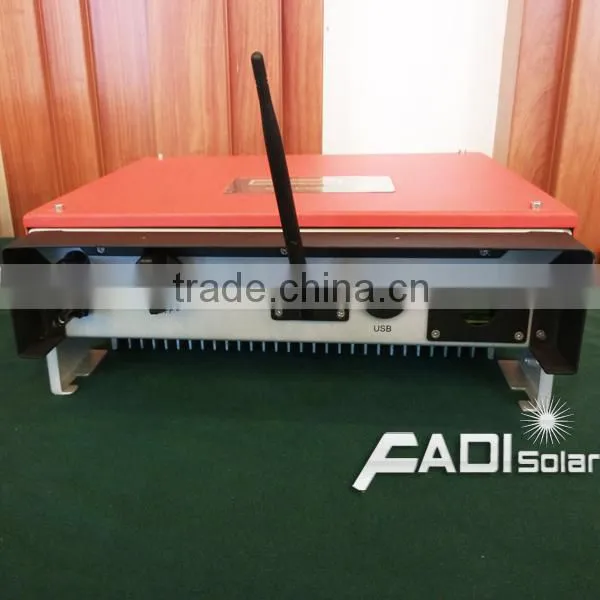

Help Center1KW DC to AC Solar Grid Tied Inverter /Solar Inverter (FD-1000-NS)
Related Products
-
Highy Quality 5KW Solar On Grid and Off Grid Hybrid Inverter (FD- 5048D-ES)NegotiableMOQ: 1 Set -
2KW DC to AC On/Off Hybrid Inverter /Solar Inverter (FD-HY2000-M)US$ 445 - 460MOQ: 5 Pieces
-
300W DC to AC Inverter With Battery Charger (FD-IC-300P)US$ 46 - 50MOQ: 1 Piece
-
500W DC to AC Inverter With Charger (FD-IC-500P)US$ 66 - 70MOQ: 1 Piece
-
3000W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-3000P)US$ 220 - 230MOQ: 1 Piece
Solar Grid Tied Inverter:
Model: FD-1000-NS
Solar grid tied iverter features:
1.Up to 10 safety measurements
2.DC switch
3.IP65 dust-proof and water-proof
4.45°C full-load output
5.Lower start-up voltage at 80V
6.Wide range of MPPT voltage
7.Wireless monitoring and communication
8.Fanless low-noise design
9.30% lighter than similar products
10.20% Volume optimization
11.Perfect for 3-panel system
Solar grid tied inverter specification:
Model No |
FD-1000-NS |
FD-1500-NS |
FD-2000-NS |
FD-2500-NS |
FD-3000-NS |
Dc Output Data |
|
|
|
|
|
Max. DC power(W) |
1200 |
1800 |
2300 |
2700 |
3200 |
Max. DC voltage (V) |
450 |
500 |
|||
MPPT voltage range (V) |
80~400 |
80~450 |
|||
Starting voltage (V) |
80 |
||||
Max. DC current (A) |
10 |
18 |
|||
No. of DC connectors |
1 |
1 |
|||
No. of MPPTs |
1 |
||||
DC connector |
AMPHENOL/MC4 |
AMPHENOL |
|||
Dc Output Data |
|
|
|
|
|
Norminal AC power(W) |
1000 |
1500 |
2000 |
2500 |
3000 |
Max. AC power(W) |
1000 |
1500 |
2000 |
2500 |
3000 |
Max. AC current(A) |
5 |
7.5 |
10 |
12.5 |
13.5 |
Norminal AC output |
50/60Hz; 230Vac |
||||
AC output range |
45~55Hz/55~65Hz; 180~270Vac |
||||
THDi |
<3% |
||||
Power factor |
0.9 leading~0.9 lagging |
||||
Grid connection |
Single phase |
||||
Efficiency |
|
|
|
|
|
Max. efficiency |
96.50% |
97.00% |
97.00% |
97.50% |
97.50% |
Euro efficiency |
96.00% |
96.00% |
96.00% |
97.00% |
97.00% |
MPPT adaptation efficiency |
99.90% |
||||
Protection |
|
|
|
|
|
Residual current monitoring unit |
Integrated |
||||
Anti-islanding protection |
Integrated |
||||
DC switch |
Integrated(optional) |
||||
AC over current protection |
Integrated |
||||
Insulation monitoring |
Integrated |
||||
Certification & Standards |
|
|
|
|
|
Grid regulation |
G83/2,VDE0126-1-1,AS4777.2&.3,EN50438,ERDF-NOI-RES_13E; |
||||
Safety |
According to IEC62109-1&-2,AS3100 |
||||
EMC |
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3,EN61000-6-4, EN 61000-3-2, EN 61000-3-3 |
||||
General Data |
|
|
|
|
|
Dimensions (WxHxD) |
344*274.5*123mm |
||||
Weight (kg) |
7.5 |
8.5 |
|||
Mounting |
Wall bracket |
||||
Ambient temperature range |
-25~60°C(>45°C derating) |
||||
Relative humidity |
0~95% |
||||
Max. operating altitude |
2000m |
||||
Protection degree |
IP65 |
||||
Topology |
Transformerless |
||||
Night power consumption(W) |
<1 |
||||
Cooling |
Nature convection |
||||
Noise emision(dB) |
<25 |
||||
Display |
LCD |
||||
Communication |
USB2.0; WiFi/RS485 (optional) |
||||
Standard warranty(years) |
5/10/15/20/25(optional) |
||||

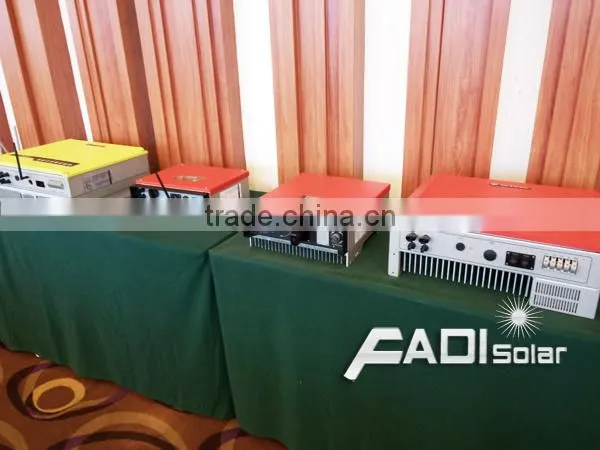

Solar on-grid Inverter workshop:
