Pneumatic Button Bit Grinder

FOB Price

US$ 10 - 300 / Piece

1 Piece(Min. Order)

Port Shanghai Shenzhen etc
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SOLLROC
Model Number	KING,Sandrive, Atlas	Type	Drill Bit
Machine Type	Drilling Tool	Material	Other, diamond
Processing Type	Forging	Use	Well Drilling

Product Description

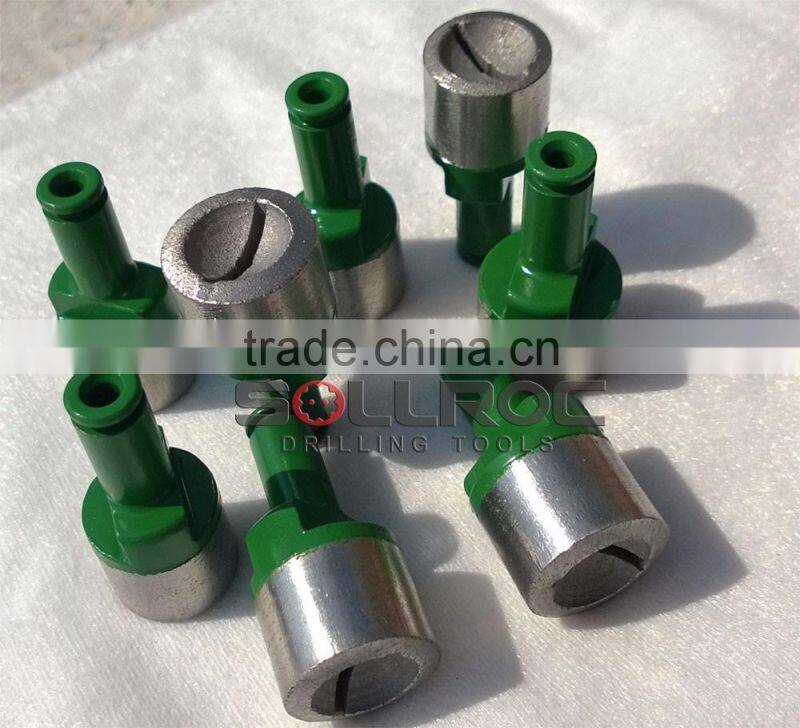

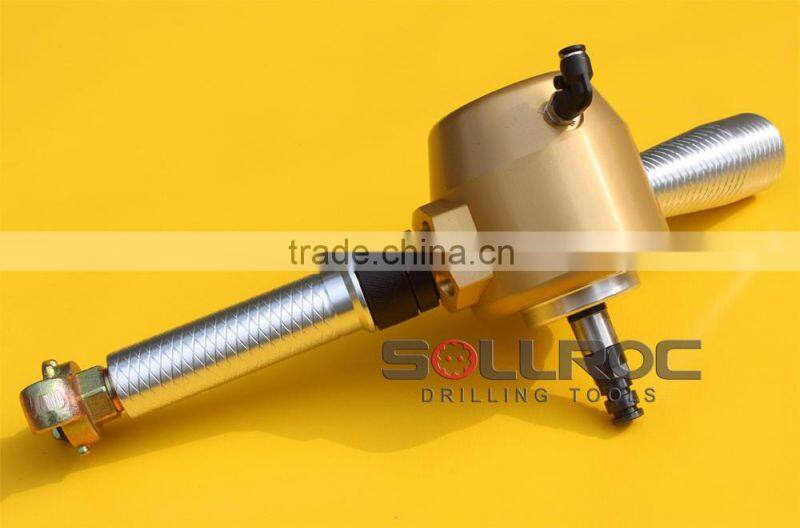

This high powered grinding head, primarily designed to be used in the powerful hand held pneumatic button bit grinder, is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.leading the technological evolution of button bit grinding equipment is our aim. Air hand-held Button bit grinder machine (CME button bit grinder,pneumatic button bit grinder) Grinding machine for button bits, grinding pins, Hexagon grinding cup for drill bit, grinding carbide, button bit, DTH bit, tungsten carbide, air flush, water flush, button bit grinder is used for grinding carbide on button bits such as DTH-button bits, and top hammer percussive bits.

Model	SA220
Air Pressure	5-7 bar (72-100psi)
Air Consumption, max	35L/S, 2m/2min
Water flushing pressure, max	4 bar(Psi)
Ladling speed	22000r/min
Air hole diameter	19mm
Water hole diameter	6mm
For the size of button bits	6-25mm

Type	For button diameter
KING (wing drive) shank=8mm	7mm-20mm
SANDVIK (sandrive) shank=9mm	7mm-20mm
ATLAS (55 drive)	7mm-20mm
Internal HEX	7mm-20mm

Detailed Images

DTH hammers >>

DTH bits >>

RC hammers >>

RC bits > >

Button bits > >

ODEX and concentric system >>

Packing & Delivery

Packing

Ply-wooden cases + pallet.

Delivery time:

2-3 weeks to departure port.
