Eccentric Overburden Casing Drilling ODEX190 System

FOB Price

US$ 500 - 10,000 / Piece

1 Piece(Min. Order)

Port Shanghai Shenzhen any ports
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	SOLLROC
Model Number	ODEX90,ODEX115,ODEX140,ODEX165,ODEX190,ODEX240	Type	Drill Bit
Machine Type	Drilling Tool	Certification	Other, ISO9001
Material	Other, carbide + special steel	Processing Type	Other, heat-treatment + machining process
Use	Well Drilling

Product Description

Futures:

- Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
- Easy soil and groundwater sampling during drilling;
- Possible to measure yield estimate at selected depth in the formation;
- Advantageous in unconsolidated formations with a high risk of caving

Tell me the hole depth and diameter, your hammer type, we can design the project for you.

Specifications:

Model	Casing Max. OD	Casing Max. ID	Min. inner dia. Of casing shoe	Reaming Dia.	Hammer shank
ODEX90	115	102	90	123	DHD3.5/COP32/QL30
ODEX115	142	128	115	152	DHD340/COP44/SD4/QL40/M40
ODEX140	171	157	140	187	DHD350R/COP54/SD5/QL50/M50
ODEX165	196	183	165	211	DHD360/COP64/SD6/QL60/M60
ODEX190	222	205	190	237	DHD360/COP64/SD6/QL60/M60
ODEX240	273	261	240	308	DHD380/COP84/SD8/QL80/M80
ODEX280	324	305	280	378	SD10/NUMA100

Detailed Images

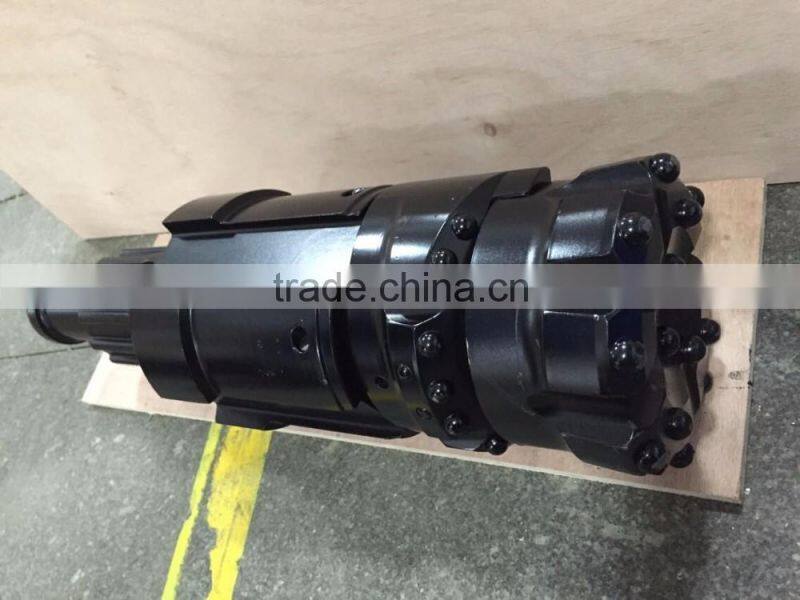

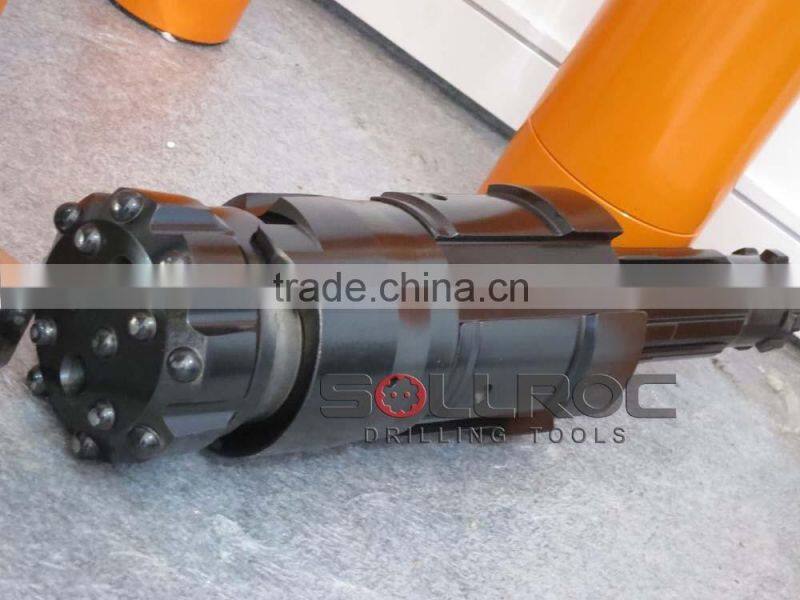

ODEX overburden drilling system:

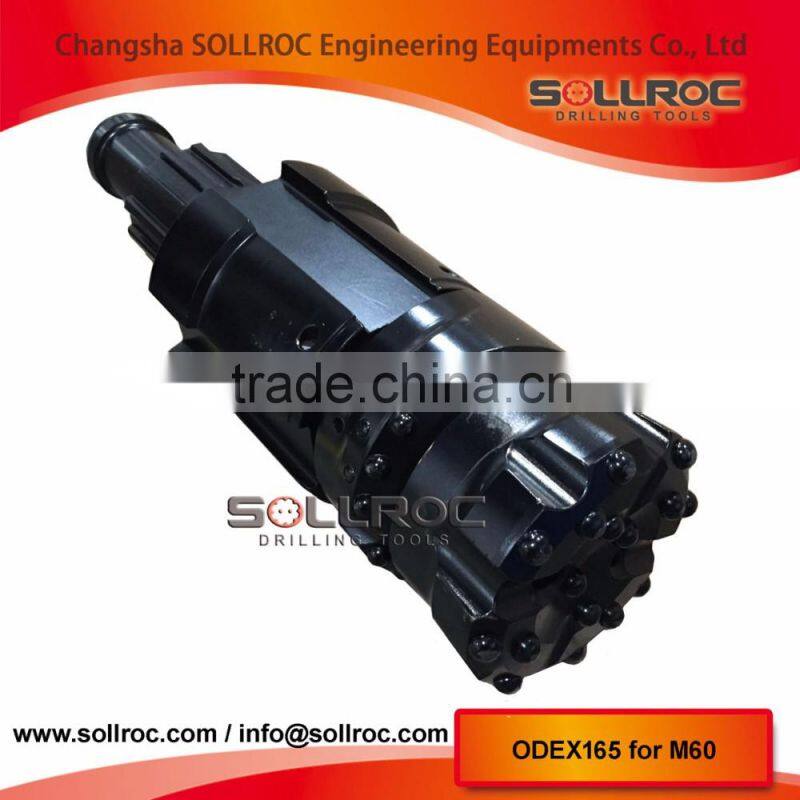

ODEX165 for M60

ODEX115 for DHD340

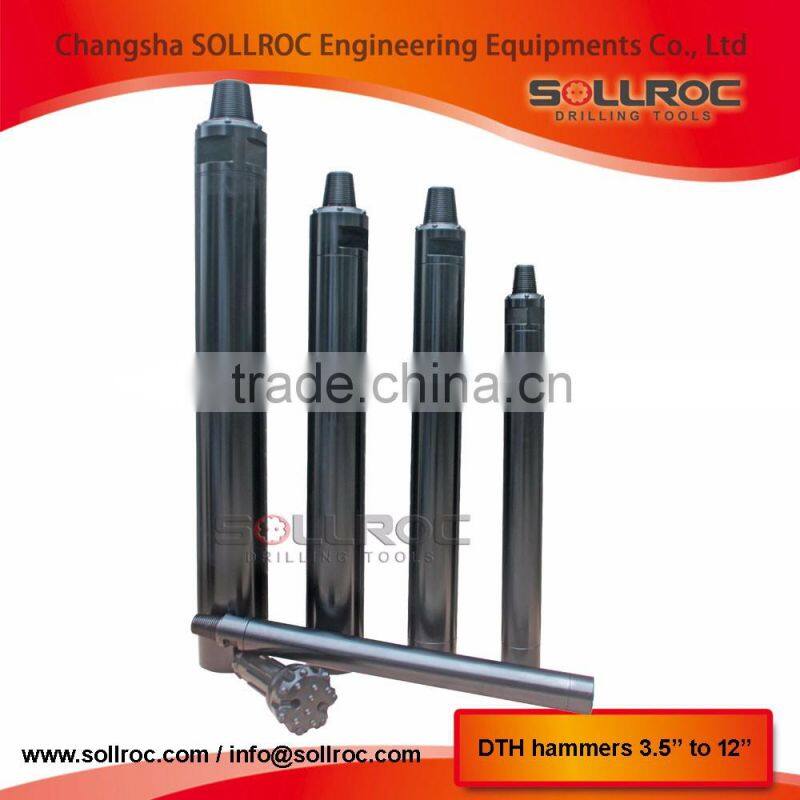

DTH hammers >>

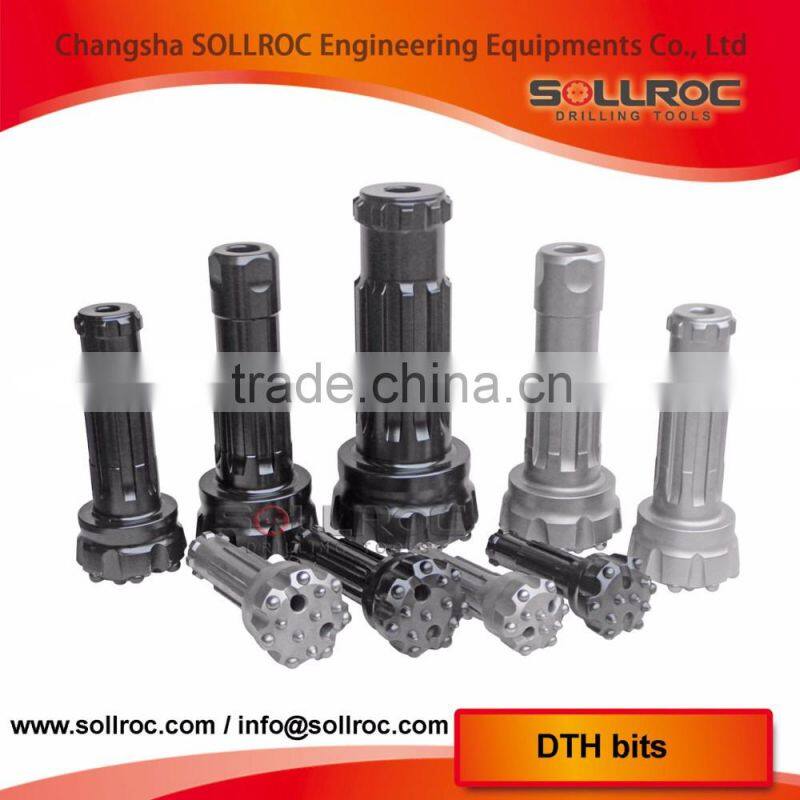

DTH bits >>

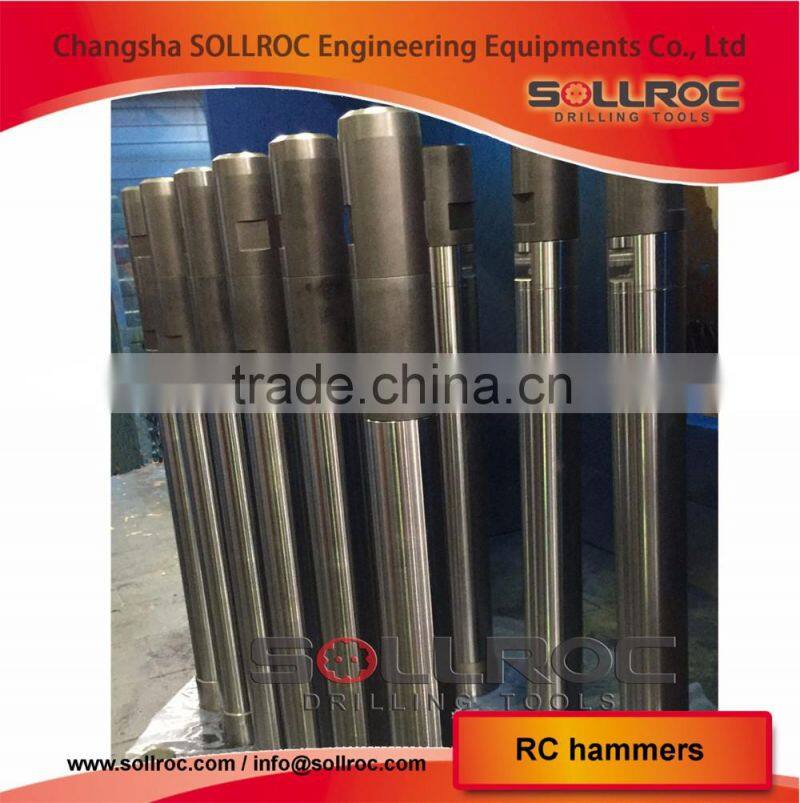

RC hammers >>

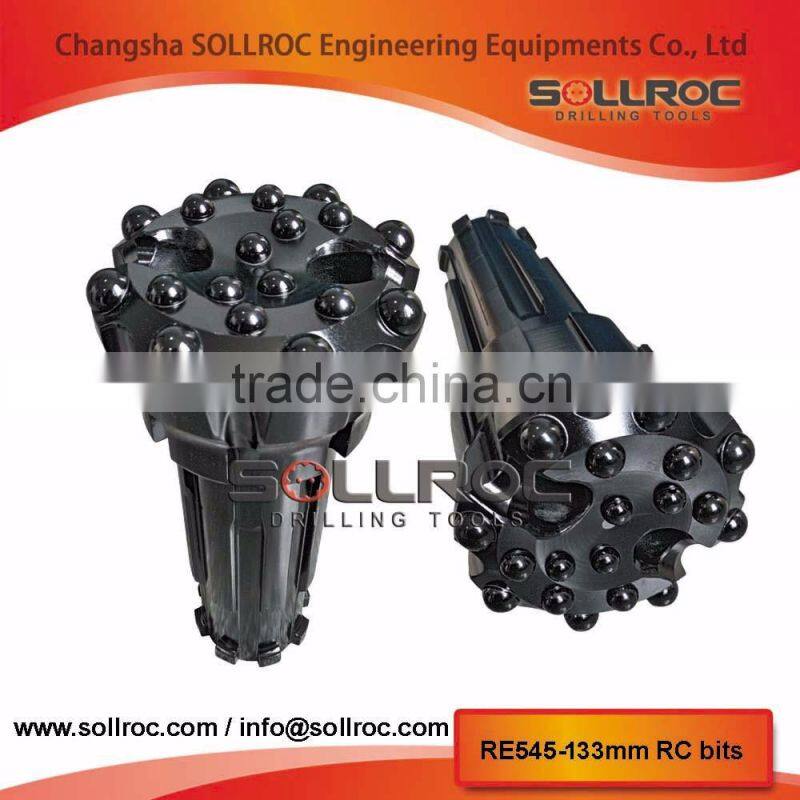

RC bits > >

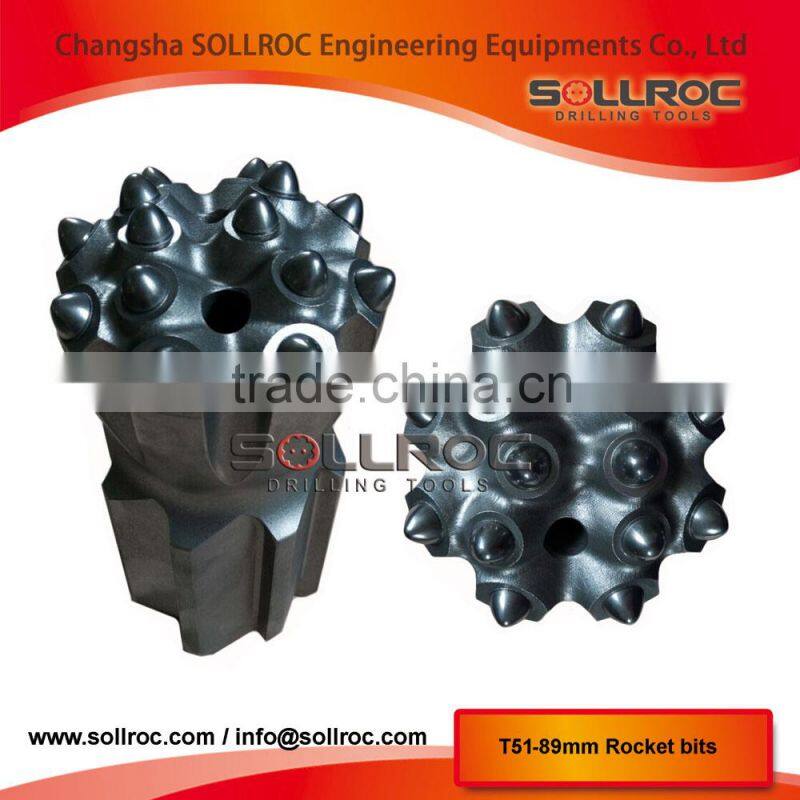

Button bits > >

ODEX and concentric system >>

Packing & Delivery

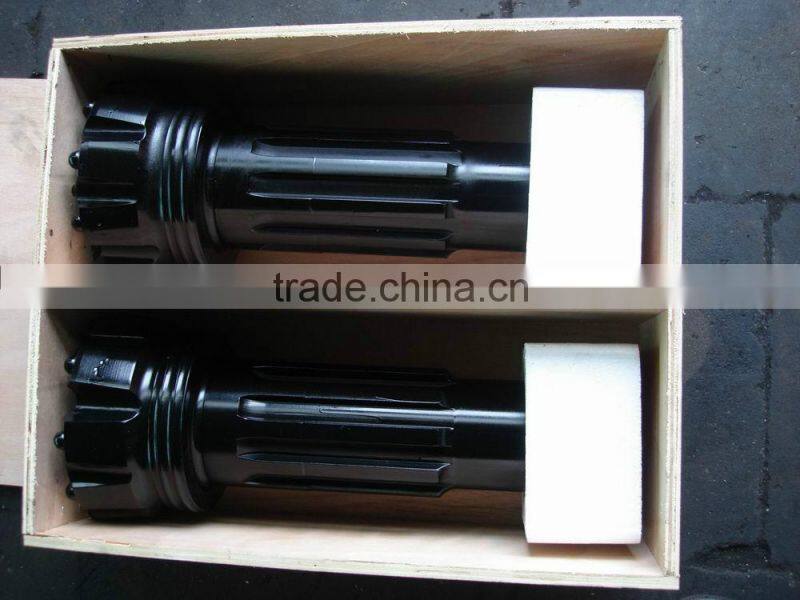

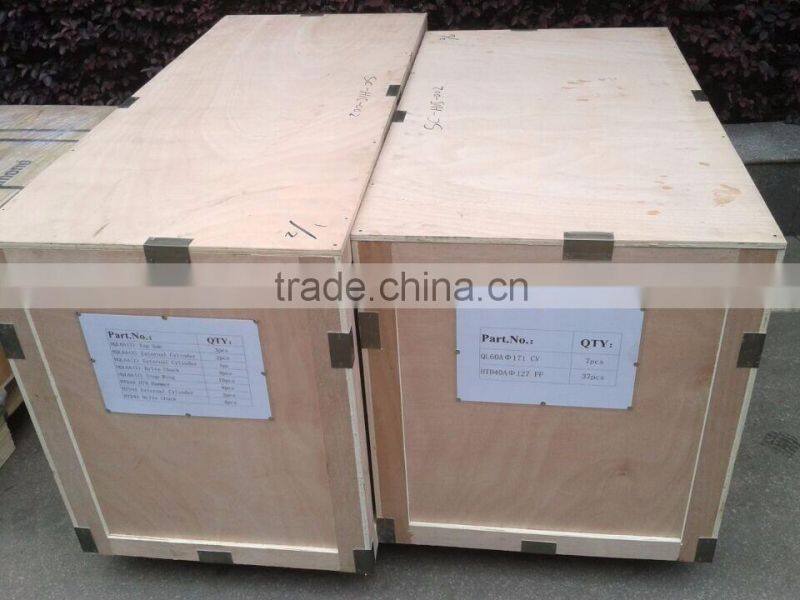

Ply-wooden cases

Ply-wooden cases + pallet

Delivery: By sea, By air or by Express
