China factory price Stainless steel rice mill bucket elevator for bulk material
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Stable performance computer Board Recycling Machine
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
- Cement dry ash bulk machine telescopic ring cloth bag DN300/600 thickened wear-resistant
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
Product Details
Place of Origin: | Hubei, China | Brand Name: | TianYi | Model Number: | TY TD |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

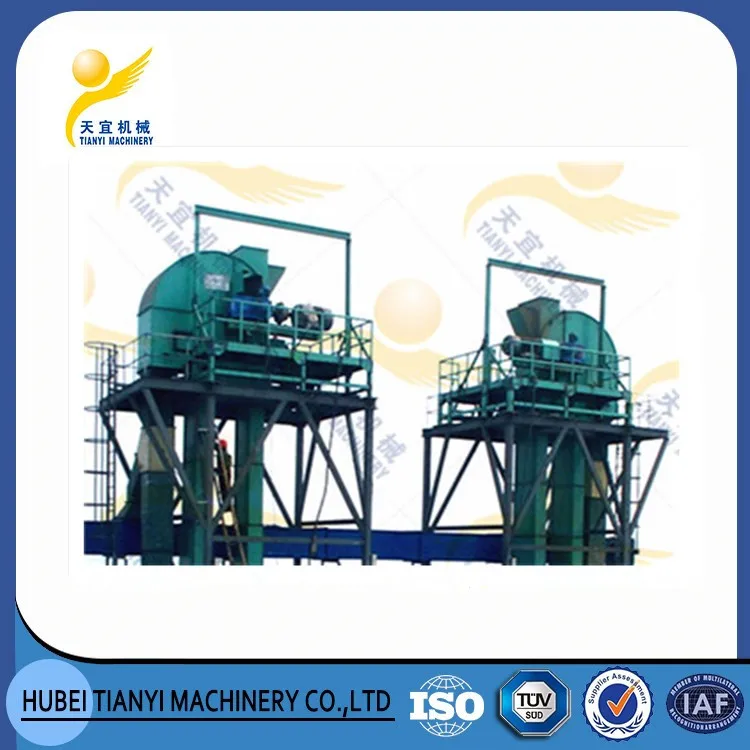

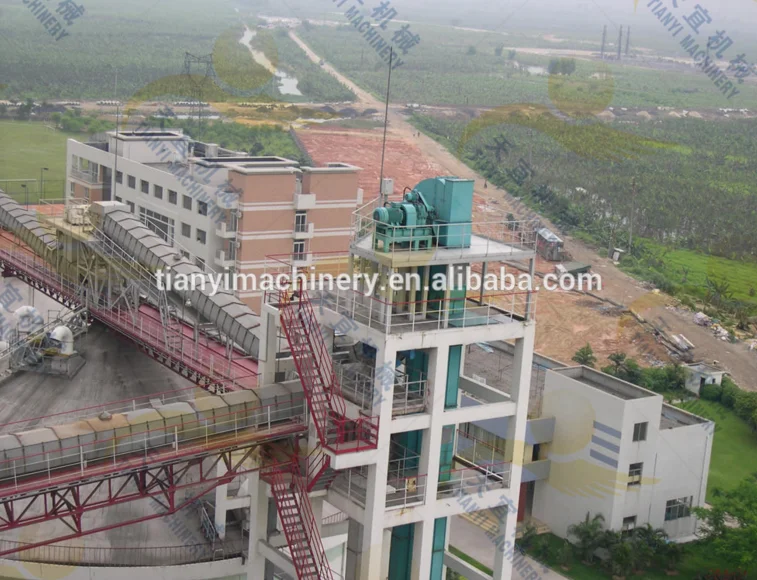

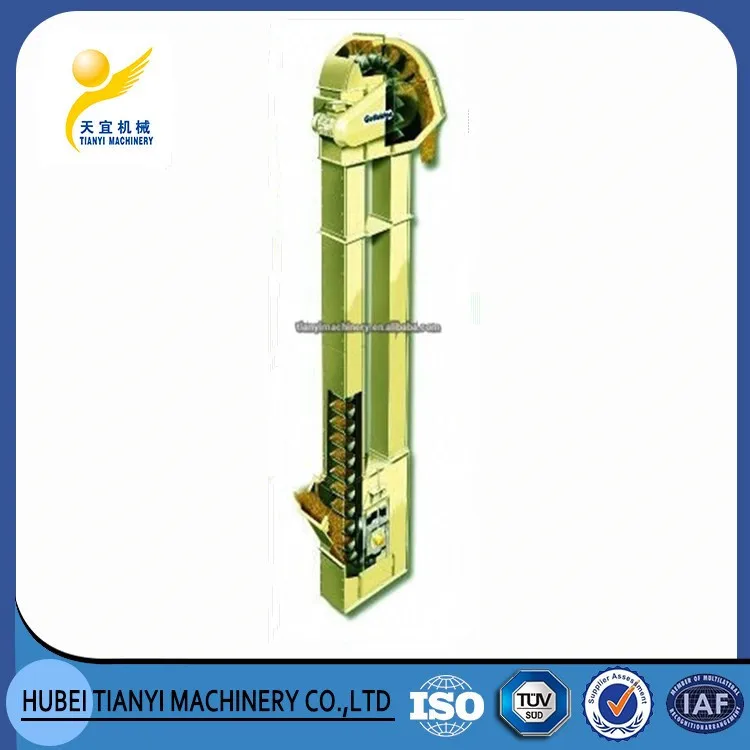

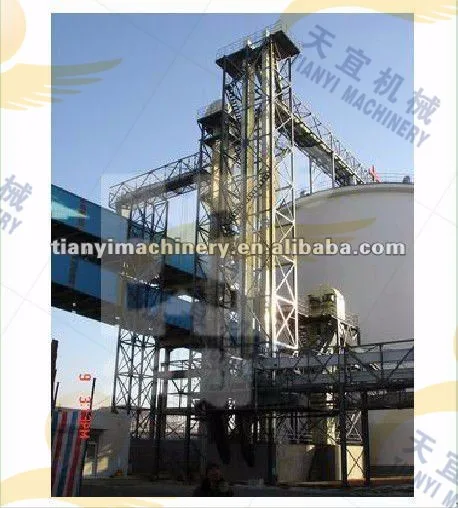

China factory price Stainless steel rice mill bucket elevator for bulk material
China factory price Stainless steel rice mill bucket elevator for bulk material
TD series Bucket Elevator, full name is belt type bucket elevator, with the high-strength rubber belt for traction parts.
TD Series Bucket Elevator is suitable for those powder, granular, small block of no grinding bulk material, such as grain, coal, gravel, sand, coke foam, cement, gravel mine, silicate etc. The temperature of the conveying material should not be commonly higher than 80 ℃; When choosing heat- resistant belt, it should not exceed 200 ℃.
Main Features
1) Adopting steel cord belt as drag parts.
2) The head section, tail section and middle section of this elevator made effective seal processing.
3) This elevator is centrifugal discharging, pick and get charging.
4) Driving device adopting vertical shaft reducer and fluid coupling.
5) The bottom section of this machine have level indicator and speed sensor, Monitor the running status of elevator.
Machine Parts
Name: Bucket elevator belt & buckets
Brand: TIANYI
Original: CHINA
Chain is the short pitch plate type sleeve roller drag chain.
Bucket is fixed on chain plate with bolt.Name: steel buckets
Brand: TIANYI
Original:CHINA

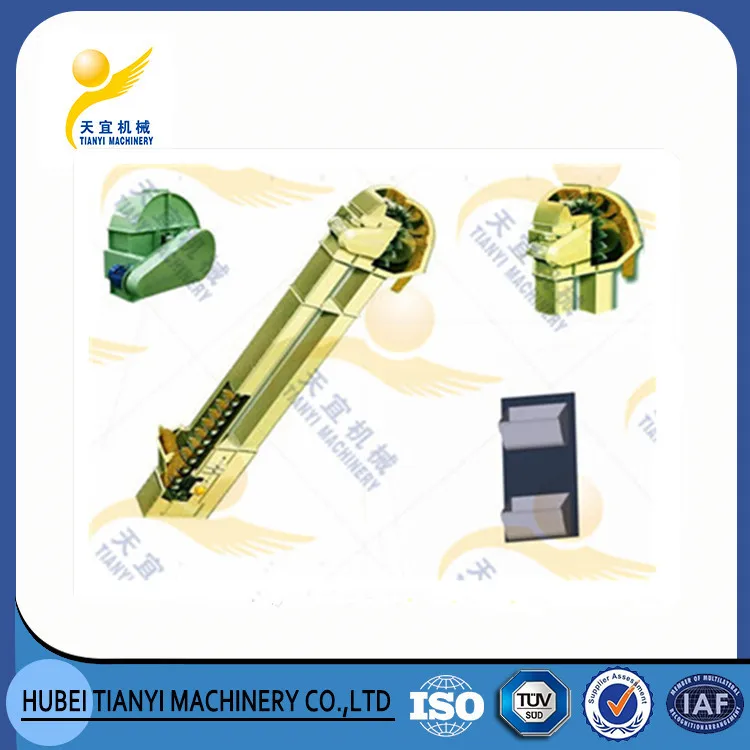

Head section & Tail section
Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
Pre-Sales Service
* Inquiry and consulting support.
* Technical drawing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
China Vertical heavy lift transportation bucket transporter /elevator for grain
Rubber Belt type grain bucket elevator for sale
TUV certificated vertical grain bucket elevator conveyor for sale
