China Professional Large Capacity High Speed Carbon Steel Wheat Belt Bucket Elevator Conveyor

China professional large capacity high speed Carbon steel wheat belt bucket elevator conveyor

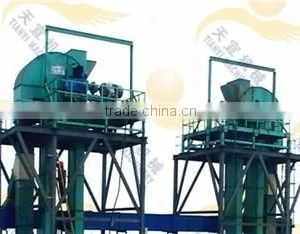

TZD Bulk grain silo bucket elevator is specially designed as per the demand of the port and the medium-sized grain depot in China, the largest lifting height is 65m, the max capacity is 800t/h.

Main Features

1) Simple structure ,easy in installation and maintenance.

2) Adopting best rubber belt and plastic buckets.

3) Huge capacity can reach to 800t/h.

4) Food grade standard.

Machine Parts

Name:  Belt  & buckets

Brand: TIANYI

Original: CHINA

Name:   steel buckets
Brand: TIANYI
Original:CHINA

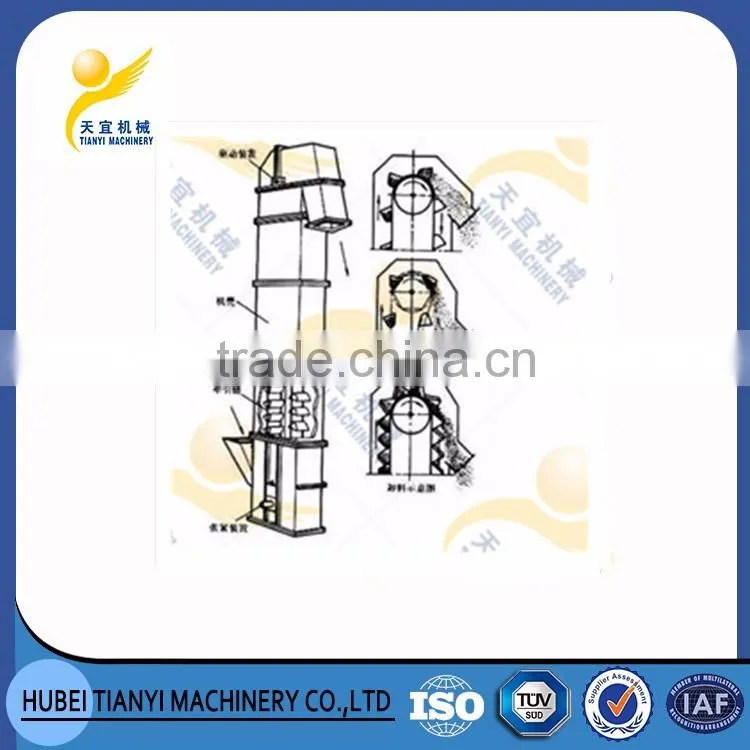

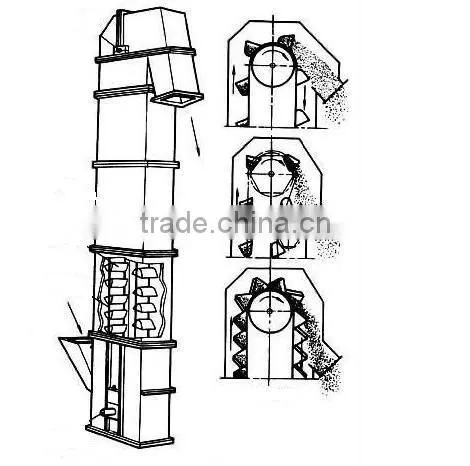

Head section & Tail section

Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
