ISO 9001 Heat Resistant Vertical Bucket Elevator design for Cement plant
- 10 Set / Sets per Month
- Shanghai
- T/T
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
- Cement dry ash bulk machine telescopic ring cloth bag DN300/600 thickened wear-resistant
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
- Air transport chute XZ400 cement plant ash chute dry ash ore powder transport equipment
Product Details
Place of Origin: | Hubei, China | Brand Name: | TianYi | Model Number: | TY-TH |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ISO 9001 Heat Resistant Vertical Bucket Elevator design for Cement plant
Product Application
TH series Bucket Elevator is design and manufacture according to the national standard, with the round link chain as the drag chain. There are two type of buckets: ZH type,(middle-deep bucket), generally suit for conveying those wet, easy to agglomerate, hard to thrown out materials, such as wet sand, foundry sand, fertilizer, alkali powder, etc. SH type (deep bucket) generally suit for conveying those dry, loose and easy to throw materials, such as cement, gravel, coal etc.

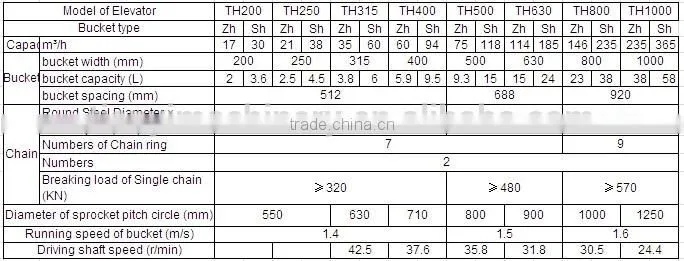

TH series bucket elevator, the max capacity is 365 m/h, the max. lifting height is 50 m.
Main Features
1) Simple structure with huge throughput.
2) Enhance the high degree of high.
3) Stable and reliable operation.
4) Long life and other significant advantages.
5) Suitable for conveying powder,granular and non-small block mill and grinding of small materials.
Machine Parts

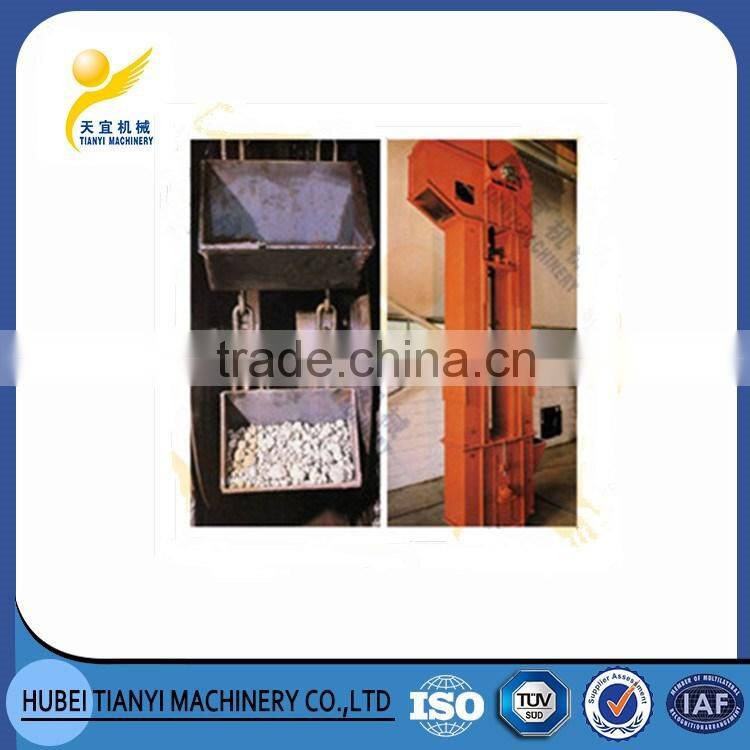

Name: Round link chain & buckets
Brand: TIANYI
Original: CHINA
Chain is the round link chain, with big Breaking load .
Bucket is fixed on round link chain with bolt.Name: steel buckets
Brand: TIANYI
Original:CHINA
Head section & Tail section
Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
Pre-Sales Service
* Inquiry and consulting support.
* Technical drawing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
HU BEI TIANYI MACHINERY CO.,LTD.( stock name: Tianyi machinery, stock code:832654) is a high-tech enterprises, which specialize in designing & producing & installing some specific equipment such as the conveying machine, crush equipment, screening machines and dedusting equipment. Our company is located in Yidu City, Hubei Province, it is only 50 kilometers far from the Three Gorges Dam & 20 kilometers apart from Three Gorges Airport. Our company covers an area of 70,000 square meters currently; the Capital assets reaches nearly about 89 millions and we have 200 staffs, including 65 professional engineers.
Our main fields: smelting, thermal power industry, waste disposal, building materials industry.
Our main products: conveying equipment, crushing equipment, screening equipment, dust removal equipment.
Integrated system: material conveyor system, dust removal system.
Tianyi Machinery have strong technical force, with research and development center, technical department, and we have got 25 national patent technologies
