ISO certificated carbon steel vertical chain bucket elevator for cement industry
Vertical chain bucket conveyor is designed and manufactured according to the national standard, with the round link chain as the drag chain. There are two type of buckets: ZH type,(middle-deep bucket), generally suit for conveying those wet, easy to agglomerate, hard to thrown out materials, such as wet sand, foundry sand, fertilizer, alkali powder, etc. SH type (deep bucket) generally suit for conveying those dry, loose and easy to throw materials, such as cement, gravel, coal etc.

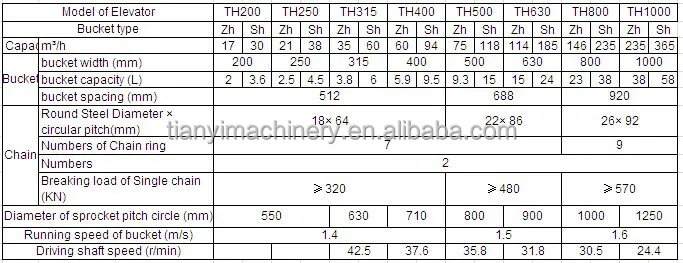

the max capacity is 365 m³/h , the max. lifting height is 50 m.
Main Features
1 Wide range of bulk materials can be handled, including powder, granular and block materials .
2 Large capacities for conveying in a compact space .
3 Completely enclosed for dust-tight operation,improve the working conditions and prevent the environmental from
being polluted.
4 Reliable electrical device and mechanical safety device .
5 Flexible installation and maintenance .
6 Construction available in carbon steel, stainless steel .
7 Engineered and manufactured to meet specific customer requirements .
Machine Parts
Name: Round-link chain & buckets
Brand: TIANYI
Original: CHINA
Chain is the short pitch plate type sleeve roller drag chain.
Bucket is fixed on chain plate with bolt.Name: steel buckets
Brand: TIANYI
Original:CHINA
Head section & Tail section
Upper section(head section) is made of drive sprocket, top case, in half cover and drive plate. Drive sprocket running make the chain buckets move from bottom to top, then lift the material.
Lower section (Tail section) is made of take-up sprocket group, bottom case, heavy hammer tension device, inlet, skirt plate and inspection door. Take-up device with the aid of a heavy hammer and the self weight of take-up sprocket group. Make the chain’s tension constant. When the chain wear elongation, can automatic adjustment the wheel base.Inspection door is convenient for take apart the buckets and chains.Lower door is used for cleaning the material.
Pre-Sales Service
* Inquiry and consulting support.
* Technical drawing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Link chain bucket elevator for bulk material
Heavy-duty Vertical Chain Bucket Elevator conveyor for cement
Large conveying capacity mining bucket elevator
