CHRE DDS8825-W single phase electronic meter
1.Brief introduct

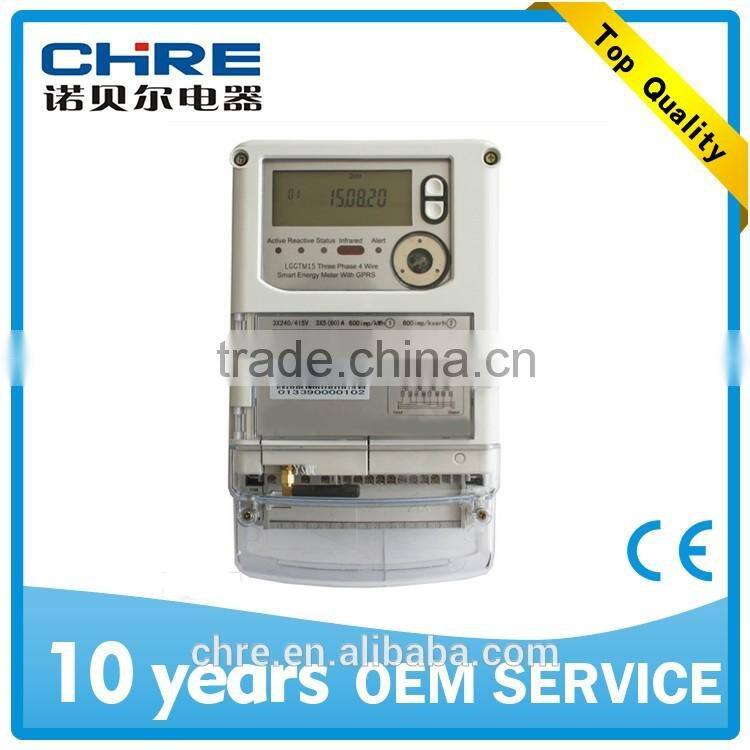

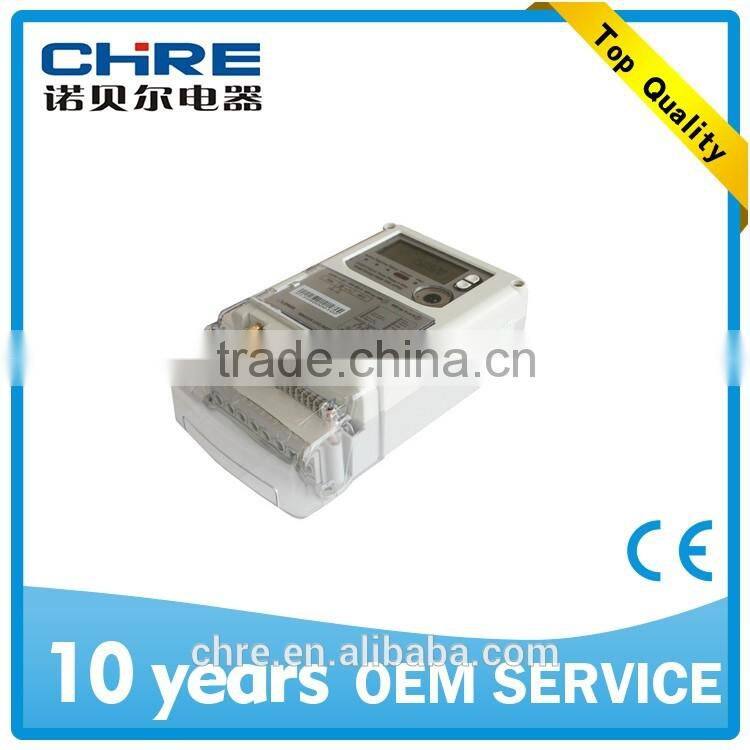

NBL TPI15 is a prepayment energy meter with IC card power-purchase and automatic meter reading. It complies with open standard and can operate under standard vending system from third parties.
Basic Functionalities:
Measurement:
Forward and reverse active energy measuring; Energy measuring in step or TOU (Optional); Measures instantaneous voltage, current, power, power factor and frequency in split phase.
Display:
8 digits of LCD display; Balance display configurable; LCD backlight to increase readability in low light conditions; Scrolling display configurable for instant information enquiry; Display the latest 6 months active energy consumption; 12 months billing data and more frozen data for inquiry; Display readable without main power(RWP).
Tariffs:
Tariff in step; Tariff prepayment, Switch out use up; Prepayment is made via a numeric token logged in the IC card; Prepayment and post-payment mode switchable for users' convenience; Balance alarming and surplus days available alarming configurable(Surplus available days alarming works only under step tariff), alarm value configurable; IC card can be made up at any time without any economic loss; Emergency credit for a certain sum of energy supply depending on user's credit level.
Demand:
Measuring active, reactive maximum demand and demand in TOU; Block or slide mode configurable.
Meter cover and terminal cover open detection and record; Terminal cover open alarming and switching trip, by pass; Large magnetic immunity.
Load Control (Optional):
Load limitation, overrun switch, timing auto power recover, alarm value configurable.
User-Friendly Mode(Optional): Support energy supply for low credit during weekends or holidays.
Pulse Output:
The pulse of the meter is sync outputted by LED and auxiliary terminal(Optional).
Real Time Clock(RTC): Built-in hardware clock circuit with temperature compensation function is adopted, with functions of calendar and timing.
Communication Interface and protocol:
Optical communication interface, RS485 Communication; Comply with DLMS and COSEM protocol.
2. Technical Parameters:
| Item | Item Description | Parameters |
| Measuring Accuracy | Active | 1.0 Or 2.0 (IEC) A or B (MID) |
| Voltage | Rated Voltage Operating Voltage Range |
3×220/380V-3×240/415V 70%-120%Un |
| Current | Rated Current Maximum Current Starting Current |
5A,10A 40A, 60A, 80A, 100A <0.4%Ib |
| Frequency | / | 50(Hz)/60(Hz) |
| Temperature | Operation range Limit range for storage and transport |
25ºC to +70ºC -40ºC to +85ºC |
| Humidity | ≤95% | |
| Pulse Constant | / | 600imp/kWh ( 5(40)A,5(60)A 10(40)A,10(60)A) 400imp/kvarh (5(80)A ,5(100)A,10(80)A ,10 (100)A) |
| Power Consumption | Power consumption in voltage circuit (active) Power consumption in voltage circuit (apparent) Power consumption in current circuit(apparent) |
≤2 W ≤5 VA ≤1 VA |
| Insulation Strength | AC voltage test Impulse voltage test |
4.2kV during 1min 1.2/50µs mains connections 6kV |
| EMC | Electrostatic discharges(Contact discharges) Electrostatic discharges(Air discharges) Surge immunity test Fast transient burst test Electromagnetic RF fields (80MHz to 2000MHz) |
8kV 15kV 4kV 4kV 10V/m(with current), 30V/m(without current) |
| Housing | Protection degree Meter cover Meter base Terminal cover |
IP54 Opaque PC+ glass fiber with a transparent window Opaque PC+ glass fiber Opaque PC + glass fiber |
| Display | Type Digits |
LCD 6+2 |
| RTC accuracy | / | ≤0.5s/day |
| Designing Lifespan | / | ≥15 years |
| Weight | Net weight Gross weight |
2.60kg 2.90kg |
| Dimension | / | Extended Terminal Cover 290*175*87mm Short Terminal Cover 205*168*87mm |
| Standards | EN50470-1, EN50470-3, IEC62053-21, IEC62052-11,IEC62055-41, IEC62055-51, IEC62056-46, IEC62056-53, IEC62056-61, IEC62056-62, IEC62056-21 |
|
1.Your company is a manufacturer or a foreign trade company?
We are a manufacturer in the past to undertake design and processing of all types of electronic products of OEM and ODM to provide production severice and technical support for major and medium-sized enterprises.With hightech enterprise of energy measurement product,setting research and development ,design manufacture and service.
2.Which payment can offer?
We accept 30% payment in advance, the balance payment before shipping.We also accept L/C according to the order amount.We can accept the payment by T/T,Western Union, Paypal, Private Account,Escrow,Cash,and others.
3.Why choose us?
We are Alibaba Assessed 11 years Gold Supplier.We are a factory manufacturing circuit breaker,best production capability ,best quality control, best service and we can design new product togehter.100% QC inspection before shippment.We help our partners to build factory and supply spare parts.
4. How can I get some samples?
We are pleased to offer you samples. New clients are expected to pay for the courier cost and samples fee, this charge will be deducted from the payment for formal order.
