KDN-10000/200Y Air separation plant

Name: KDN-10000/200Y Air separation plant
Brand: XAL
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Port Shanghai Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Jiangsu, China	Brand Name:	XAL
Model Number:	KDN-10000/200Y	Production Rate:	99.5-99.99%	Certification:	ISO9001:2008/CE/ASME
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

1 WHY CHOOSE US

a. we have senior team

Technical Title

Technical

engineers

Senior engineers

Professional senior engineers

Quantity(individual)

b.we have got many patents

c.we have large selling realm

Covering internal and international area

and exported to about 30 countries such as North America, Europe, Asia and Africa.

2 HOW WE WORK

a. Purifying air buy using air filter to eliminate the dusk and mechanical admixture.

b. Using the air compressor to compress air at a needed point.

c. Using the pre-cooling system to cool the air with normal temperature makes the molecular sieve adsorbent in good condition.

d. After cooling by pre- cooling system.the air is putted into MS system to adsorb the water,CO2 and HC to extend life span of expander,heat exchanger in cold box.

e.Finally,the totally purified air be carrying into cold box to rectify,which separates oxygen and nitrogen product using the different boiling point.

3 ITEMS DETAILS

a. Air compressor and pre-filter system

air is compressed by compressor, which our company specially uses air booster compressor to increase efficiency. the follow is a picture of centrifugal air compressor of our company.

b. Air pre-cooling purifying system

After compression and water separation.air into pre-cooling unit to pre cool.Our company specialized in using waste nitrogen pre cooling system.

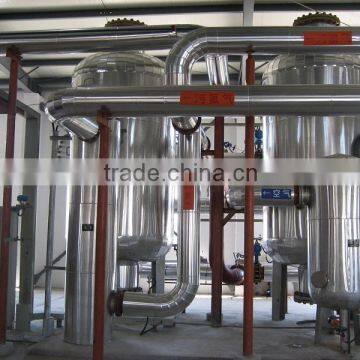

c.Air purification system

air enter into the molecular sieve purify system to adsorb water,CO2 and HC,the adsorbers of our enterprise are all used double decker structure,which can adsorb impurity one hundred percent.

d.Distillation system

The purified water are putted into cold box to rectify,after expansion refrigerator distillation of air ,we can get the product of 99.6 %oxygen,and 99.99%nitrogen.

4 KDON System’technical parameter

Plant model	Oxygen capacity Nm3/h	Oxygen purity %	Nitrogen capacity Nm3/h	Nitrogen purity PPmO2
KDON-1000/1350	GO2:1000	99.6	GN2:1350	≤10PPmO2
KDON-750/1400	GO2:750	99.6	GN2:1400	≤10PPmO2
KDON-550/200	GO2:550	99.6	GN2:600	≤10PPmO2
KDON-350/600	GO2:350	99.6	GN2:900 LN2:50L/h	≤10PPmO2
KDON-250/900(50Y)	GO2: 250	99.6	GN2:900 LN2:50L/h	≤3PPmO2
KDON-170/100	GO2:170	99.6	GN2: 100/0.6MPa	≤10PPmO2
KDON-80/40	GO2:80	99.6	GN2: 40/0.6MPa	≤10PPmO2

5 Our part Certificates:

6 OUR QUALIFICATIONS

Company Information

LOCATION

XAL was founded in 1992,which located at Development Zone, Xiangcheng District, Suzhou and is 80 kilometer far from SHANGHAI.

.We have 4 workshops,covering an area of 68000m2.

LATEST 4 YEARS TURNOVER OF XAL

Year	2012	2013	2014	2015
Turnover(USD)	31000000	40000000	47000000	80000000

Our plants are applied into many fields such as metallurgy, petrochemistry, coal gasification, electronics, chemistry engineering, photoelectricity, shipbuilding, medicine, construction, magnetic materials, textile, heat treatment and so on.......,and exported to about 30 countries such as North America, Europe, Asia and Africa.

Year	Country	Quantity (Unit)
2016	India	1
2015	Italy	1
2014	Thailand	2
2013	Malaysia,Burma,Libya	3(total)
2012	Thailand,Malaysia,Mexico India	4(total)
2011	Iran,India,Vietam,Sri Lanka	5(total)

We, devoting ourselves to the common development of air separation enterprises, will serve you more competitive products and realize common sustainable development with our leading technology and outstanding quality

You are always welcome to Suzhou to inquire about technical proposals, equipment selection advice and so on.

PLEASE CONTACT US:

PC: 215131

TEL: 86-512-65766331/65767253/65769056

FAX:86-512-65767057
