Embossing Machine
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BRONX | |
| Model Number | QR-YH-6x1500 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SS Embossing Line:
conveying platform → guiding and correcting facility → pinching → pressing machine → straightening machine
→ conveying platform
This line is mainly used in architectural decoration, shipping, furniture, elevator, the kitchen equipment industry etc.
| Thickness range for board to be processed(mm) | 1.0-6.0 |
| width for board to be processed(mm) | 900-1500 |
| feeding speed(m/min) | 0-10 |
| length tolerance | ≤±2.0mm/pace |
| leveling roller qtt.(pcs) | 13 |
| diameter of leveling rolle(mm) | 100 |
| suitable material(Mpa) | δs≤235 |
| platform length before and after(mm) | 6000 |

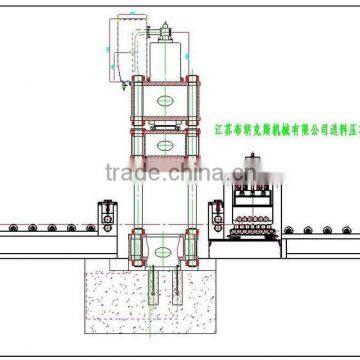

OVERALL VIEW
If you have special requirements for the machine, please do not hesitate to contact us. And you can advise us your ideas and thoughts for the machine,we can design specially for you and communicate with you for further details.
Bronx Machinery designs and builds high quality metal board processing equipments,such as leveling machine,cut to length line,slitting line,ss v grooving machine, embossing machine, polishing machine, shearing machine,press brake,rolling machine,hydraulic press with over 30 years experience.
1. How about your metal board embossing machine quality?
Bronx is a mature brand in China for over 30 years manufacturing experiences. Our design pays attention on structure, detailed security and precision also. Our products can match all the CE standard and national strict standards. Our machines distribute worldwide to about 50 countries.
2. What's your after-sale service?
Bronx provides oversea engineer service and training for buyer's operator. We garantee timely response for customer's requirements.
By the way, we also welcome engineers from customers' to our factory to learn how to operate and the normal maintenance since this will make great help for customer.
3. How to operate your metal embossing machine?
Don't worry about this. We will make a detailed operation manualand also with the operating CD for your referance, so you can learn from the existing documents to deepen your knowledge and understanding. Anyway there is another way, that is through internet video we can make a face to face machine teaching. Because of the high development in internet, the world has become smaller and you can easily catch us if any assistance needed .
