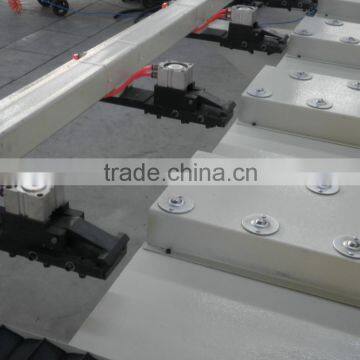

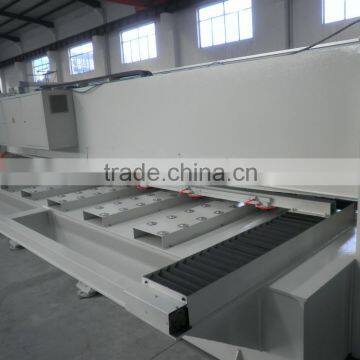

factory supply Bronx v cutting machine with low price

Name: factory supply Bronx v cutting machine with low price
Brand: BRONX
Availability: InStock

FOB Price

USD $30,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 3 Set / Sets per Month
Port SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	BRONX
Model Number	QR-KC-1220x4000		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

The machine is mainly used in aluminum and stainless steel V slot processing before metal bending. The machine makes the work piece not only keep the original rigidity but also overcome the great round and flat surface defects of change in the common bending. The machine is widely used in architectural decoration, shipping, furniture, elevator, the kitchen equipment industry and so on.

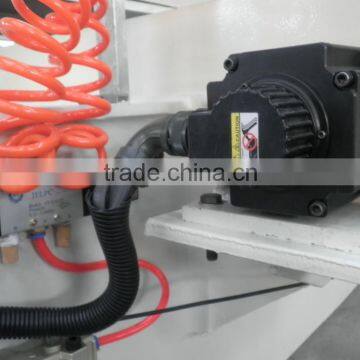

1.The equipment adopts the big pitched ball screw and high torque servo motors as the main drive, which makes knives more stable and faster when processing. The worktable of high strong plate as the surface makes the work pieces not easy to wear in machining. A panel with the adjustable fuselage during the work piece activities makes the point to every bit precision in 0.02 mm.

2. Machine interface programming allows the operating personnel easy to understand and locate accurately. Incoming materials use all the pressure pneumatic control; it makes the energy conservation and environmental protection concepts true. Equipments' overall modeling is concise and beautiful, in line with the world people's aesthetic standard.

Thickness range for board to be processed	0.6-4mm
Length for board to be processed	4000mm
width for board to be processed	1220mm
cutting velocity	15-60m/min
single blade cuttin area	2.25mm
feed rate	2-0m/min
Y axis minimum unit set	0.01mm
Y axis minimun positioning accuracy	+-0.05mm
X axis motor power	W=4kw
Y axis motor power	W=4kw
Z axis motor power	W=4kw
pneumatic pressure	0.4Mpa-0.6Mpa
