Factory Supply Bronx Metal Straightening Machine With Low Price
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Supply Bronx Sheet Metal Straightening Machine With Low Price
-
Factory Supply Bronx Sheet Straightening Machine With Low Price
-
Factory Supply Bronx Straightening Machine With Low Price
-
Factory Supply Bronx Steel Straightening Machine With Low Price
-
Factory Supply Bronx Board Straightening Machine With Low Price
-
Straightening Machine
Product Details
| Condition | New | Type | Other, Straightener | |
| Use | Sheet | Place of Origin | Jiangsu, China | |
| Brand Name | BRONX | Model Number | QR-WG43-2x1000 | |
| Voltage | 380v | Power(W) | 11kw | |
| Dimension(L*W*H) | 3200mmx1100mmx1800mm | Weight | 11000kg | |
| Certification | factory certificate | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

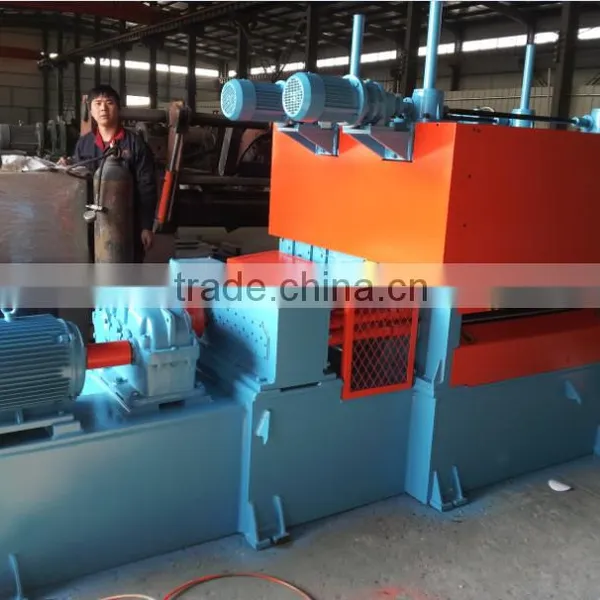

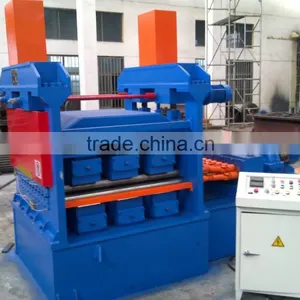

QR-WG43-2x1000 leveling machine is special equipment for leveling metal plate and is used to level the drum plate and uneven plate (carbon plate, stainless steel, aluminum plate and the other metal plate) in cold condition. It can also make up the uncoiling-leveling-shearing production line and the other product producing line together with the relative equipment. It is suitable for the fields of machinery, vehicles, metal product, household appliances, steel structure and omament etc..
| Specification | |
| Thickness min. (mm) | 0.5 |
| Thickness max. (mm) | 2 |
| Yield limit (Mpa) | 235 |
| Width (mm) | 1000 |
| Distance between rollers (mm) | 65 |
| Diameter of the roller (mm) | 60 |
| Qtt. of the rollers (pcs) | 15 |
| Speed (m/min) | 6 |
| Flatness tolerance (mm/m2) | +-1.0 |
LEVELING PRINCIPLE
OVERALL VIEW
If you have special requirements for the machine, please do not hesitate to contact us. And you can advise us your ideas and thoughts for the machine,we can design specially for you and communicate with you for further details.
Bronx Machinery designs and builds high quality metal board processing equipments,such as leveling machine,cut to length line,slitting line,ss v grooving machine,shearing machine,press brake,rolling machine,hydraulic press with over 30 years experience.
1. How about your metal board leveling machine quality?
Bronx is a mature brand in China for over 30 years manufacturing experiences. Our design pays attention on structure, detailed security and precision also. Our products can match all the CE standard and national strict standards. Our machines distribute worldwide to about 50 countries.
2. What's your after-sale service?
Bronx provides oversea engineer service and training for buyer's operator. We garantee timely response for customer's requirements.
By the way, we also welcome engineers from customers' to our factory to learn how to operate and the normal maintenance since this will make great help for customer.
3. How to operate your metal leveling machine?
Don't worry about this. We will make a detailed operation manualand also with the operating CD for your referance, so you can learn from the existing documents to deepen your knowledge and understanding. Anyway there is another way, that is through internet video we can make a face to face machine teaching. Because of the high development in internet, the world has become smaller and you can easily catch us if any assistance needed .
