Specifications
19'' touch screen monitorresolution:1280x1024
interface:VGA,Audio,BNC,HDMI,USB(for touch)
certificate of CE,RoHS,FCC,C-tick

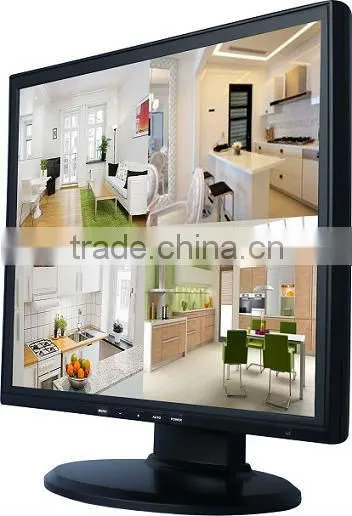

LCD wide screen (5:4) 19'' touch screen monitor
| Specification | ||
| Model No. | AKA-1903MA | |
| Display | Screen size | 19'' (5:4) TFT Color LCD |
| Max. Resolution | SXGA (1280x1024) | |
| Pixel Pitch | 0.294 mm | |
| Brightness | 300 cd/square meter | |
| Contrast ratio | 1000:1 typical | |
| Viewing Angle(H /V) | 160 / 160 degree | |
| Display color | 16.7 Million | |
| Response Time | 5ms | |
| Power Consumption | Approx. 23 Watts | |
| Touch screen | 5 Wires resistive touch | |
| Video system | NTSC / PAL | |
| Interface | Solution No. | M2 (Economic style) |
| Video 1 Input | CVBS Input(BNC type)x1 | |
| Video 2 Input | CVBS Input(BNC type)x1 | |
| Video 2 Output | CVBS Output(BNC type)x1 | |
| PC-RGB Input | VGA (15Pin D-Sub)x 1 | |
| Audio Input | Stereo 3.5mm input x1 | |
| Audio Output | Stereo 3.5mm Output x1 | |
| HDMI Input | 1 | |
| USB (for touch use) | 1 | |
| DC 12V Input | 1 | |
| Features | Built in Comb Filters | 3D |
| Built in De-interlace | 3D | |
| Source | PC / Video1 / Video2 / HDMI | |
| Multi-Language | English, Chinse,French ,German, | |
| Italian , Portuguese , Spanish | ||
| Audio | Built in Speakers | 2 |
| Cabinet | Color | Black |
| Material | ABS Plastic | |
| Wall Mount | VESA | |
| Base Stand | Desktop Stand | |
| Circumstance | Operating Temperature | 0°C ~ 50°C / 32°F~122°F |
| Storage Temperature | 20°C~60°C / 4°F~140°F | |
| Packings | Unit N.W./G.W. | Approx. 5KG/6KG |
| Gift Box Dimension | 454x130x445 mm | |
| Regulations | RoHs , FCC , CE , C-tick , and so on. | |
| Specification are subject to change without notice | ||
Interface for reference
Picture for your reference:
