Specifications
17 inch cctv lcd monitorResolution:1280 x 1024
Connectors: VGA/ Audio/BNC/HDMI
Regulations: RoHS, CE (EMC & LVD), FCC

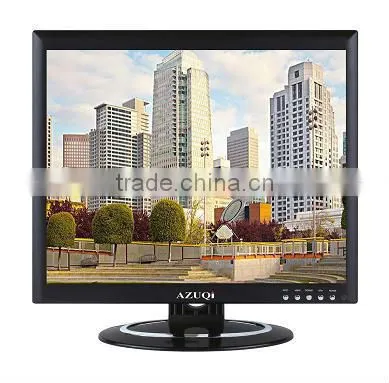

Wholesale ! 17 inch cctv touch screen monitor
| Specification | ||
| Model No. | AKA-1702MA | |
| Display | Screen size | 17 Inch |
| Panel type | TFT LCD Display | |
| Max. Resolution | 1280 x 1024 | |
| Pixel Pitch | 0.264 mm | |
| Brightness | 300 cd/square meter | |
| Contrast ratio | 1000:1 typical | |
| Aspect Ratio | 5:4 | |
| Viewing Angle(H /V) | 160/ 160 degree | |
| Display color | 16.7 Million | |
| Response Time | 5ms | |
| Power Consumption | Approx. 17 Watts | |
| Video system | NTSC / PAL | |
| Interface | Solution No. | M2(Economic Style) |
| Video 1 Input | CVBS Input(BNC type)x1 | |
| Video 2 Input | CVBS Input(BNC type)x1 | |
| Video 2 Output | CVBS Output(BNC type)x1 | |
| PC-RGB Input | VGA (15Pin D-Sub)x 1 | |
| Audio Input | Stereo 3.5mm input x1 | |
| Audio Output | Stereo 3.5mm Output x1 | |
| HDMI Input | 1 | |
| USB ( for touch use) | 5 wires resistive touch x 1 | |
| DC 12V Input | 1 | |
| Features | Built in Comb Filters | 2D |
| Built in De-interlace | 3D | |
| Source | PC / Video1 / Video2 / HDMI | |
| Multi-Language | English, Chinse,French ,German, | |
| Italian , Portuguese , Spanish | ||
| Audio | Built in Speakers(Option) | 2 |
| Cabinet | Color | Black |
| Material | ABS Plastic | |
| Wall Mount | VESA | |
| Base Stand | Desktop Stand | |
| Circumstance | Operating Temperature | 0~ 50 centigrade/ 32~122 Fahrenheit |
| Storage Temperature | 20~60 centigrade / 4~140 Fahrenheit | |
| Packings | Unit N.W./G.W. | Approx. 3.5KG/4.5KG |
| Gift Box Dimension | 430x155x415 mm (LxWxH) | |
| Regulations | RoHs , FCC , CE , C-tick , and so on. | |
| Specification are subject to change without notice | ||
Interface for your reference only:

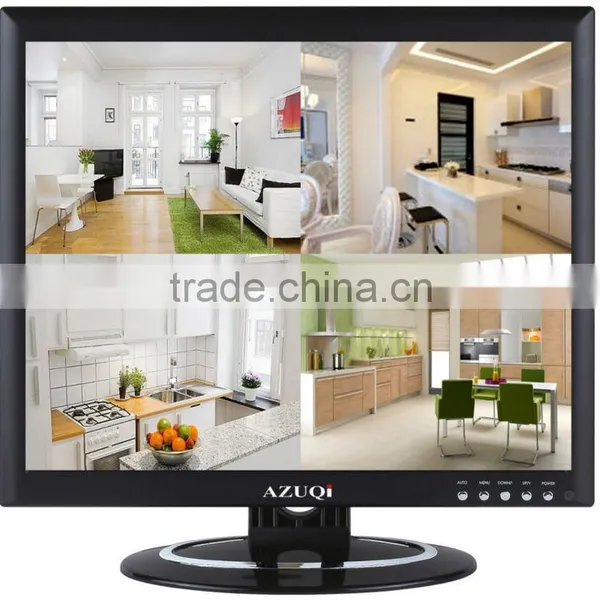

Pictures for your reference:
