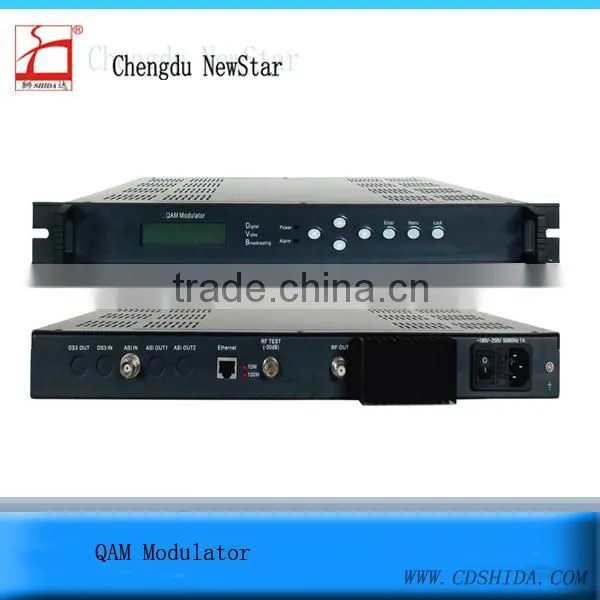

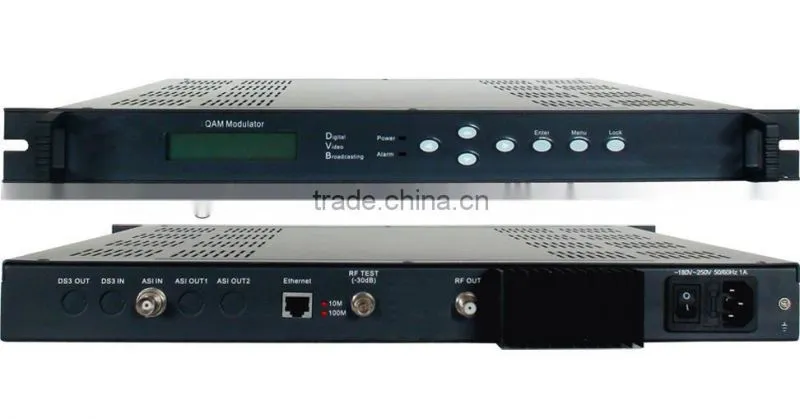

QAM Modulator DVB Hdmi to rf Modulator Digital Headend

Name: QAM Modulator DVB Hdmi to rf Modulator Digital Headend
Brand: shida
SKU: 134428491

US$ 1 - 10,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

shida

Model Number:

SDC-3000M

Chengdu Star-Xinhui Tel-Communicational Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name shida

Model Number SDC-3000M

Specifications

DVB-C (EN300429) standard
With RF output and real-time monitoring function.

Product Description

Outline

The QAM modulator is a high performance modulator developed according to DVB-C (EN300429) standard.

It can receive various TS come from encoder, multiplexer, DVB gateway, scrambler and video server, and

then disposes the TS by RS encoding, interleaving and QAM modulating. This device also has RF output

and real-time monitoring function.

Features

1 Fully complying with EN300 429/ITU-T J.83A (DVB-C), GB/T170 standard

2 Symbol rate range: 1.0Msps~7.0Msps

3 Supporting 16QAM, 32QAM, 64QAM, 128QAM and 256QAM constellation modes.

4 Supporting ASI and DS3 input and output (optional)

5 Huge buffer memory for the burst code stream

6 Supporting intelligence null packet filtering, automatically TS filling and PCR fine-tuning

7 Supporting NIT insertion

8 Supporting effective inputting real-time bit rate monitoring

9 Output frequency range: 48MHz~860MHz in 10kHz step

10 Output frequency attenuation range: -11dBm~+5dBm in 0.5dB step

11 Full-size front panel LCD display and keyboard

12 Supporting NMS operation

Specification

Input	1channle ASI input, BNC interface, 75Ω
Input	1channle DS3 input (N/A), BNC interface, 75Ω
Modulation	QAM Channel	1
	Standard	EN300 429/ITU-T J.83A,GB/T170
	Symbol Rate	1.0~7.0Msps,1ksps stepping
	Constellation	16,32,64,128,256QAM
	FEC	RS(204, 188)
RF Output	Connector	F Type, 75Ω impedance
	RF Range	48~860MHz,10kHz Step
	Output Attenuation	-11dBm~+5dBm,0.5dB Step
System	Full-size front panel LCD display and keyboard Supporting NMS operation
System	Supporting Software Upgrading
General	Dimension(WDH)	482mm×455mm×44.5mm
	Weight	6.0kg
	Temperature	0~45°C(Operation) ; -20~80°C(Storage)
	Power	AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz
	Consumption	30W
