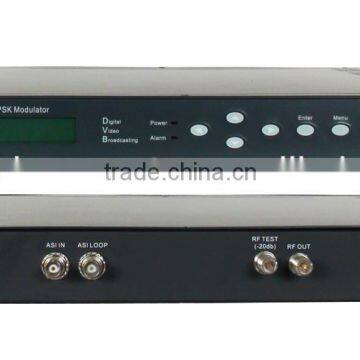

Trans-mux modulator DVB

FOB Price

US$ 1 - 10,000 / Piece

1 Piece(Min. Order)

Port chengdu
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	shida
Model Number	SDC-3000M

Product Description

Specifications

DVB-S/S2/DVB-C demodulating and multiplexing functions

Product Description

Features

1. Fully complying with EN300 429/ITU-T J.83A DVB-C), GB/T170 standard

2. Symbol rate range: 0Msps~27.5Msps

3. Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

4. 1 channel tune input (DVB-S/S2/DVB-C optional)

5. 3 channels ASI input

6. MPEG-2 TS can be re-multiplexed; SPTS and MPTS code stream can also be multiplexed

7. Intelligent null packets filtering and automatically code stream filling, PCR fine-tuning

8. PID filtering, re-mapping, simultaneously PSI and SI refreshing

9. Thorough monitoring and alarming function

10. NIT insertion

11. Effective real-time bit rate monitoring

12. RF output range: 48MHz~860MHz in 10kHz step

13. RF ATT range: -11dBbm~+5dBm in 0.5dB step

14. Full-size front panel LCD display and keyboard

15. NMS operation

Specification

Demodulation		DVB-S	DVB-S2	DVB-C
	Input interface	F Type port, 75Ω	F Type port,75Ω	F Type port,75Ω
	Demodulation Standard			ITU-T J.83A
	Frequency range	950~2150MHz	950~2150MHz	168~858MHz
	Symbol rate	2~45Mbaud/s	1~45Mbaud/s	1.0~7.0Mbaud/s
	LNB	13V/18V	3V/18V
	Constellation	QPSK	QPSK,8PSK	16QAM,32QAM,64QAM,128QAM,256QAM
	Roll-off factor	0.2,0.25,0.35	0.2,0.25,0.35
	FEC	1/2,2/3,3/4,5/6,7/8	1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10
	Pilot		ON/OFF
Re-multiplexing	MPEG-2 TS re-multiplexing
	PID re-mapping( auto/manual optional)
	PCR correction
	PSI/SI table generated automatically
Modulation parameter	QAM channel	1
	Standard	EN300 429/ITU-T J.83A,GB/T170
	Symbol rate	1.0~7.0Msps,1ksps step
	Constellation	16,32,64,128,256QAM
	FEC	RS(204,188)
RF output	Connector	F Type,75Ω impedance
	RF range	48~860MHz,10kHz step
	Output ATT	-11dBm~+5dBm,0.5db step
System	LCD & keyboard operation, NMS, Chinese-English display
	Software upgraded through network
General	Demission (W x D x H)	482mm×455mm×44.5mm
	Weight	6.1kg
	Temperature	0~45°C(Operation),-20~80°C(Storage)
	Power supply	AC 220V±10%,50/60Hz
	Consumption	25W
