QPSK Modulator Dvb-c Catv Digital Headend

Chengdu Star-Xinhui Tel-Communicational Co., Ltd.
QPSK Modulator Dvb-c Catv Digital Headend thumbnail-1
QPSK Modulator Dvb-c Catv Digital Headend photo-1
US$ 1 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
shida
Model Number:
SDC-3000M
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name shida
Model Number SDC-3000M

Specifications

DVB-S (ETS300-421) QPSK standard
Access to FM microwave device


Product Description





Features

1   Fully complying with DVB-S (ETS300-421) QPSK standard

2   Output frequency range: 250-450 450-950 950~2150MHz

3   ASI standard Input connector

4   Supporting local and remote control

5   Output level attenuation

6   High stability and powerful anti-jamming performance

7   Full-size front panel LCD display and keyboard


Specification



Modulation

QPSK

Input

ASI Standard connector

 Output

50Ω F Type

RF Range

250-450 450-950 950~2150MHz

Symbol Rate

1.5M~45Mps

Roll-off factor

Option 0.35,0.25,0.20

Convolution

Option 1/2,2/3,3/4,5/6,7/8

Output level range

0~20dB in 1dB step

Environment

0 ~ 45°C(operation);-20 ~ 80°C(storage)

Power Supply

~220V(~180V-~250V)  50Hz~60Hz 20VA

Dimension

44mm´482mm´430mm(H*W*D)

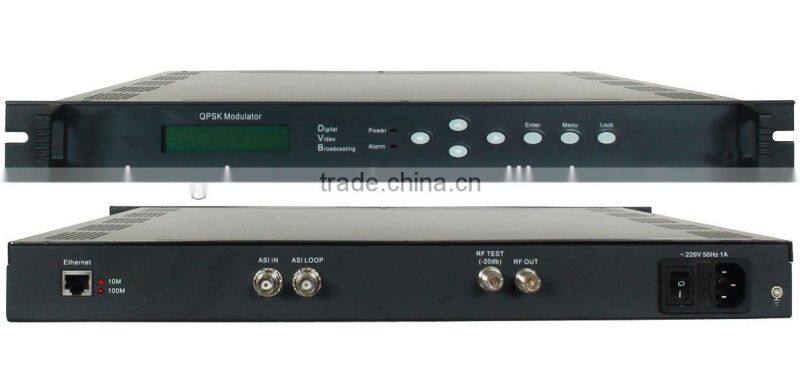

QPSK modulator dvb-c catv digital headend
