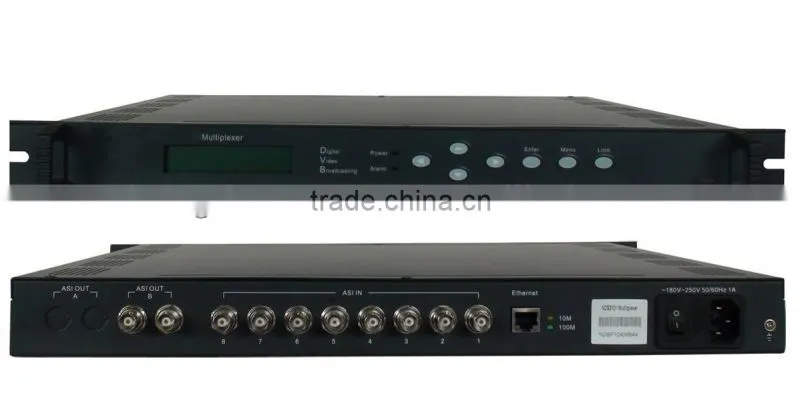

Help CenterSingle Output Multiplexer DVB Digital tv Multiplexer
Related Products
-
Stand Alone Scrambler( Double Network Ports)frequency Video Scrambler Radio Frequency ScramblerUS$ 1 - 1,000MOQ: 1 Piece -
Stand Alone Scrambler Frequency Video Scrambler Radio Frequency ScramblerUS$ 1 - 1,000MOQ: 1 Piece
-
Stand Alone Scrambler FrequencyUS$ 1 - 1,000MOQ: 1 Piece
-
Stand Alone ScramblerUS$ 1 - 1,000MOQ: 1 Piece
-
ISDB-T HD IRD Satellite Receiver Digital Satellite ReceiverUS$ 1 - 10,000MOQ: 1 Piece
Specifications
multiplex up to 8 channels ASI input MPTS into one output transport stream (MPTS)Features
1 Fully complying with ISO13818 and EN300468
2 MPEG-2 TS re-multiplexing support
3 8 ASI input ports
4 One multiplexing ASI output, maximum code rate up to 150Mbps
5 PCR correction automatically support
6 Program sorting support
7 SDT table reflection support
8 Generating PSI/SI information
9 Supporting PCR correction and PID re-reflection
10 extracting PSI/SI information from any route of SPTS/MTPS inputs
11 Supporting the cascading connection between multiple equipments.
12 Local and Remote network management support
Specifications
Input Interface |
ASI |
8 ASI input ports (Maximum 216Mbps/Route) |
Re-multiplexing |
MPEG-2 input TS stream re-multiplexing |
|
PID Remapping | ||
PCR Correction | ||
Automatically Generating PSI/SI Table | ||
Output Interface |
ASI |
One multiplexing output ports (1X2 ASI out, one as mirror) |
Ethernet port |
10/100Mbps NMS Ethernet Port |
|
Miscellaneous |
Dimension |
44mm´482mm´360mm |
Environment |
0~45°C(Operation);-20~80(Storage) |
|
power |
220VAC±10%,50Hz,25W |
|
