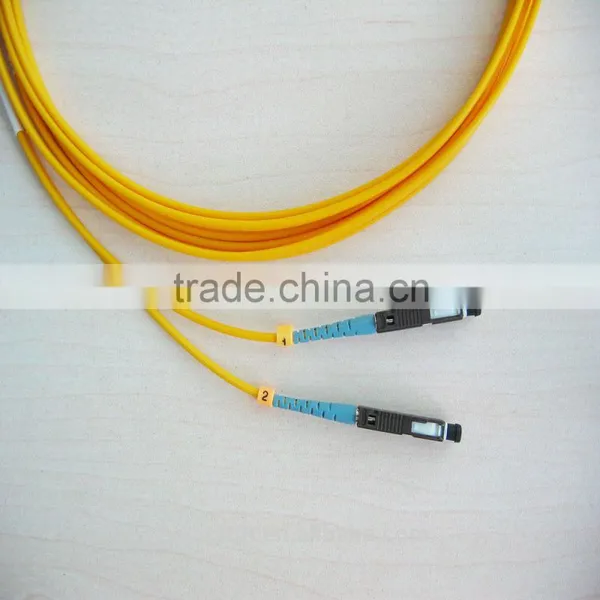

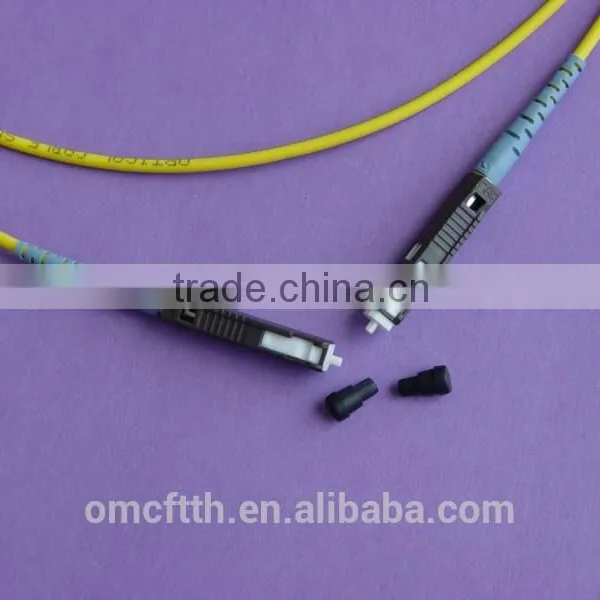

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Products info
Connector |
MU |
Jacket OD |
2.0mm |
Fiber Mode |
9/125μm |
Jacket Color |
Yellow |
Polish |
UPC to UPC |
Wavelength |
1310/1550nm |
Fiber Type |
Simplex |
Jacket Material |
PVC/LSZH |
Insertion loss |
≤0.3dB |
Interchangeability |
≤0.2dB |
Return loss |
≥50dB |
Vibration |
≤0.2dB |
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Polarity |
A(Tx) to B(Rx) |
Fiber Grade |
G652D |
Geometric Specification (only for 3D interferometer tested)
Test items |
Connectors |
PC End-face |
APC End-face |
MU |
7~25 mm |
5~15 mm |
|
Apex Offset |
≤50 um |
||
Fiber Spherical Height |
+/- 50 nm |
||
Angular Offset |
------ |
8°± 0.2° |
|
Packaging Details: |
one piece in a PE Bag ten pieces in a master PE bag |
Delivery Detail: |
Shipped in 3 days after payment |
OEM service available
We also offer training, pre and post-sales support
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
