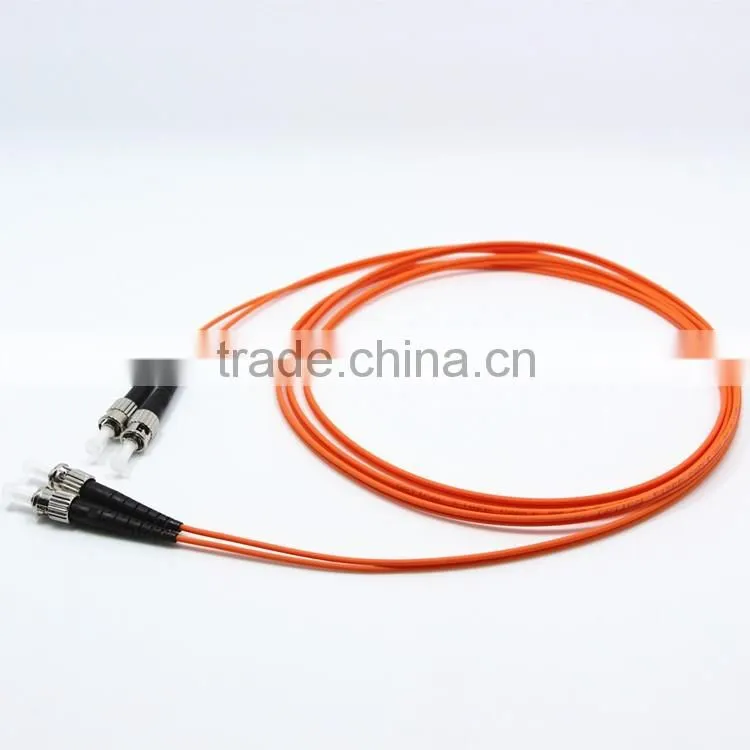

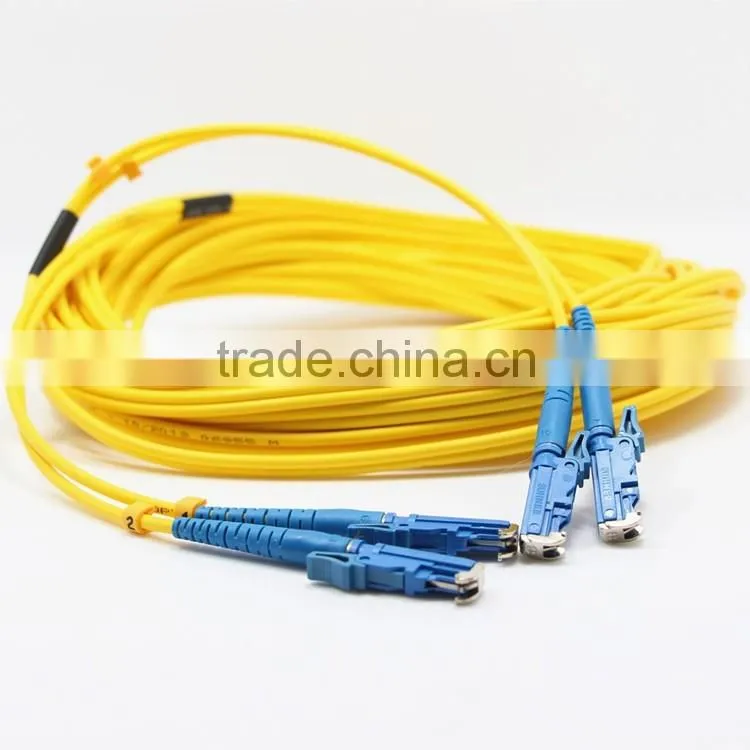

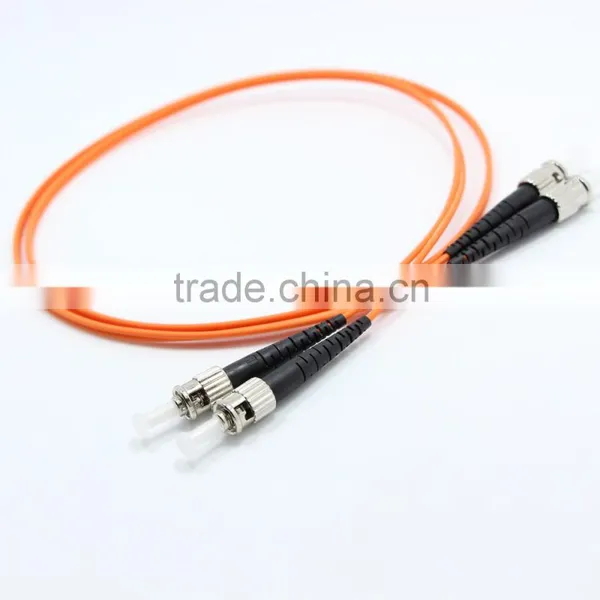

LC SC FC ST MU MTRJ E2000 PC APC fiber optic duplex patch cord
- 1000000 Piece / Pieces per Month
- Shenzhen China
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OMC or OEM | Model Number: | Fiber Optic Patch Cord |
Product Description
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in an interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

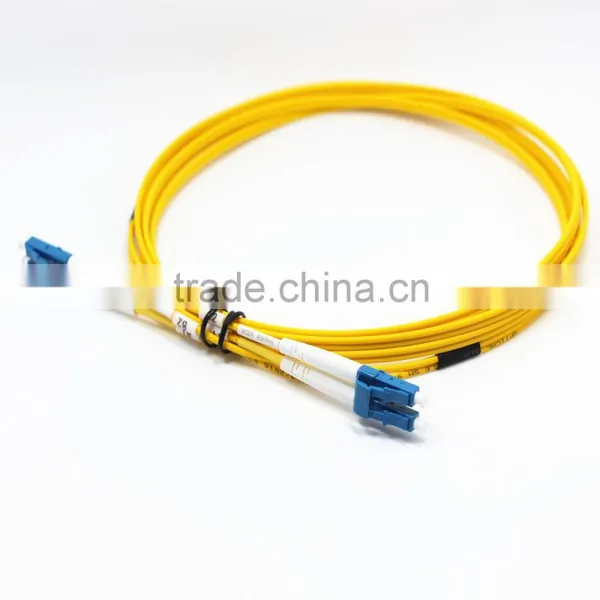

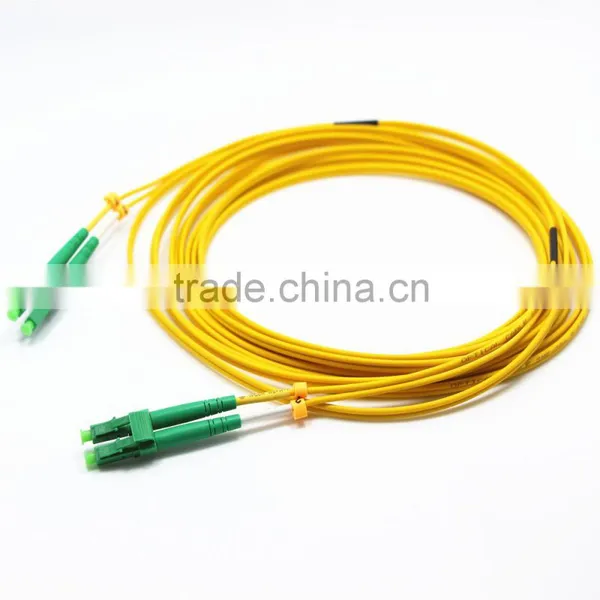

Duplex Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,FC,LC,ST,MU, MTRJ ,E2000 etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
The cable size could be 1,6*3.3, 2.0*4.1,2.8*5.7
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH
Optical Specification
Connector | SC,FC,LC,ST,MU,E2000,MTRJ | MPO/MTP | |||
Polishing | SM/UPC | MM/PC | SM/APC | SM/PC | MM/PC |
Insertion Loss(max) | ≤0.30dB | ≤0.30dB | ≤0.30dB | ≤0.75dB | ≤0.5dB |
Return Loss(min) | ≥50 dB | ≥35 dB | ≥60 dB | ≥40dB | ≥20dB |
Tensile Strength | <10kg | ||||
Durability | <0.20 dB typical change, 500 matings | ||||
Repeatability | ≤0.1dB | ||||
Storage , Operating Temperature [°C] | -40~+85 |
Geometric Specification
|
| PC End-face | APC End-face |
Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
LC/MU | 7~25 mm | 5~15 mm | |
Apex Offset | ≤50 um | ||
Fiber Spherical Height | +/- 50 nm | ||
Angular Offset | ------ | 8°± 0.2° |
- Clean and Scratch-Free End Face
- Proportional geometric test is applied to the normal production.
- 100% interferometer check is available under special requirement.
Packaging
one piece in a plastic bag.
Several bags in a larger plastic bag.
hundreds of bags in a cartoon of 54*35*39cm.
other size carton is available too.
Shipping
goods shipped by air or by land transporation.
1,Free samples can be provided.
2,OEM service
3,Nice payment terms.
4,high quality products
5,Competitive price,
6,fast delivery
7,New product priority sell
8,Optical Network Project Consultant.
9,New Products development for customer.
10,Cost-effective logistic solution can be chosen for you.
11,The specific sales person to serve our customers so that you can feel easy and efficient.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
1,Can we get free samples?
Yes. Free samples can be offered for your test. You only need to pay the freight.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3,How will we do if we are not familiar with the optical products?
Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5,What is your quality control.
source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
optical test. Our products are strictly tested in accordance with IEC and ITU standard.
we have 30% spot test by Quality Assurance Department after the products finished.
