Stainless Steel Vacuum Flask Pressing Machine
- 50 Set / Sets per Month
- China Port
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Jotun JT-SDJ automatic abrasive belt industry surface polishing machine cutting sheet metal deburring machine
- automatic welding machine for stainless steel commerical sink panel and bowl
Product Details
Place of Origin: | Guangdong, China | Brand Name: | yongheng | Model Number: | Y98-200 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

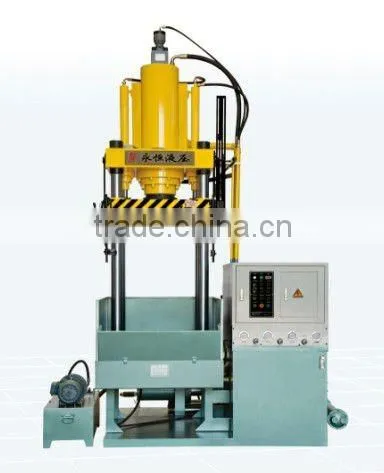

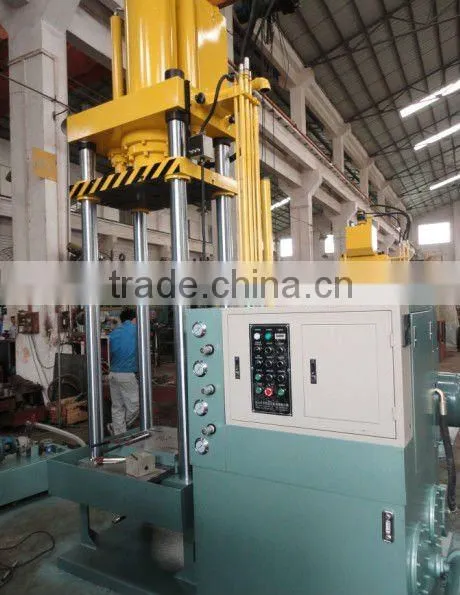

Stainless Steel Vacuum Flask Pressing Machine
1.Suitable for:
Stainless Steel Vacuum Flask Pressing Machine is used for forming the part with complex surface.Can be used for the hydraulic bulging process of vacuum cup,thermos bottle,water bottle and other tableware and containers made of stainless steel,copper,aluminum,iron and other materials.
2.Main Feature:
1.Application:for forming the part with complex surface.
2.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
3.Safety protection device should be equipped to provide security guarantee for the operators
4.Auto count function should be equipped
5.Locking-mould force and water pressure are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y98-200 |
Nominal Capacity | KN | 1000 |
Master Cylinder Stroke | MM | 750 |
Nominal Capacity Of Pressurized Cylinder | KN | 1000 |
Stroke Of Pressurized Cylinder | MM | 350 |
Max. Capacity Of Injection Cylinder | L | 7 |
Max. Injection Pressure Of Injection Cylinder | MPA | 50 |
Max. Shut Height | MM | 1300 |
Working Table Size | MM | 650(L) x 650(W) |
Sliding Platform Size | MM | 550(L) x 450(W) |
Downing Speed | MM/S | 360 |
Pressing Speed | MM/S | 30 |
Return Speed | MM/S | 300 |
Motor Power | KW | 15+2.2 |
Overall Size | MM | 2200(L) x 1600(W) x 3750(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
