PLC control, LG touch screen cement block making machine
ISO9001, CE, SGS cement block making machine
solid brick, hollow brick, interlocking paver bricks
Anguilla best selling cement block making machine/hollow block making machine

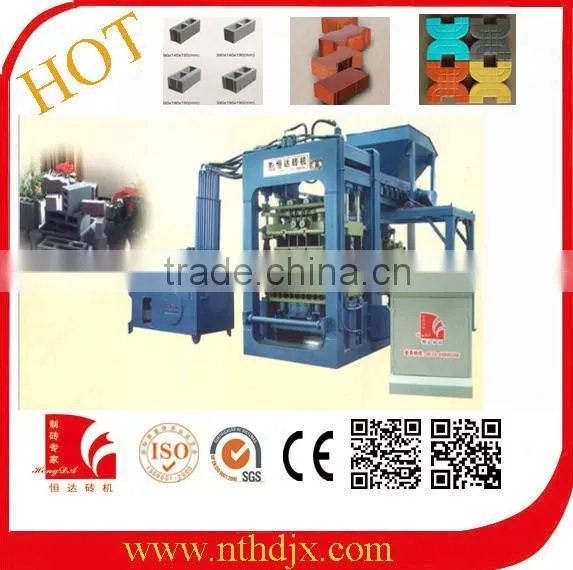

Descriptions of HDQT8-15 cement block making machine :
QT8-15 cement block making machine is a kind of equipment which uses slag, fly ash, stone dust, sand, gravel, cement and others as raw material, through material proportion, stirring and high-pressure moulding to make many kinds of bricks and blocks. It is also called non-burn brick machine. That’s to say, the finished brick can come into use only through drying by the solar power, no need sintering.
Main Technical Specifications of HDQT8-15 cement block making machine | ||
Cycle Time: |
15-20 seconds |
|
|
Production per Shift (8 Working Hours): |
Hollow Block ( 390x190x190mm ): 11520-15360pcs |
|
|
Solid Block (220x115x72mm): 43200-57600pcs | ||
|
Interlock (225x112.5x60mm): 28800-38400pcs | ||
|
Holland Brick (200x100x60-80mm): 34560-46086pcs | ||
Vibrating Frequency: |
2940 rolls/minute or 50 HZ |
|
Vibrating Force: |
100 KN |
|
Motors Power: |
29.5KW |
|
Machine Dimensions: |
5568x2060x2968mm (excluding electrical control box)' |
|
Pallet Size: |
1100*680*20mm |
|
Gross Weight: |
about 12T |
|
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
|
Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
|
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc |
|
Advantages Of QT8-15 cement block making machine :
1. Perfect humanization Electrical control system
Siemens PLC with Visualization touch screen provide you a Child operation machine.
2. Frequency Conversional Control Technology:
It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;
3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
5. Various product scope:
It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Some auxliaries for reference
Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

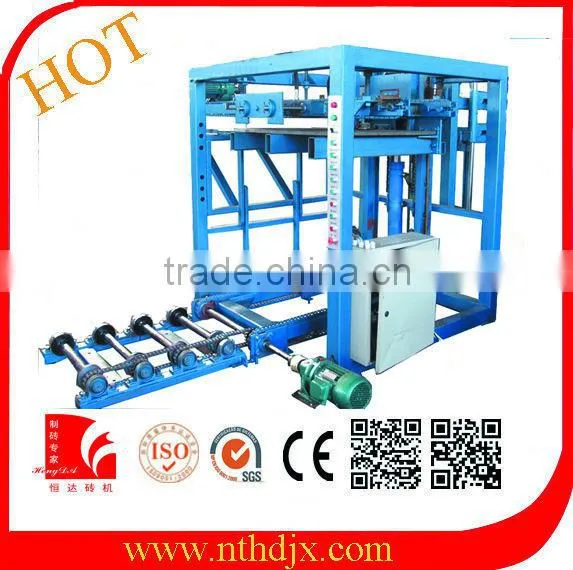

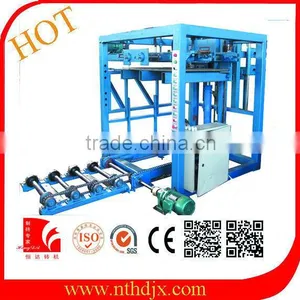

Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.

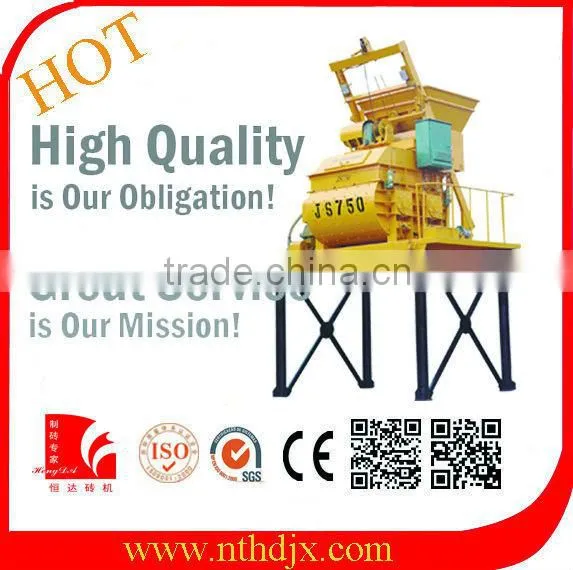

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Cement block making machine :This is the key of the production line.It can press the mixed material.It can make various hollow brick,solid brick,paver brick and kerbston.
Designed Production lines of HDQT8-15 cement block making machine

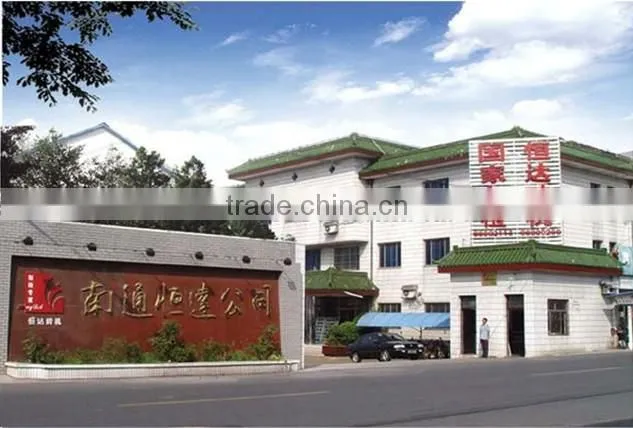

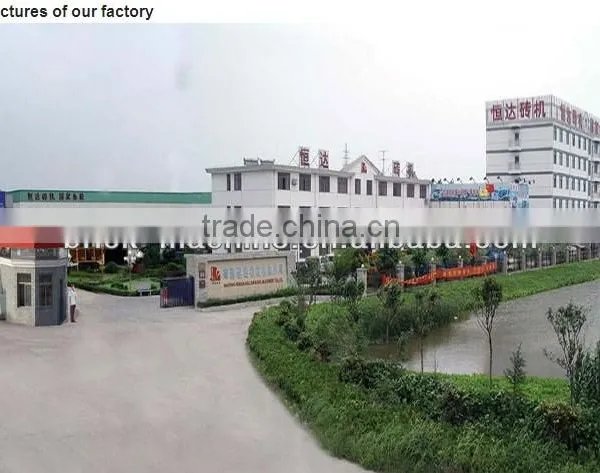

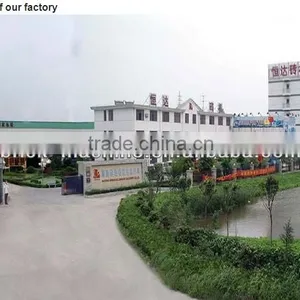

we are manufacturer of cement block making machine more than 34 year with ISO9001 &CE,our clay brick making machine and cemen brick making machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
Buying tips
We have two kinds of brick machine, one produce automatic clay brick machine, another produce cement block making machine , when you want to buy, please tell me
1. You need clay brick making machine or cement brick making machine price ?
2. Your brick size( length, width and height)
3.Your brick picture and brick production
We are professional clay brick making machine, cement block making machine and PVC block pallet manufacturer, if you are interested, please come here.
