PLC control,cheap price concrete block making machine in botswana
Hydraulic and electric compents are imported
high production and vibration concrete block making machine in botswana
Hydraulic automatic cement road blocks machine/concrete blocks machine
Good news!!!
In 2013 year, we company self-developed new technology movable tunnel kiln, which line has been into smoothly use in Jiangsu Nantong Zhuangzhi Brick Factory, now in China Xinjiang area, we have 4 lines are in counstrcution!
Now we company have clay brick machine,concrete block making machine in botswana , movable tunnel kiln, pvc pallet, pvc tiles,
If you are interests in machine buying or kiln building, welcome to our factory to visit, 24h Serve for you !Looking forward to your inquiry!

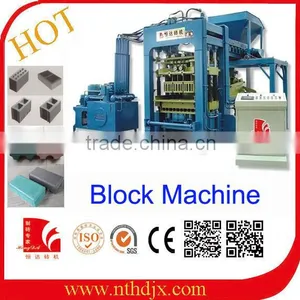

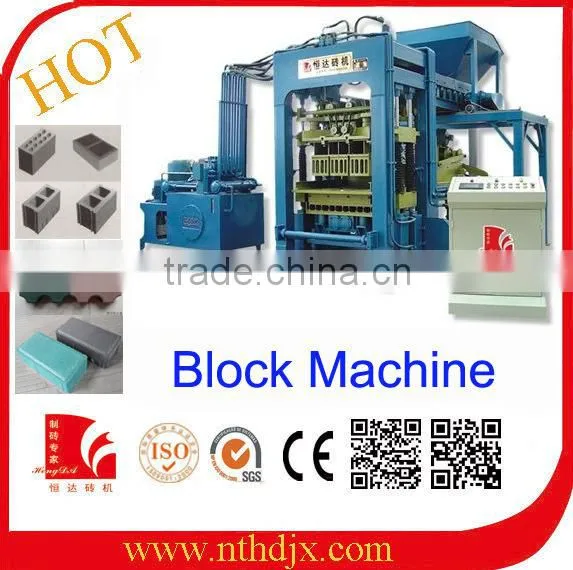

This QT6-15 concrete block making machine in botswana is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the concrete block making machine in botswana utilizes the LG frequency converter. For reliable performance, the cement brick making machine is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this machine is composed of integrated modular units from Germany and Italy.
Parameters of QT6-15 concrete block making machine in botswana :
| yield | 1440 pieces/h(390 × 190 × 190mm) |
| 7200 pieces/h(240 × 115 × 53mm) | |
| size of pallet | 850 × 680 × 17mm(PVC pallet) |
| exciting force | 70KN |
| vibration frequency | 60HZ |
| forming way | table vibration and box vibration |
| control method | PLC |
| molding cycle | 15S |
| power | 36kW |
| weight | 10T |
Some auxliaries for machine for concrete block making machine in botswana for reference
Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Concrete block making machine in botswana :This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbstone.
we are manufacturer of concrete block making machine in botswana more than 34 year with ISO9001 &CE,our auto brick machine and cement road blocks machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
Our payment terms,
1. We usually accept T.T, or Cash, or L/C, 30% for down payment, 70% pay as balance before loading.
2. It is about 30days to finish all the machines after receive the down payment.
3. We take pictures and videos of finished products, and test all the machines before delivery.
Packaging of our machines:
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.
Delivery of our machines:
1. We have been long term cooperation with many famous shipping agent. Also we can arrange the shipment as your needs.
2. After we get the B/L we will send it to you together with the Sales Contract, Invoice, Packaging List, etc.
Before-sale services:
(1)Guide customers to choose the best appliable machine type; provide the advanced, energy-saving and practical technological process,
(2) We are responsible for the process chart and design.
Sale services:
(1)Products must be inspected strictly before selling;
(2)In accordance with the agreements stipulated in the contract,
(3)We will organize delivery.
After-sale services:
(1)Our company will send professional engineers to guide with device installation, debugging and training operators until customers are fully satisfied. Moreover, we will design and manufacture products, according to the special requirements of customers.
(2)The quality guarantee period for machines is one year except the wearing parts.
Our concrete block making machine in botswana, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
