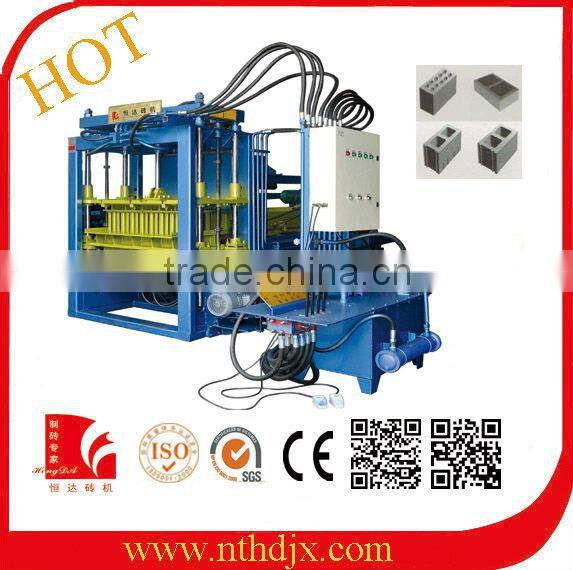

High quality interlocking block making machine cement block making machine
Characters:
1.reasonable structure design interlocking cement block making machine
2,low mold materials interlocking cement block making machine
3,high efficiency interlocking cement block making machine
4,wide adaptability interlocking cement block making machine
Simple introduction
QT5-20 interlocking cement block making machine produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks,sod bricks, hydraulic blockshollow blocks, perforated bricks, and standard bricks etc.
1,Adjust newest vibration patent technology-double vibration plate with good transiting vibration effect.
2,Compulsory move back and forth material distributing with shift fork can guarantee smooth distributing.
3,Shock excite and hydraulic connecting guarantees products density evenly.
4,Automatic control and PC control lets mechanical vibration and hydraulic match closely guaranteeing high yield and low fault rate.
5,Industrial waste materials like Fly ash, cinder and gangue can be raw material.
Main technical data
NO. |
ITEM |
TECHNICAL DATA |
1 |
Excitation force |
68KN |
2 |
vibration frequency |
5000 PIECE/MINUTE |
3 |
vibration range |
15mm |
4 |
Noise |
95db |
5 |
vibration time |
6s/time |
6 |
size |
3000*2300*2900(mm) |
7 |
power |
26.4KW |
8 |
weight |
8T |
9 |
Max pressure |
10T |
10 |
pallet size |
1100*570*25(mm) |
11 |
operator quantity |
10 peoples |
12 |
land required |
≥4000m2 |
JS Mixer
Interlocking cement block making machine
Vibration system for interlocking cement block making machine
Pallet feeder machine
Brick receiving machine
Moulds
We are manufacturer of interlocking cement block making machine
more than 34 year with ISO9001 &CE,our auto brick machine and concret block making machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
Our interlocking cement block making machine , with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
- Use LG PLC control system and LG Touch Screen,
A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
Our payment terms,
1. We usually accept T.T, or Cash, or L/C, 30% for down payment, 70% pay as balance before loading.
2. It is about 30days to finish all the machines after receive the down payment.
3. We take pictures and videos of finished products, and test all the machines before delivery.
Packaging of our machines:
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.
Delivery of our machines:
1. We have been long term cooperation with many famous shipping agent. Also we can arrange the shipment as your needs.
2. After we get the B/L we will send it to you together with the Sales Contract, Invoice, Packaging List, etc.
If you show interest in our interlocking cement block making machine , you please tell me your cement brick size and brick production, so i can choose machine for you.
Choose Nantong Hengda interlocking cement block making machine bring you wealth easily!
Welcome to visit our factory or website!!
