1.reasonable structure design concrete block making machine price
2,low investment and high profits
3,high efficiency concrete block making machine price
4 PLC control, table vibration

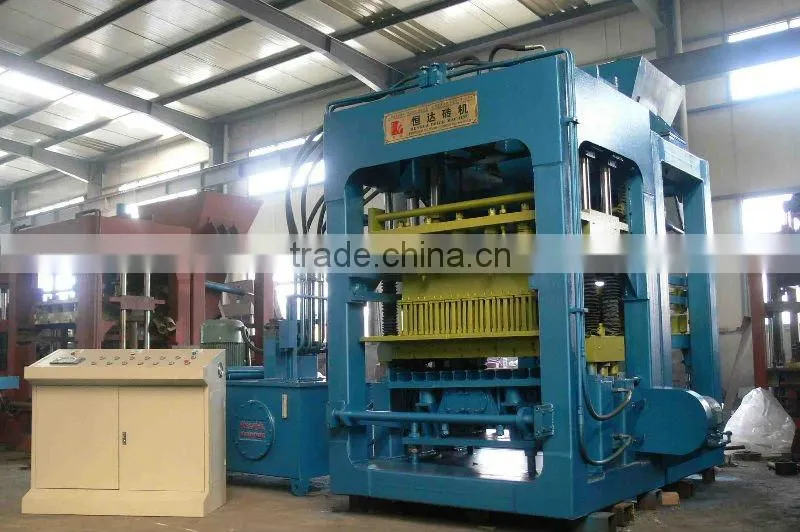

QT10-15 high production concrete hollow block making machine price
1.Introduction:
Concrete block making machine price is a kind of equipment which uses slag, fly ash, stone dust, sand,
gravel, cement and others as raw material, through material proportion, stirring and high-pressure moulding to make many kinds of bricks and blocks. It is also called non-burn brick machine. That’s to say, the finished brick can come into use only through drying by the solar power, no need sintering.
2.Working principle of concrete block making machine price:
This device uses slag, fly ash, sand, gravel, cement and others as raw material, through the stirring in proportion and the molding under high pressure, to complete the block making
3.QT10-15 concrete block making machine price:
This QT10-15 concrete block making machine price is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the paver block machine price utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of price concrete block machine is composed of integrated modular units from Germany and Italy.
The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm
Main Technical Specifications of QT10-15 concrete block making machine price
Production per mould |
10pcs/mould (Hollow block: 390×190×190mm) |
48pcs/mould (Solid block: 240×115×53mm) | |
24pcs/mould (Interlocking block: 225×112.5×60mm) | |
35pcs/mould (Holland brick: 200×100× 60-80mm) | |
Cycle time |
15-25 seconds(Depending on product type) |
Production per shift |
Hollow block (400×200×200mm): 14400-19200pcs |
Solid block (240×115×53mm): 77760-92160pcs | |
Interlocking block: 240×115×90mm): 31104-46080pcs | |
Holland brick (200×100×60-80mm): 40320-50400pcs. | |
Vibration frequency |
2940 -3600rolls/minute or 50Hz |
Vibrating force |
100kN |
Motors power |
48kw |
Volume of hoppers |
Main material: 900L |
Face material: 750L | |
PVC Pallet size |
1100×850×22mm |
Gross weight |
9.0 T (without face mix device) |
12T (with face mix device) | |
Raw materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste. |
Applicable products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied fields |
Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc. |
Some accessories or reference
Batching Plant:This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Block stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Concrete block making machine price:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.
Our payment terms,
1. We usually accept T.T, or Cash, or L/C, 30% for down payment, 70% pay as balance before loading.
2. It is about 30days to finish all the machines after receive the down payment.
3. We take pictures and videos of finished products, and test all the machines before delivery.
Packaging of our machines:
1.Each small part of machine would be packed well, also we would arrange engineer to check each machine parts before delivery, so we can ensure buyer can get complete clay brick machine parts. .
2. Some parts will be given soft protection before feeding in the container to make sure all the machine will be new when arriving at customer hand.
Delivery of our machines:
1. We have been long term cooperation with many famous shipping agent. Also we can arrange the shipment as your needs.
2. After we get the B/L we will send it to you together with the Sales Contract, Invoice, Packaging List, etc.
we are manufacturer of concrete block making machine price more than 34 year with ISO9001 &CE,our auto brick machine and price concrete block machine machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
Our concrete block making machine price, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;

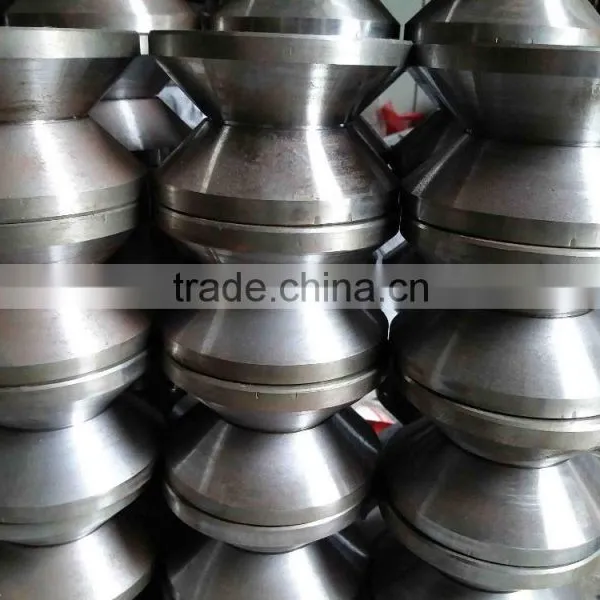

5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
Contact person: Maggie
Mobile: 0086-18921625078(Whatsapp)
Skype: maggie88811
Wechat: blueskyshm
We are clay brick making machine and concrete block making machine price manufacturer, welcome to inspect our factory.
