PLC control, cheap price block maker machine
Hydraulic and electric compents are imported
high production and vibration block maker machine

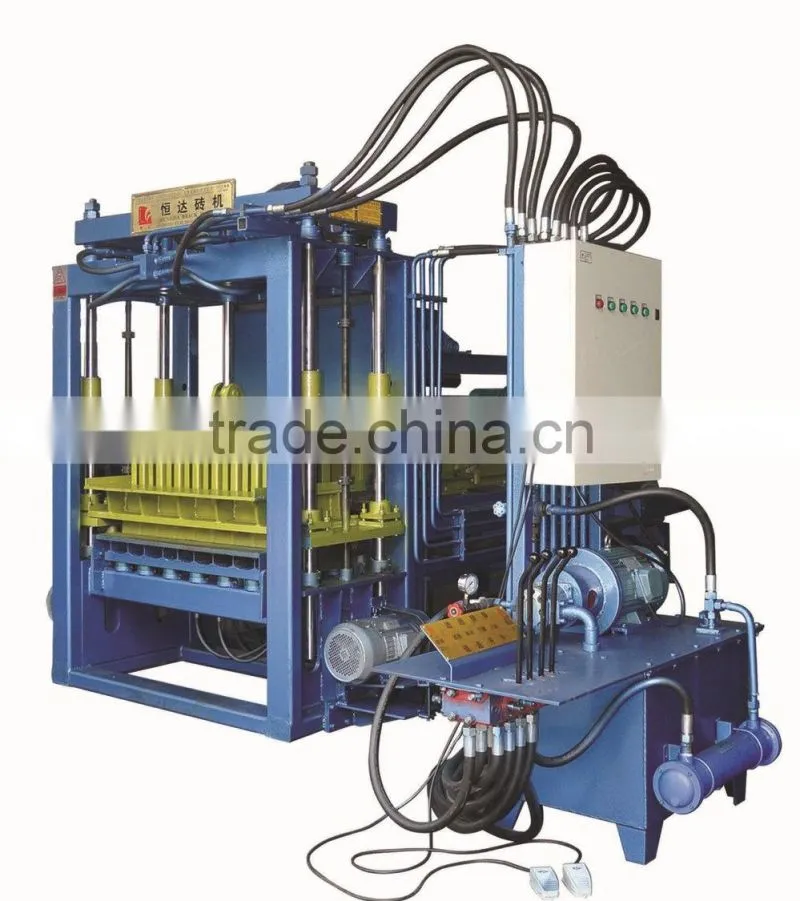

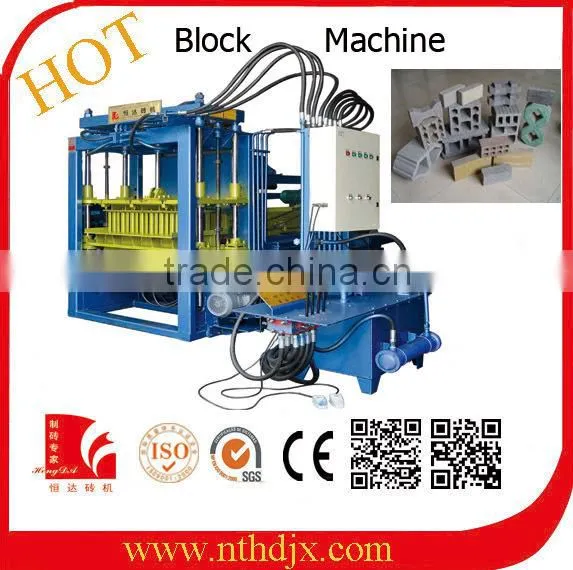

Cheap price concrete cement block maker machine
we are manufacturer of block maker machine more than 34 year with ISO9001 &CE,our auto brick machine and concret block making machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
1.Introduction of block maker machine
Concrete hollow block machine for sale is a kind of equipment which uses slag, fly ash, stone dust, sand, gravel, cement and others as raw material, through material proportion, stirring and high-pressure moulding to make many kinds of bricks and blocks. It is also called non-burn brick machine. That’s to say, the finished brick can come into use only through drying by the solar power, no need sintering.
2. Working principle of block maker machine:
This block maker machine uses slag, fly ash, sand, gravel, cement and others as raw
material,through the stirring in proportion and the molding under high pressure, to
complete the block making.
3. QT5-20 block maker machine characters
1,Adjust newest vibration patent technology-double vibration plate with good transiting vibration effect.
2,Compulsory move back and forth material distributing with shift fork can guarantee smooth distributing.
3,Shock excite and hydraulic connecting guarantees products density evenly.
4,Automatic control and PC control lets mechanical vibration and hydraulic match closely guaranteeing high yield and low fault rate.
5,Industrial waste materials like Fly ash, cinder and gangue can be raw material.
4.Main technical data of QT5-20 block maker machine
NO. |
ITEM |
TECHNICAL DATA |
1 |
Excitation force |
68KN |
2 |
vibration frequency |
5000 PIECE/MINUTE |
3 |
vibration range |
15mm |
4 |
Noise |
95db |
5 |
vibration time |
6s/time |
6 |
size |
3000*2300*2900(mm) |
7 |
power |
26.4KW |
8 |
weight |
8T |
9 |
Max pressure |
10T |
10 |
pallet size |
1100*570*20(mm) |
11 |
operator quantity |
10 peoples |
12 |
land required |
≥4000m2 |
5. Block maker machine product details
350Mixer

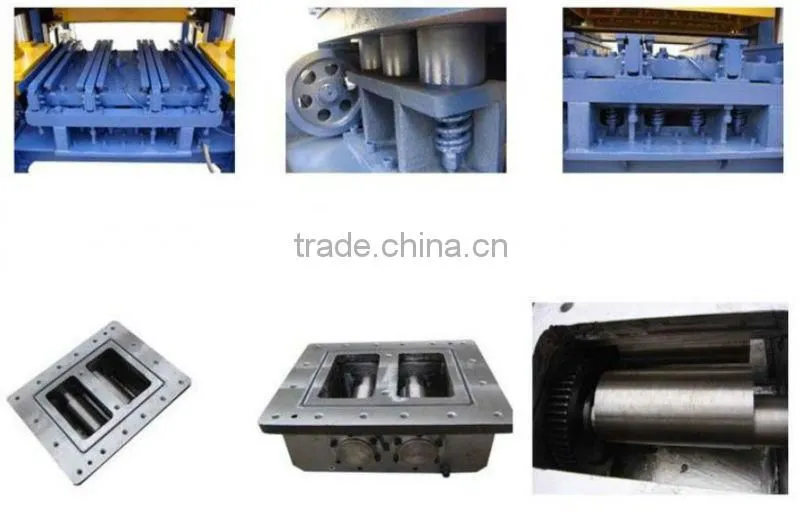

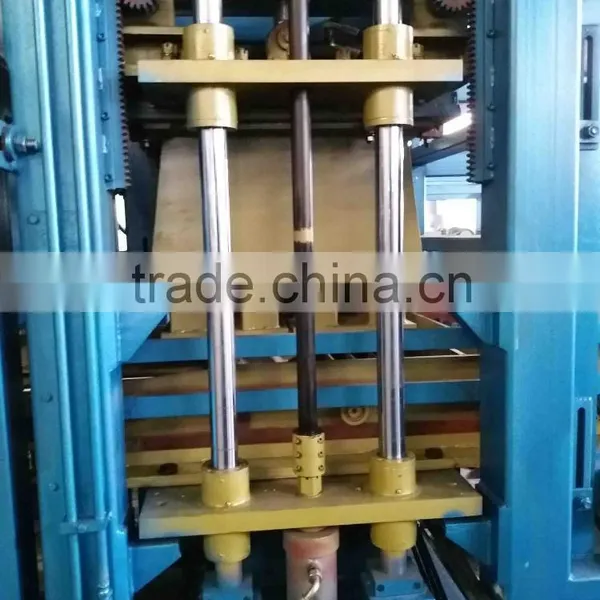

Vibration system for block maker machine
Pallet feeder machine

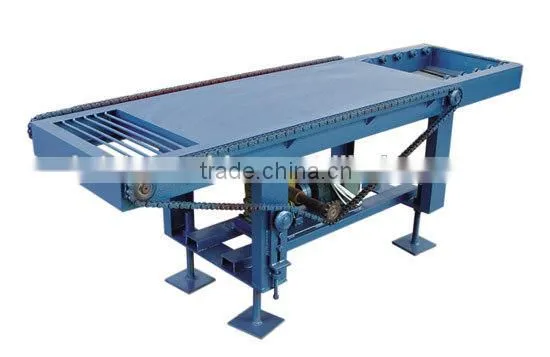

Brick receiving machine

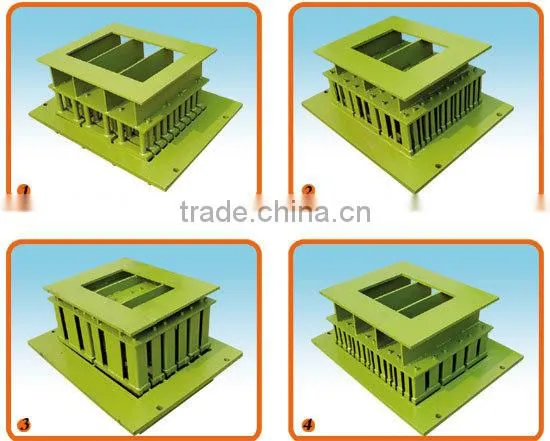

Moulds
we are manufacturer of block maker machine more than 34 year with ISO9001 &CE,our auto brick machine and concret block making machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
Our block maker machine, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;

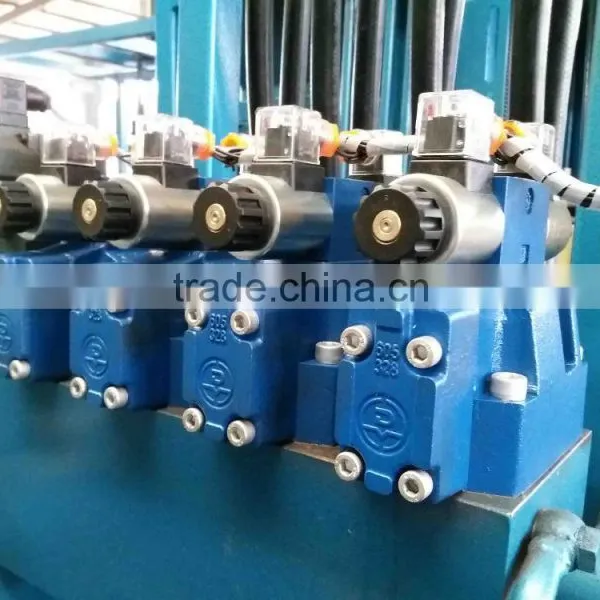

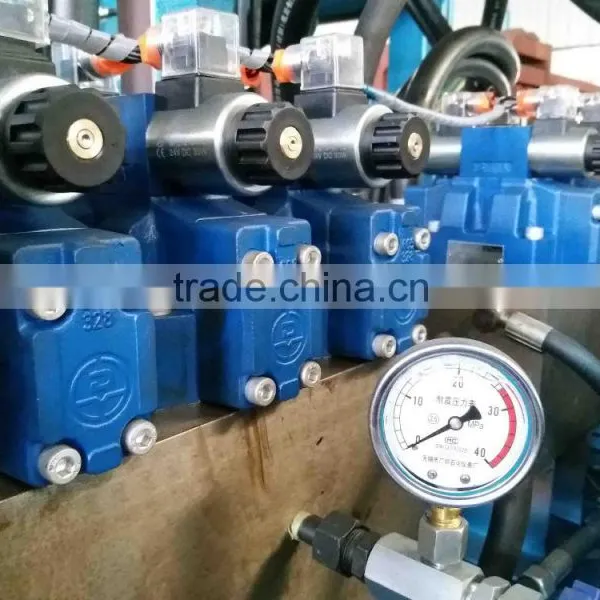

3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;

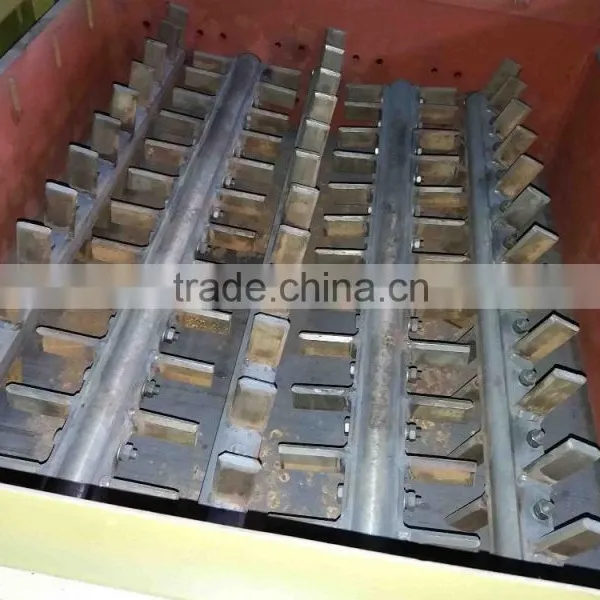

4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
Contact person: Maggie
Mobile: 0086-18921625078
Skype: maggie88811
Wechat: blueskyshm
Anticipating for your inquiry, and we warmly welcome the new and old customers to visit our company.
